Yamaha VXH8B 2-Way 8-inch Pendant Speaker

Home /
Commercial Sound Equipment /
Commercial Audio Speakers /
Pendant & Hanging Speakers /
Yamaha VXH8B 2-Way 8" Pendant Speaker - Black

Description

Details

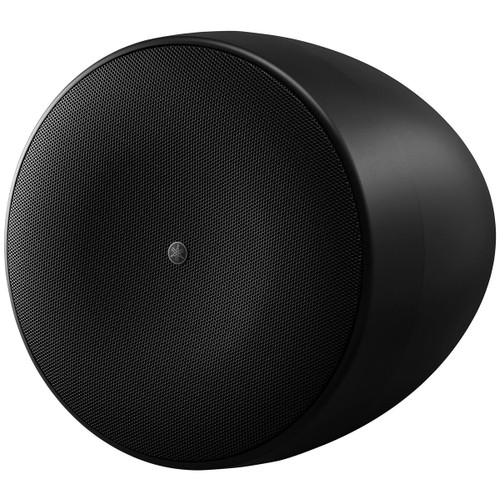

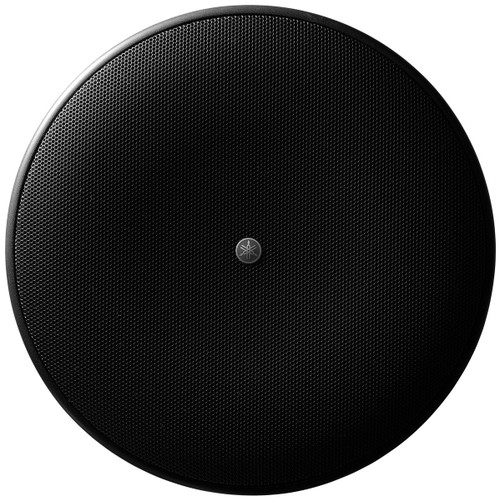

Yamaha VXH8B 2-Way 8" Pendant Speaker - Black

The Yamaha VXH8B is a high-performance 2-way pendant speaker featuring an 8-inch woofer and 1-inch tweeter, delivering powerful 360W output with narrow 75° dispersion for focused sound coverage. Designed for high or sloped ceilings in open-structure spaces, it ensures clear background music and voice reproduction. The VXH8B supports both low-impedance and high-impedance connections, offering installation flexibility, while its paintable magnetic grilles blend seamlessly into any environment. Each unit includes two 6 m steel wire cables by Gripple for secure suspension.

Features

Features

Narrow dispersion (75°) with "permeable" waveguide and 360W power handling
Engineered for optimum BGM and voice reproduction
Pendant speaker suitable for high, open structure or sloped ceilings
Direct support for low-impedance or high-impedance connections

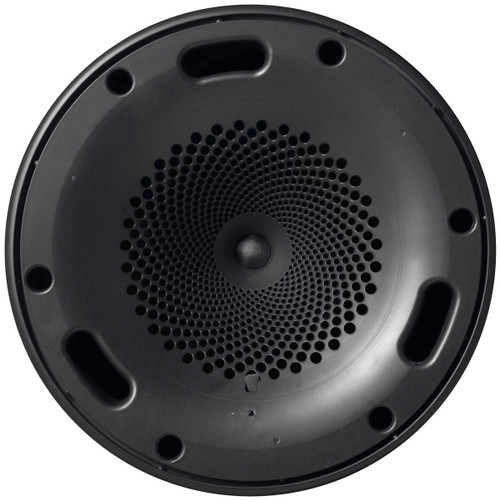

Paintable grilles with magnetic catches
2 x 6 m steel wire cables by Gripple
Black and white versions available
7.2 kg (15.9 lbs), Ø356 x D434 mm (Ø14-1/64" D17-3/32")
Single unit package

Specification

System Type	Coaxial 2 Way, Bass Reflex Type
LF Driver	20 cm Cone
HF Driver	2.5 cm Soft Dome
Frequency Range (-10 dB)	57 Hz – 20 kHz (Full-Space: 4π)
Crossover Frequencies	3 kHz
Nominal Coverage	75° conical (Full-Space: 4π)
Nominal Impedance	8 Ω
Transformer Taps	70V 60 W, 30 W, 15 W, 7.5 W 100V 60 W, 30 W, 15 W
Power Rating	Noise 90 W PGM 180 W Max 360 W
SPL	94 dB (Full-Space: 4π) Sensitivity (1 W; 1 m on axis)
SPL (Peak)	120 dB (Calculated, 1 m)
Dimensions (Dia x D)	14" (356 mm) x 17.09" (434 mm)
Weight	15.9 lbs (7.2 kg)
