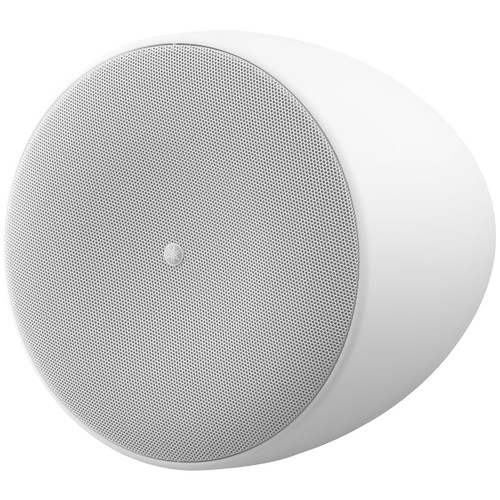

The Yamaha VXH8W is a high-performance 2-way pendant speaker featuring an 8-inch woofer and 1-inch tweeter, delivering powerful 360W output with narrow 75° dispersion for focused sound coverage. Designed for high or sloped ceilings in open-structure spaces, it ensures clear background music and voice reproduction. The VXH8W supports both low-impedance and high-impedance connections, offering installation flexibility, while its paintable magnetic grilles blend seamlessly into any environment. Each unit includes two 6 m steel wire cables by Gripple for secure suspension.
| System Type | Coaxial 2 Way, Bass Reflex Type |
|---|---|
| LF Driver | 20 cm Cone |
| HF Driver | 2.5 cm Soft Dome |
| Frequency Range (-10 dB) | 57 Hz – 20 kHz (Full-Space: 4π) |
| Crossover Frequencies | 3 kHz |
| Nominal Coverage | 75° conical (Full-Space: 4π) |
| Nominal Impedance | 8 Ω |
| Transformer Taps | 70V 60 W, 30 W, 15 W, 7.5 W 100V 60 W, 30 W, 15 W |
| Power Rating | Noise 90 W PGM 180 W Max 360 W |
| SPL | 94 dB (Full-Space: 4π) Sensitivity (1 W; 1 m on axis) |
| SPL (Peak) | 120 dB (Calculated, 1 m) |
| Dimensions (Dia x D) | 14" (356 mm) x 17.09" (434 mm) |
| Weight | 15.9 lbs (7.2 kg) |
