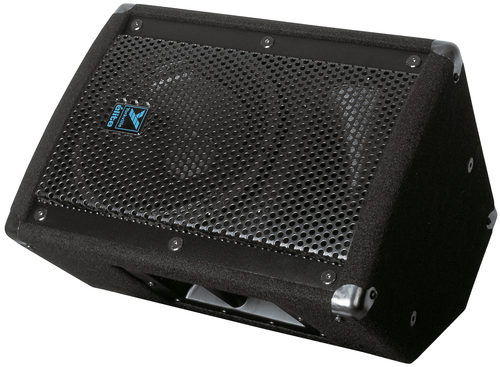

The E10P is an advanced, compact two-way active loudspeaker designed for a wide variety of pro-audio applications. Innovative processing is built-in to ensure optimum performance and clarity.
Built for maximum versatility, the E10P input section will easily handle microphone or line level inputs through the XLR / TRS Combi-jack. Bass and Treble EQ in addition to Level control and a Mic/Line input gain selector ensure the E10P can handle virtually any audio source. A Live/Playback EQ preset selector, a 100 Hz / 50 Hz low-frequency Roll-off selector (no crossover needed for subs), a full-time Limiter with LED indicator, a Clip LED, a Link output ensure the E10P can adapt easily to any audio application including use as a front-of-house PA loudspeaker, as a personal wedge monitor or as a single unit micro PA for a paging and playback system (no additional mixer required).
A lightweight, low-noise 300 W Class-D amplifier drives the low frequency 10" woofer while a two-tier 50 W amplifier capable of delivering an exceptionally clear and linear high-frequency response powers the 1" horn. An on-board active DSP based crossover ensures that the woofer and horn operate optimally while protecting the high quality speaker components.
The E10P features a powerful yet lightweight 10" low-frequency driver with a neodymium magnet, a silky-smooth 1" horn and driver and an enclosure built from voidless 5/8" (15 mm) multi-ply Baltic birch for light weight with classic Elite ruggedness. That durability is engineered into the multi-angle enclosure pioneered for the Elite line that enables the E10P to operate vertically on a stand or horizontally as a stage monitor. For added convenience, the E10P easily converts between 120 VAC, 230 VAC or 240 VAC.- Features
Features
- Integrated 650 W Amplifier (Peak - 325 W Program)
- 10" Woofer / 1" Compression Driver
- Max SPL 129 dB Peak (123 dB Continuous)
- Bi-Amplified Power Module
- Designed for Front-of-House or Monitor Applications
- 100° x 25° Horn with Peak and Average Horn Protection
- Two Band EQ with LF Roll-Off and Live/Playback Mode Switches
- Combi-Jack XLR and 1/4" Input
- Integrated All Metal Speaker Standmount Adaptor
- Solid 5/8" (15 mm) Birch Plywood Construction
- Specification
Active or Passive Active Program Power 350 W (650 W Peak) Biampable Internally Biamped Frequency Response 65 - 20k Hz +/- 3db Crossover Frequency 1500 Hz Driver Configuration 10" / 1" HF Program Power 50 W HF Impedance 8 Ohms HF Dispersion 100 x 25 (°H x °V) HF Protection Peak and Average Limiting LF Program Power 300 W LF Impedance 4 (Ohms) LF Protection Excursion, RMS Total Power 350 W Cooling Scheme Convection Power Cable Removable IEC Power Consumption 120 VA / 200 VA typ/max Inputs 1 Combijack (XLR / 1/4") Input Impedance (Bal/UnBal) 4k ohms / 2k ohms Input Sensitivity (Vrms Sine) Line in 1.4 at center, 0.35 at max Level Controls Gain EQ Controls Bass, Treble Limiter Peak and Average limiting on horn and woofer LED Indicators Power, Clip Corners Metal Feet Plastic Glides Flying Hardware 5 (2 Top, 2 Bottom, 1 Pullback) Bar Handles One Side Pole Mount Adapter 1 3/8" (3.5 cm) Enclosure Materials 5/8" (15 mm) 11-ply Russian Birch Port(s) Rear Grille Perforated Metal Covering / Finish Black Ozite (Carpet) Optional Covering / Finishes Black Ultrathane Paint (E10PB) Dimensions (H x W x D) 18.5" (450 mm) x 12" (300 mm) x 13" (330 mm) Weight 34 lbs (15.5 kg) - Reviews
