The Yorkville EL21S Elite Series is a 21" powered subwoofer delivering 3600W peak power with deep bass extension to 32 Hz. Featuring a dual 4.5" voice coil neodymium driver, onboard limiting, and rugged birch construction, it is built for high-output professional sound systems.

Description

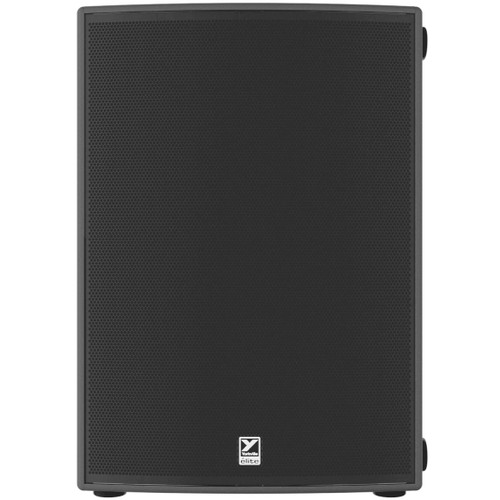

Yorkville EL21S 21-Inch Powered Subwoofer

The EL21S Elite Series is Yorkville's flagship large-format powered subwoofer, engineered for maximum low-frequency impact in demanding professional sound environments. Equipped with a massive 21" neodymium woofer and dual 4.5" voice coils, it delivers exceptional air movement and control, producing tight, powerful bass that extends down to 32 Hz.

With 3600 watts of peak power and 2400 watts of program power, the EL21S is designed to handle extreme output levels while maintaining clarity and precision. An integrated onboard limiter ensures safe operation and consistent performance even under heavy load, making it ideal for touring, large venues, and high-energy live productions.

Built from rugged 15 mm birch plywood, the EL21S is designed for durability and acoustic integrity in professional applications. It features flexible connectivity with dual XLR inputs, full-range parallel outputs, and high-pass outputs for seamless system integration. Pole mount adapters on the top and side provide additional versatility when deploying full-range systems above the sub.

Features

  • 3600W peak powered 21" subwoofer for extreme low-frequency output
  • Massive 21" neodymium driver with dual 4.5" voice coils for high efficiency
  • Deep bass extension down to 32 Hz for impactful sub-bass performance
  • Onboard limiter ensures clean, controlled output at high SPL levels
  • Dual XLR inputs with full-range parallel signal routing
  • High-passed XLR outputs for easy system integration
  • Rugged 15 mm birch plywood cabinet built for touring durability
  • Pole mount adapters on top and side for flexible deployment
  • Designed for large venues, touring systems, and professional live sound
  • Made in Canada for premium reliability and build quality

Specifications

System Type Powered Subwoofer
Power Rating 3600W Peak (2400W Program)
Max SPL 142 dB Peak (136 dB Continuous)
Frequency Response 32 Hz - 100 Hz (+/- 3 dB)
Crossover Frequency 100 Hz
LF Driver(s) 21" Neodymium with Dual 4.5" Voice Coils
Power Cable powerCON TRUE1 Connectors (Input/Output)
Power Consumption (typ/max) 6.5A, 12A
Inputs 2x Combo-jack (XLR/1/4" TRS)
Outputs 2x XLR High-Pass
2x XLR Link (Full Range)
Level Controls Yes
LED Indicators Power, Activity, Protection
Wheels 2x Rigid Casters, 2x Swivel Casters
Bar Handles 1x Top, 4x Side, 1x Bottom
Flying Hardware No
Pole Mount Adapter 1x Top, 1x Side
Enclosure Materials 15 mm Birch Plywood
Grille Powder-Coated Steel
Covering/Finish Textured Paint
Dimensions (H x W x D) 36" (914.4 mm) x 25.9" (657.86 mm) x 31.2" (792.48 mm)
Weight 197.50 lbs (90 kg)
