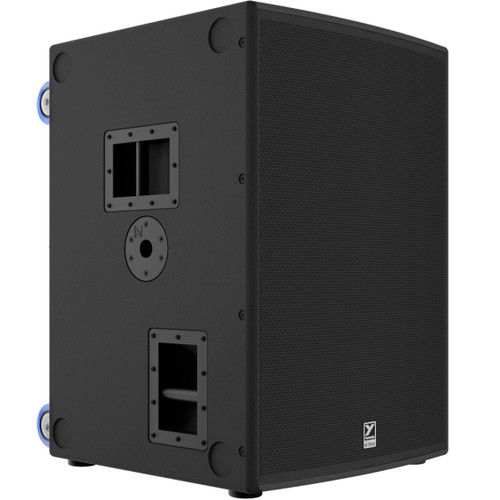

Yorkville EL18S Elite Series 18" 3200W Powered Subwoofer

Part #:
EL18S
Model #:
EL18S
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL
The Yorkville EL18S Elite Series is an 18" powered subwoofer delivering 3200W peak power with deep bass extension down to 35 Hz. Featuring a 4" voice coil driver, onboard limiting, and rugged birch plywood construction, it is built for high-output professional sound reinforcement.

Description

Yorkville EL18S 18-Inch Powered Subwoofer

The EL18S Elite Series is a high-performance 18" powered subwoofer designed to deliver powerful, deep, and controlled low-frequency output for demanding professional audio applications. With 3200 watts of peak power and a 1600-watt program rating, it extends bass response down to 35 Hz, making it ideal for live sound, touring systems, and installed PA environments.

Equipped with a 4" voice coil woofer and onboard limiter, the EL18S ensures clean, distortion-free performance even at high output levels. Its rugged 15 mm birch plywood enclosure is built for durability on the road while maintaining excellent acoustic integrity.

Designed for flexible system integration, the EL18S features dual XLR inputs with full-range parallel outputs and high-pass outputs for seamless system linking. With pole mount adapters on both the top and side, it easily integrates with full-range systems, making it a versatile low-frequency solution for professional sound reinforcement.

Features

  • 3200W peak powered 18" subwoofer for high-output bass reinforcement
  • 18" woofer with 4" voice coil for deep, powerful low-frequency response
  • Extends low-end performance down to 35 Hz for impactful bass
  • Onboard limiter ensures clean, distortion-free output at high levels
  • Dual XLR inputs with full-range parallel signal routing
  • High-passed XLR outputs for easy system integration
  • Rugged 15 mm birch plywood enclosure built for touring reliability
  • Pole mount adapters on top and side for flexible deployment
  • Designed for professional live sound and installed audio systems
  • Made in Canada for premium build quality and performance

Specifications

System Type Powered Subwoofer
Power Rating 3200W Peak (1600W Program)
Max SPL 140 dB Peak (134 dB Continuous)
Frequency Response 35 Hz - 100 Hz (+/- 3 dB)
Crossover Frequency 100 Hz
LF Driver(s) 18" with 4" Voice Coil Ceramic Magnet
Power Cable powerCON TRUE1 Connectors (Input/Output)
Power Consumption (typ/max) 4A, 10A
Inputs 2x Combo-jack (XLR/1/4" TRS)
Outputs 2x XLR High-Pass
2x XLR Link (Full Range)
Level Controls Yes
LED Indicators Power, Activity, Protection
Wheels 2x Rigid Casters, 2x Swivel Casters
Bar Handles 1x Top, 4x Side, 1x Bottom
Flying Hardware No
Pole Mount Adapter 1x Top, 1x Side
Enclosure Materials 15 mm Birch Plywood
Grille Powder-Coated Steel
Covering/Finish Textured Paint
Dimensions (H x W x D) 35.7" (906.78 mm) x 25.7" (652.78 mm) x 24.8" (629.92 mm)
Weight 137 lbs (62 kg)
