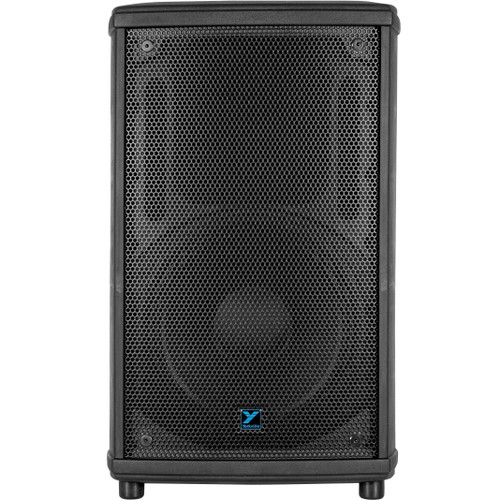

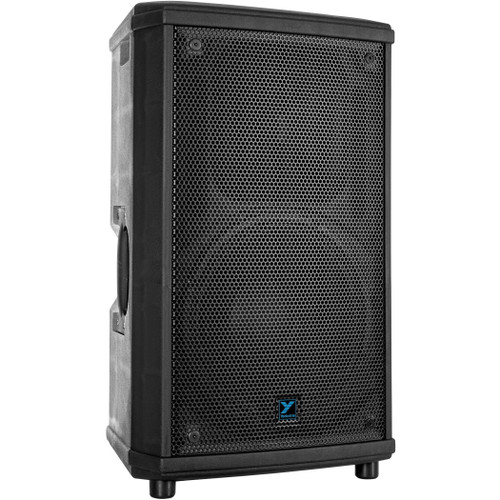

Yorkville NX25P-2 12-Inch 2-Way Powered Loudspeaker
The NX25P-2 is a professional 12-inch 2-way powered loudspeaker built for reliable performance in live sound, portable PA, and installed applications. Part of the trusted NX Series, it delivers 600 watts peak (300W program) power with high headroom and clean transient response, making it ideal for front-of-house or stage monitor use.
The NX25P-2 combines a Class A/B amplifier for the high-frequency horn with a two-tier, high-efficiency Class H amplifier for the low frequencies. This hybrid design ensures powerful output, reduced heat, and consistent performance even in demanding environments. A 12" low-frequency driver with a 3" voice coil and a 1" high-frequency driver provides balanced, full-range sound.

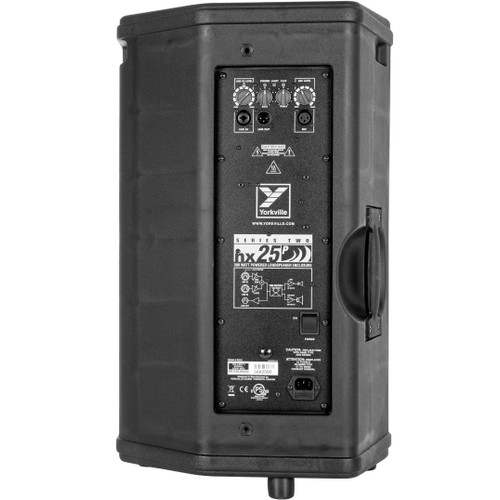

The rear panel features a Combi-Jack line input, a dedicated XLR mic input with independent level controls, and a balanced XLR link output for connecting multiple speakers. A 2-band master EQ allows quick tonal adjustments, while integrated flying hardware and rugged construction make the NX25P-2 adaptable for portable or installed setups. Proudly made in Canada, it continues Yorkville's legacy of road-tested reliability.
- Features
Features
- 600W peak (300W program) powered 12" 2-way loudspeaker
- 12" LF driver with 3" voice coil + 1" HF driver
- Class A/B (HF) and Class H (LF) amplification for high headroom
- 1x Combi-Jack line input + 1x XLR mic input with level controls
- 1x balanced XLR link output for speaker arrays
- 2-band master EQ for quick system tuning
- Integrated flying hardware for installation
- Designed for FOH or stage monitor use
- Specification
System Type 2-way Powered or Passive Powered Program Power (watts) 600 watts peak, 300 watts program Max SPL (dB) 120 dB continuous Frequency Response 55 - 18k (Hz +/-3 dB) Crossover Frequency (Hz) 3 kHz LF Woofer 12" HF Driver(s) 1.4" (1-inch exit) HF Dispersion (°H x °V) 80° x 50° Power Cable Yes (Detachable IEC) Mixer Controls Mic Gain, Line In Gain Level Controls Main Volume EQ Controls Bass & Treble Inputs 1x Combi-jack (Line input)
1x XLR (Mic Input)
1x XLR (link in/out)Flying Hardware 2x Top, 2x Bottom
1x Pullback
1/4-20 ThreadingOptional Flying Hardware NXF Flyware Bar Handles 1x Side Pole Mount Adapter 1 Bottom (1 3/8-inch/3.5 cm) Enclosure Materials Molded Polypropylene Grille Powdered Coated Perforated Steel Dimensions (H x W x D) 26.5" (673.1 mm) x 16" (406.4 mm) x 12.25" (311.15 mm) Weight 39 lbs (17.6 kg) - Documents
