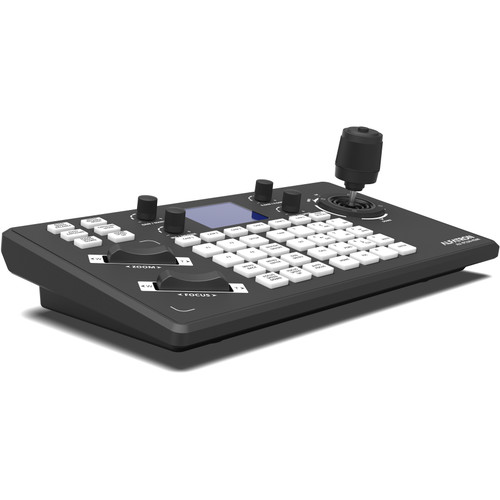

Alfatron ALF-IPCON-HDMI PTZ Camera Controller
The ALF-IPCON-HDMI is an IP and serial PTZ camera controller with HDMI preview output of the selected camera stream. It features six quick-select camera buttons and four user-defined buttons, with IP, RS-232, and RS-422 connection interfaces. The controller supports IP VISCA, VISCA, and NDI protocols, up to 255 individual camera presets, and scene and group presets.
Connects to up to 255 cameras via either analog or network mode. It supports various control protocols, allowing each numbered camera to use its own control protocol. Network protocols include ONVIF, VISCA over IP (UDP), VISCA over IP (TCP), Sony VISCA, and NDI. Analog protocols include VISCA, Pelco-D, and Pelco-P. The network interface supports PoE using the IEEE 802.3af standard.
The controller features a four-axis joystick for precise pan and tilt control, enabling simultaneous horizontal, vertical, and zoom movements. It also provides independent control of camera zoom and focus, with eight speed levels for adjusting zoom and focus speed. A PC can connect for web-based control, allowing device configurations to be imported or exported, camera settings to be added or modified, and device upgrades to be performed.
The HDMI output provides a real-time preview of compatible network camera video on a connected display at up to 1080p/30. Cameras using analog control protocols cannot output video through this HDMI preview connection. Front-panel buttons and a display screen provide direct camera control.
Most Alfatron products come with a 7-year limited warranty. Register your product with Alfatron to receive an additional 3-year extended warranty on eligible products, for 10 years of total coverage.
