Inside the Design
This 70V outdoor sound system provides superior audio for oceanfront restaurants, beach resorts, and commercial establishments. It includes 4 Atlas Sound SM82T 8" 2-way all-weather surface mount loudspeakers and 8 Atlas Sound SM63T 6.5" 2-way all-weather surface mount loudspeakers, delivering clear and dynamic sound. Choose from black or white speakers to suit your environment. The system is powered by the Pure Resonance Audio DA2500 500W dual-impedance power amplifier and features the Pure Resonance Audio MX84 4-zone 8-channel mixer for flexible audio control. The MX8-PM push-to-talk microphone provides clear announcements, and the Tascam CD-400U media player with Bluetooth, CD, USB, and AM/FM capabilities ensures versatile playback. Weather-resistant components guarantee reliable outdoor performance, while flexible installation options ensure optimal sound coverage.
Sound System Features:
- Custom-designed 70V sound system for seamless integration in outdoor environments
- Clear, dynamic sound ideal for restaurants, bars, cafes, and patios
- Includes (12) weather-resistant loudspeakers for consistent audio coverage
- 4-zone 8-channel mic/line mixer for flexible audio control in different areas
- 500W dual-impedance amplifier with 70V/100V support for distributed audio systems
- Bluetooth media player with CD, SD, USB, and FM radio playback
- Paging mic for easy communication and announcements throughout the venue
- Easy-to-install components with durable, all-weather protection
- Reliable performance for year-round use, even in harsh conditions
About the System Components

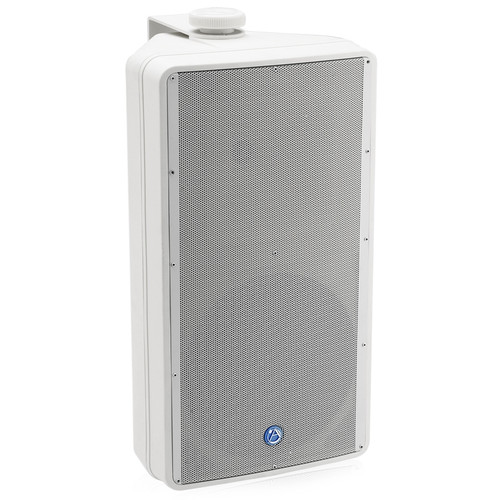

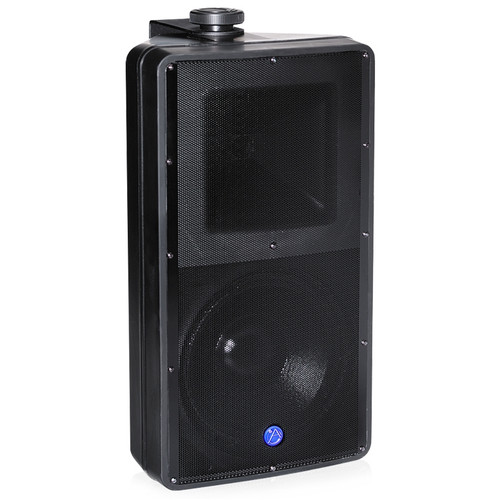

Atlas Sound SM82T 8" 2-Way All-Weather Surface Mount Loudspeakers
The Atlas Sound SM82T is a weather-resistant loudspeaker designed for both indoor and outdoor commercial use. Equipped with a titanium compression driver and a highly efficient 8" woofer, this speaker offers outstanding sound clarity and durability. The speaker features UV-resistant, salt spray-tested materials, ensuring reliable performance in harsh outdoor environments. The 60W adjustable 70V/100V transformer allows for versatile installations.

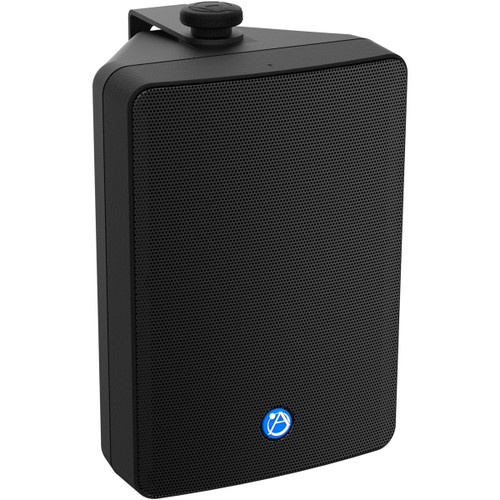

Atlas Sound SM63T-B 6.5" 2-Way All-Weather Surface Mount Loudspeakers
The Atlas Sound SM63T-B is a compact, weather-resistant loudspeaker featuring a 6.5" polypropylene woofer and a 20mm FerroFluid™ cooled titanium dome tweeter. Designed for both indoor and outdoor use, this speaker offers exceptional sound clarity and durability. With its 32W adjustable 70V/100V transformer and rugged enclosure, it is perfect for distributed sound applications in various commercial environments.

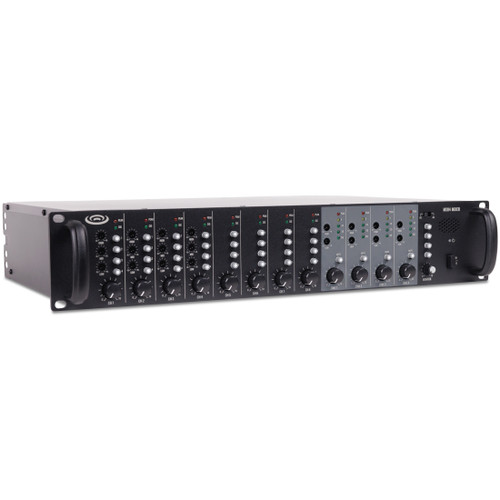

Pure Resonance Audio MX84 4-Zone 8-Channel Rack Mount Mic/Line Mixer
The Pure Resonance Audio MX84 is a versatile 4-zone, 8-channel mic/line mixer designed for professional installations. It features balanced inputs with individual volume controls, a 3-band equalizer for enhanced sound customization, and priority muting for paging applications. Its rack-mountable design allows for easy integration into commercial sound systems.
Pure Resonance Audio DA2500 Dual-Impedance 500W Rack Mount Power Amplifier
The Pure Resonance Audio DA2500 is a high-performance 500W power amplifier designed for distributed audio systems. It supports both low-impedance (4Ω/8Ω) and 70V/100V speaker configurations, making it ideal for a wide range of commercial applications. The DA2500 features advanced protection circuitry to ensure safe and reliable operation, and its 2U rack-mountable design makes it a versatile and space-efficient choice for any professional audio setup.

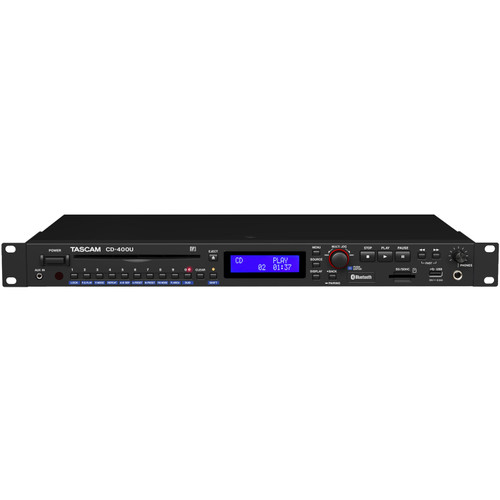

Tascam CD-400U CD and Media Player with Bluetooth & AM/FM Tuner
The Tascam CD-400U is a versatile media player that offers CD, SD, USB, AM/FM radio, and Bluetooth connectivity. It's designed for professional audio applications, allowing for easy playback from various sources. The CD-400U also includes features such as automatic playback upon power-up, real-time recording to SD/USB, and remote control via RS-232C or Ethernet. It's the ideal choice for installations that require multi-source media playback and seamless integration with other audio components.

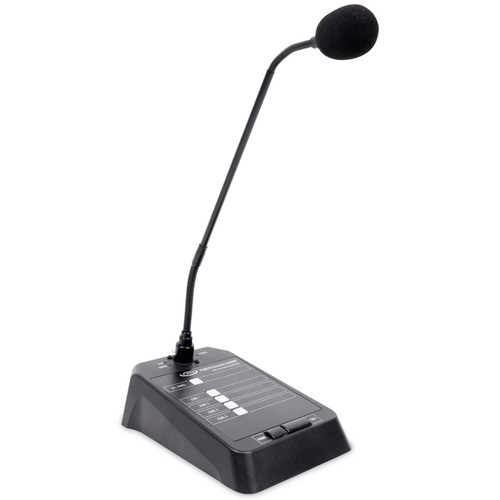

Pure Resonance Audio MX8-PM Push-To-Talk Zone Paging Microphone
The Pure Resonance Audio MX8-PM is a high-quality push-to-talk zone paging microphone designed for commercial environments. Its flexible gooseneck allows for precise microphone positioning, and the LED status indicator ensures clear communication. The MX8-PM is compatible with zone mixers and amplifiers, making it an excellent choice for paging and announcement systems in restaurants, bars, and other venues.
