Inside the Design
This Pure Resonance Audio all weather speaker system is ideal for background and foreground music, paging, and public address in stadiums, gymnasiums, sports facilities, arenas, theme parks, public swimming pools, warehouses, factories, and a wide variety of other indoor or outdoor commercial applications. Provides remarkable voice and music reproduction with wide 90° x 90° coverage from each IP66 rated S10 weatherproof loudspeaker. Includes a 4-zone Bluetooth mixer amplifier to cover one or up to four different areas with a paging microphone capable of paging a single zone, group of zones, and/or all zones.
Sound System Features:
- Highly weatherproof IP66 rated stadium speakers with 200W of continuous power handling and 90° x 90° dispersion
- Provides ideal coverage of more than 3000 sq. ft. and up to 650ft for direct speech from each speaker
- A heavy-duty wall mounting bracket is included with each speaker for a quick, safe, and secure installation
- The RZMA240BT is equipped with built-in MP3, FM tuner and Bluetooth capabilities
- RZMA240BT features matrix technology, letting you route up to 5 separate inputs to 4 distinct zones
- The remote PMZ16 paging microphone with 4 zone capacity is designed for use with the RZMA mixer amplifiers only
- PMZ16 microphone is capable of paging a single zone, a group of zones, and/or all the zones
About the System Components
Pure Resonance Audio S10 10" Loudspeakers

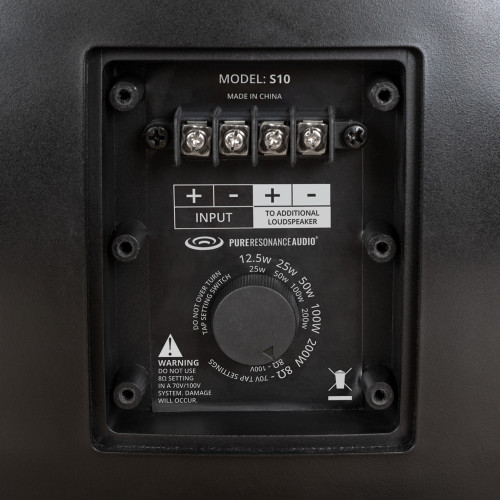

The Pure Resonance Audio S10 10" compact two-way coaxial full-range all-weather outdoor stadium loudspeaker offers superior voice and music reproduction with a wide 90° x 90° coverage angle from a durable construction. IP66 rated for long-lasting reliability in harsh environmental conditions, this highly weatherproof speaker is dust-tight and protected against direct high-pressure water. With a fiber-reinforced plastic and metal enclosure, and a built-in 200W 70V/100V multi-tap transformer with an 8-ohm bypass, the S10 is specially engineered for installation in outdoor commercial environments with the included wall mount bracket for easy mounting.
Pure Resonance Audio RZMA240BT 4 Zone Bluetooth Mixer Amplifier
The RZMA240BT 4-zone commercial mixer amplifier is a versatile solution with 240W power output per zone and 4 ohms, 70-volt, and 100-volt terminals. Featuring a built-in MP3 player, FM tuner, Bluetooth streaming, XLR/TRS, and dual RCA inputs, the RZMA240BT offers a comprehensive range of audio sources. A remote mic input is also available to connect the optional PMZ16 remote microphone via Cat5 for zone paging. Additionally, a telephone signal input port allows seamless integration with existing phone systems, while a dedicated monitor channel facilitates zone monitoring. This multi-zone mixer amplifier includes an IR remote for volume and source control. The advanced matrix technology enables easy assignment of the four-zone selectable inputs to a single zone or across multiple zones with the simple push of a button. The RZMA240BT delivers exceptional flexibility and performance in various commercial environments, including hotels, shopping malls, sports centers, entertainment venues, houses of worship, schools, retail spaces, restaurants, and meeting/conference spaces.
Pure Resonance Audio PMZ16 Paging Microphone Station
The Pure Resonance Audio PMZ16 remote microphone station with 16" push-to-talk goose-neck condenser microphone is capable of paging a single zone, group of zones, and/or all zones. The PMZ16 paging microphone station can also be connected to the Pure Resonance Audio RZMA240BT multi-zone mixer amplifier, with the maximum shielded CAT5 length between microphone paging station and mixer amplifier not exceeding 500 feet. This microphone station can be daisy-chained (4 max) via a shielded CAT5 for zone paging and chimes (1-4) and is a great addition for any 70V outdoor speaker system.
