Inside the Design
This outdoor stadium sound system provides high-quality music and superior voice reproduction across up to four fields or zones. It includes four S10 10" 70V outdoor loudspeakers designed to deliver powerful, clear audio in open spaces. The RZMA120BT 120-watt multizone Bluetooth mixer amplifier allows for flexible control over multiple areas, ensuring balanced sound coverage. The PRA PTT1 push-to-talk microphone enables reliable paging and announcements, making it easy to communicate with players, staff, and spectators. Built for durability and performance, this system is ideal for multiple baseball fields, football stadiums, soccer fields, outdoor arenas, or complete athletic complexes, providing clear and consistent audio for any event.
Sound System Features:
- Highly weatherproof IP66 rated baseball stadium speakers with 200W of continuous power handling and 90° x 90° dispersion
- Up to 200-watts of continuous power handling and a 90° x 90° dispersion pattern produce an ideal coverage of more than 3000 sq. ft. and up to 650ft for direct speech
- A heavy-duty wall mounting bracket is included with each speaker for a quick, safe, and secure installation
- The easy-to-operate RZMA120BT is equipped with built-in Bluetooth, MP3, FM tuner, and recording capabilities. The zone-selectable inputs allow you to assign audio to any output
- The RZMA120BT is equipped with 4 ohms, 70 Volt and 100 Volt terminals and has 4 separate channels at 120W each
- The PTT1 push-to-talk tabletop microphone is ideal for paging, announcements, and general public address applications
About the System Components

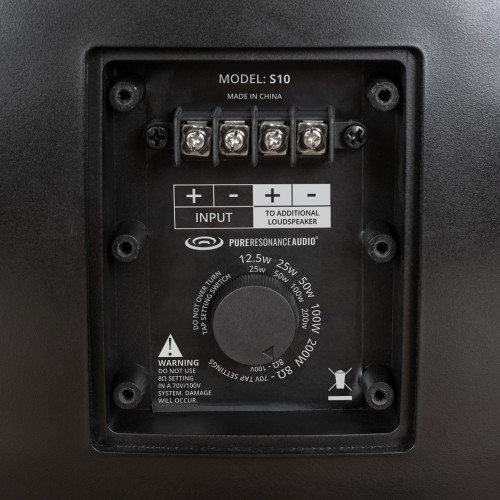

Pure Resonance Audio S10 10" Loudspeakers
The Pure Resonance Audio S10 10" outdoor weatherproof stadium loudspeaker is built to withstand exposure to the harshest environmental conditions of outdoor installations while delivering high-quality audio performance. A tough fiber-reinforced plastic and metal housing with a metal grill maintains solid durability and long service life. IP66 rated, this highly weather-resistant speaker is fully protected against dust or dirt particles and direct high-pressure water. The S10 is an ideal solution for background and foreground music, paging, and public address in stadiums, ball fields, sports facilities, athletic centers, arenas, and a wide variety of other challenging indoor and outdoor commercial applications.
Pure Resonance Audio RZMA120BT 4 Zone Bluetooth Mixer Amplifier
Powerful and feature-packed, the Pure Resonance Audio RZMA120BT is a 4 zone commercial mixer amplifier equipped with built-in MP3, FM tuner, Bluetooth and recording capabilities. The advanced multi-input audio mixer amplifier features matrix technology, letting you route up to 5 separate inputs to 4 distinct zones. Ideal for multi-zone paging, music distribution, and room-combining applications, each input is also supplied with separate bass, treble and volume control for precise sound in each individual zone. It is also equipped with zone-selectable inputs, meaning that an input can be assigned to any output. You simply push a button to route your inputs to the appropriate outputs, no programming or tuning required.

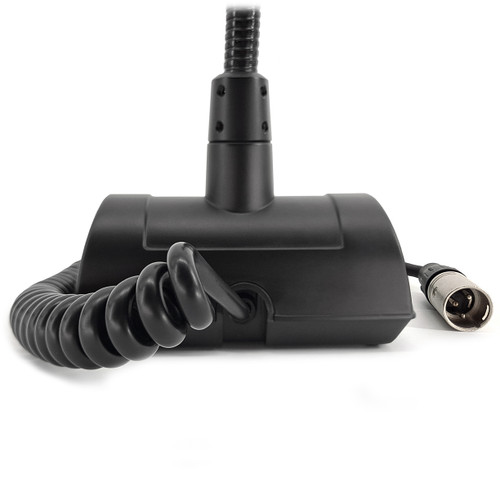

Pure Resonance Audio PTT1 DESKTOP PUSH-TO-TALK GOOSENECK MICROPHONE
The Pure Resonance Audio PTT1 desktop push-to-talk microphone provides excellent performance and reliability, ideal for paging and announcements in your outdoor commercial sound system. The PTT1 features a uni-directional dynamic gooseneck microphone, table-stand, dual momentary locking switch, 5-foot cable, and three-pin male XLR connector. The durable gooseneck and metal table-stand ensure this push-to-talk paging microphone can withstand even the toughest daily use in tough environments.
