Allen & Heath PA12 12 Channel Stereo Live Mixer (Discontinued)

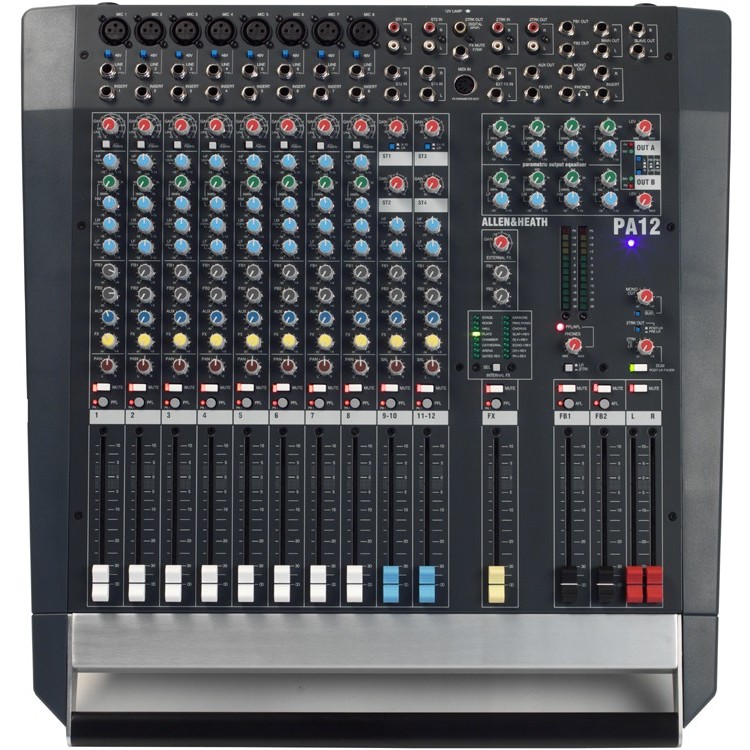

The Allen & Heath PA12 12 Channel Stereo Live Mixer is an essential addition to any band, school, theatre, or hire inventory. The control surface is laid out in an uncomplicated format and the operator can easily see all connections for patching. Pre-fade sends (FB) and post-fade sends (FX) are clearly labelled and colour coded, and there are generous 100mm fader masters with a LED mute button, identical to the channel controls. There is a selection of 16 digital FX to complete the professional design.

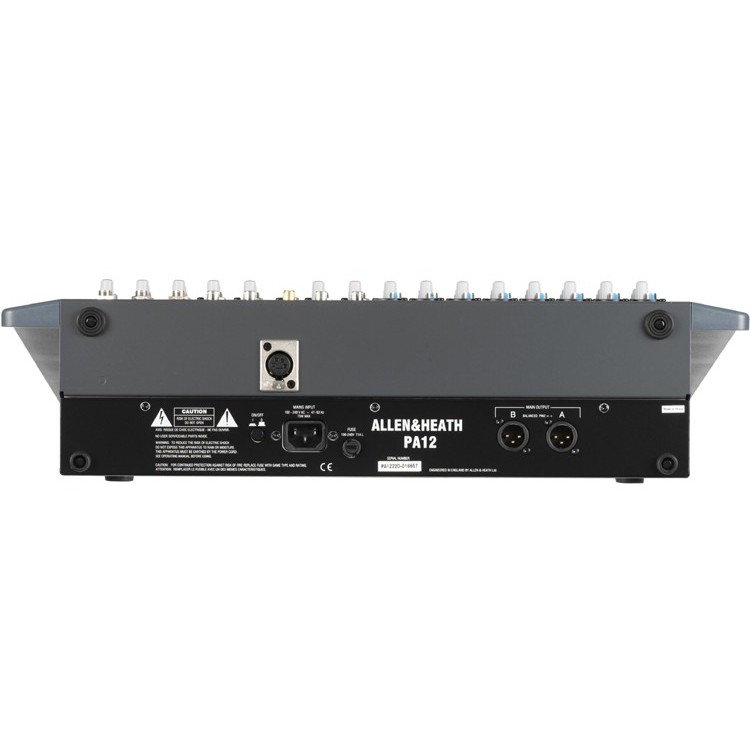

It features 2 dual stereo channels with RCA and TRS connectors and independent gain controls are included for FX returns and stereo sources, such as CD players and backing tracks. The RCA inputs can feed straight to LR, so providing extra returns. The stereo channels are furnished with 2 band EQ, and can be routed to all 4 auxiliary sends. The main XLR outputs derive their source from a selectable combination of LR (stereo), L+R (mono), FB1 and FB2, and provide master level trim, meters, slave outputs, patch point for external processors, and the very precise 4 band semi-parametric equalisers. This is extremely flexible and means that the PA can be operated in many different ways. For example, the user may want to run a stereo house system with separate left and right speakers and no monitors, or a mono system with a foldback monitor.

The mic preamp is probably the most important stage in the console’s signal path and its performance is often the measure of the quality of the console. The PA Series uses a high grade dualstage design, developed from our acclaimed ML and GL consoles. This ensures optimum matching and very low noise when connecting mic or line sources.

• 8 Mono mic or line inputs + 2 stereo
• Line input overrides XLR input
• 48V phantom power on each channel
• Switched 100hz high pass filter on each channel
• 4 band EQ
• 100mm smooth action ALPS faders
• Insert point on every channel (TRS)
