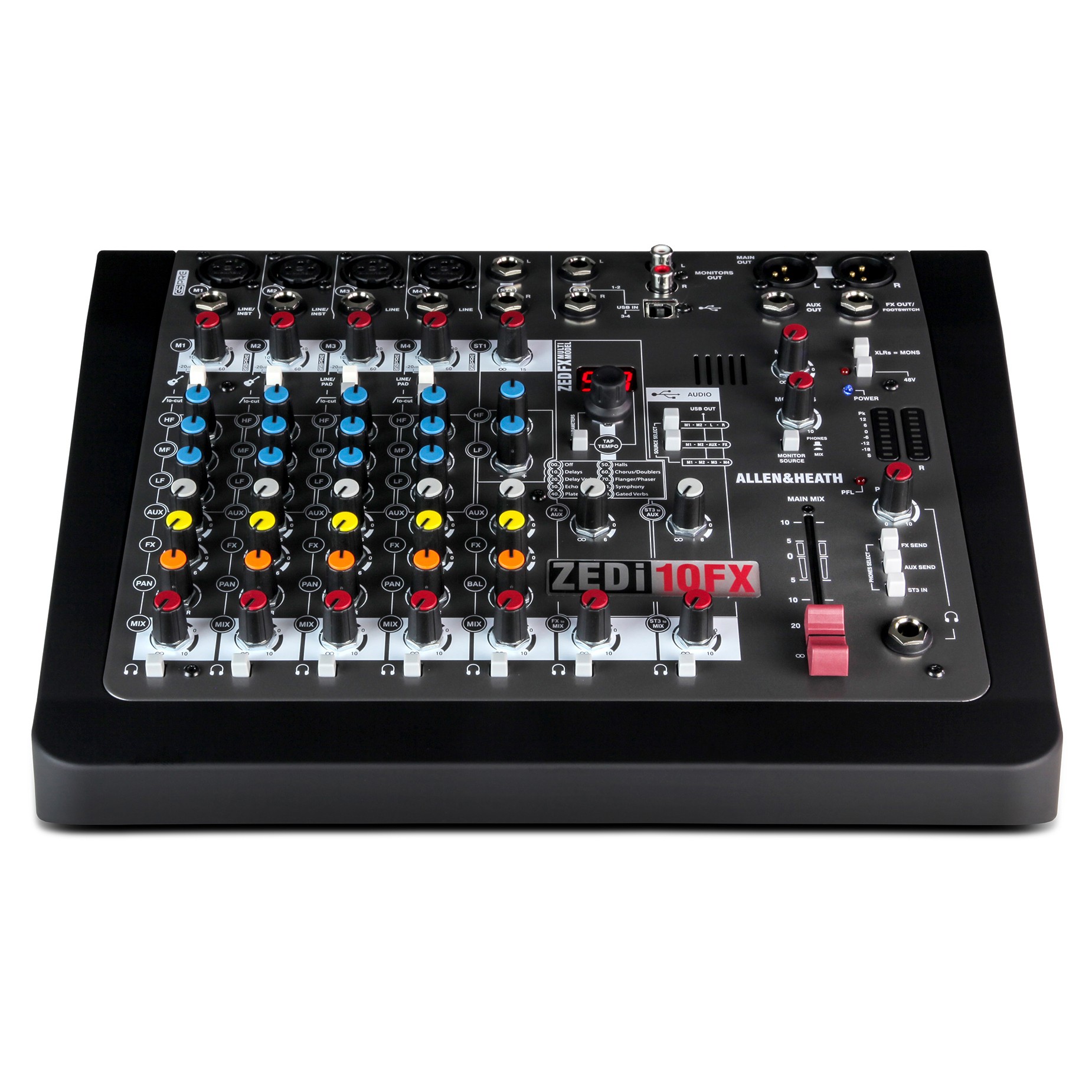

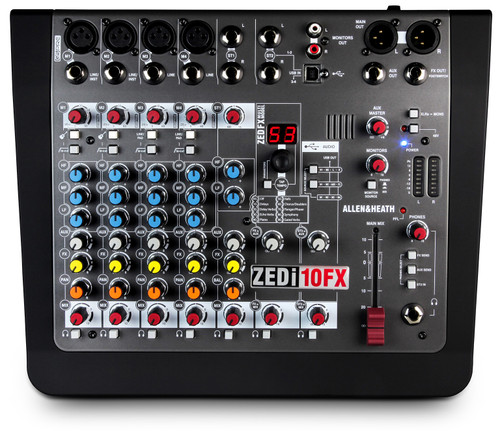

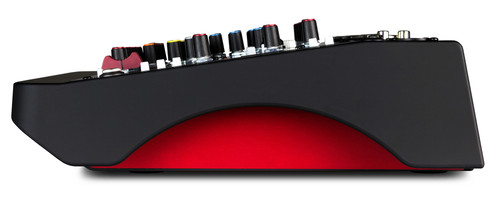

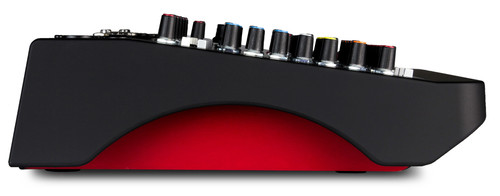

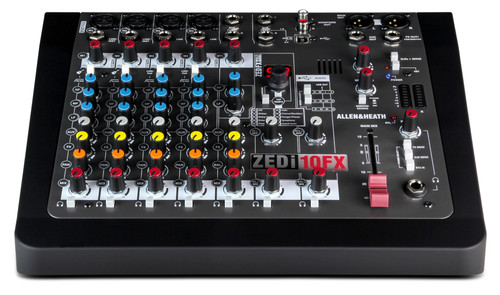

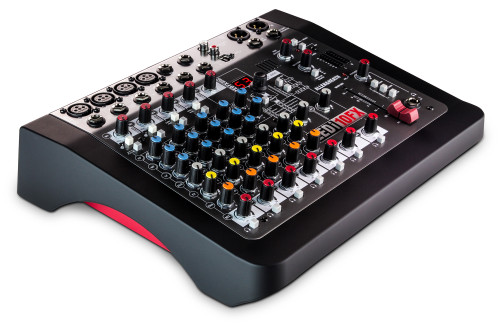

The Allen & Heath ZEDi-10FX combines the robustness and hands-on control of an analog mixer with a high quality 4 x 4 USB interface and an outstanding multi-model FX unit, making it a perfect all-round choice for musicians, recording artists and venues. Whether it’s bouncing ideas around at home, performing live or recording tracks to share on YouTube and Soundcloud, ZEDi-10FX is a versatile companion for every step of the creative journey.
The studio quality, 24-bit / 96kHz, 4×4 USB interface makes it easy to capture stunning multitrack recordings direct from the mixer to a Mac or PC without the need for any extra equipment. Featuring the new GSPre boutique preamp design, developed from the revered GS-R24 studio recording console, the ZED boasts exceptionally low noise and massive headroom, with a signature analog warmth and depth. ZEDi-10FX includes a specially created suite of studio-quality reverbs, delays and special multi-model FX, crafted by Allen & Heath’s acclaimed in-house effects aficionados. Guitarists will be pleased to know that two of ZEDi-10FX’s mono channels feature Guitar DI high impedance inputs, allowing guitars to be plugged straight into the mixer without the hassle and expense of carrying separate DI boxes.
| Operating Levels Input | |
|---|---|
| Mono channel 1-2 (XLR) Input (For Nominal 0dBu) | -5dBu to –60dBu (+13dBu maximum) |
| Mono channel 3-4 (XLR) Input (For Nominal 0dBu) Pad IN | +15dBu to –40dBu (+23dBu maximum) |
| Mono channel 1-2 Instrument/Line Input (Jack socket) | +14dBu to -40dBu (+17dBu maximum) |
| Mono channel 3-4 Line Input (Jack socket) | +15dBu to -40dBu (+23dBu maximum) |
| Stereo Input (Jack sockets) | 0dBu nominal (control = Off to +15dB Gain) |
| Operating Levels Output | |
| L/R Outputs (XLR) | 0dBu (+18dBu maximum) |
| Aux & FX Output (Jack sockets) | 0dBu (+18dBu maximum) |
| Monitor Output L/R (RCA Phono Sockets) | 0dBu (+18dBu maximum) |
| Frequency Response | |
| Mic in to Mix L/R Out, 30dB gain | 10Hz to 30kHz +0.5/-1dB |
| Instrument/Line in to Mix L/R out 0dB gain | 10Hz to 30kHz +0.5/-1dB |
| Stereo in to Mix L/R out | 10Hz to 30kHz +0.5/-1dB |
| THD+n | |
| Mic in to Mix L/R Out, 10dB gain 1kHz +10dBu out (22 Hz-22kHz) | 0.002% |
| Mic in to Mix L/R Out, 30dB gain 1kHz (22Hz-22kHz Filter) | 0.005% |
| Instrument in to Mix L/R out 0dB gain 0dBu 1kHz (22H z-22kHz Filter) | 0.03% 2nd Harmonic |
| Stereo in to Mix L/R out 0dB gain +10dBu 1kHz (22Hz- 22kHz Filter) | 0.0025% |
| Headroom | |
| Analogue Headroom from nominal (0Vu) | 18dB |
| USB in & out headroom from nominal (0Vu) | 18dB |
| Noise | |
| Mic Pre EIN @ max gain 150R input Z (22Hz-22kHz Filter) | -127dBu |
| Mix L/R out, L/R fader = 0, Channel Levels min (22Hz- 22kHz Filter) | -93dBu |
| Mix L/R out, L/R faders = 0, Channel Levels 0dB (22Hz -22kHz Filter) | -90dBu |
| USB Audio | |
| USB Audio In/Out | USB 2.0 compliant |
| Bit Depth | 24 bit |
| Sample Rate | 44.1, 48, 88.2, 96kHz |
| Mixer Specifications | |
| Inputs - Mic Preamps | 4 x XLR |
| Inputs - Line | 4 x TRS (CH 1-4) 4 x TRS (CH 5-6 ST) 4 x XLR |
| Outputs - Main | 2 x XLR (Main) |
| Outputs - Other | 2 x RCA (Monitor) |
| Headphones | 1 x 1/4" |
| Send/Return I/O | 2 x 1/4" (1x AUX, 1x FX) |
| Phantom Power | 4 |
| EQ Bands | 3-band (CH 1-4) 2-band (CH 5 ST) |
| Aux / FX Sends | 1 x Pre, 1 x Post (Per Channel) |
| Busses/Groups | Stereo Bus |
| Computer Connectivity | 1 x USB |
| Dimensions (H x W x D) | 3.8" (96.5 mm) x 13.1" (332.7 mm) x 10.8" (274.2 mm) |
| Weight (Unpacked) | 5.1 lbs (2.3 kg) |
| Weight (Packed) | 6.8 lbs (3.1 kg) |
