Inside the Design
This manufacturing and assembly plant PA sound system is designed to provide clear paging, announcements, and background music for large industrial spaces up to 18,000 sq. ft. The system uses high-performance pendant loudspeakers suspended from the ceiling to deliver even sound coverage throughout the facility while maintaining a clean and professional appearance that blends with lighting and building architecture.
At the heart of the system is the TOA BG-2240D 240W mixer power amplifier, which provides reliable amplification and flexible input connectivity for microphones and music sources. Combined with the TOA PM-660U desktop paging microphone and a Pure Resonance Audio BTR1 Bluetooth receiver, the system allows staff to make clear announcements or stream music wirelessly from smartphones, tablets, or computers. This combination creates a dependable communication and audio solution for manufacturing environments where clear messaging is critical.
Sound System Features:
- Industrial PA system designed for manufacturing plants and warehouse environments
- Pendant loudspeakers provide wide and even sound coverage in high-ceiling facilities
- 240W 70V mixer power amplifier delivers reliable performance for large spaces
- Desktop push-to-talk paging microphone allows clear announcements and personnel paging
- Bluetooth audio receiver enables wireless music streaming from mobile devices
- System supports paging, announcements, emergency communication, and background music
- Scalable design allows for future system expansion if needed
About the System Components
TOA PE-304 Public Address Pendant Speakers
The TOA PE-304 pendant-style public address speaker is designed for ceiling suspension in high-ceiling environments such as factories, warehouses, and large commercial facilities. Built with a durable bass-reflex enclosure and a 5-inch cone-type driver, the speaker provides clear speech reproduction and balanced music playback. Its sleek design allows it to blend naturally with lighting fixtures and building architecture. The PE-304 includes a balanced dome tweeter for improved high-frequency clarity and features an adjustable input impedance selector for flexible system configuration. A sturdy suspension cable allows installation heights up to 16.4 feet, making it ideal for industrial environments requiring wide audio coverage.

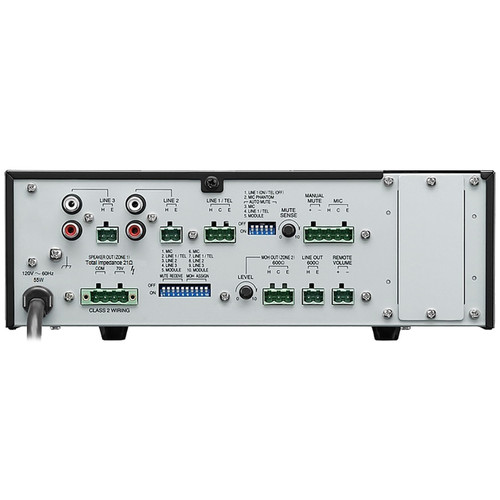

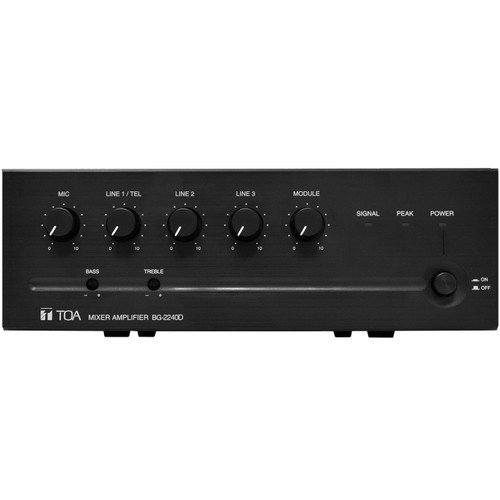

TOA BG-2240D 240W Mixer Power Amplifier
The TOA BG-2240D is a powerful and reliable 240-watt mixer power amplifier designed for commercial sound applications, including factories, warehouses, offices, and large facilities. It offers multiple microphone and line inputs, making it easy to integrate paging microphones and music sources into a single system. The amplifier supports 70V distributed speaker systems for efficient audio distribution across large areas. Built with TOA's proven reliability, the BG-2240D provides consistent performance, simple operation, and flexible input control, making it an ideal core component for industrial paging and communication systems.
TOA PM-660U Desktop PTT Paging Microphone
The TOA PM-660U is a compact and durable desktop paging microphone designed for public address and paging systems. Featuring a push-to-talk bar and locking lever for continuous announcements, the microphone allows facility staff to quickly page personnel or deliver important announcements. Its cardioid pickup pattern helps reduce background noise and feedback, ensuring clear voice reproduction even in busy industrial environments. The microphone includes an attached cable and provides reliable operation for daily paging and communication needs.

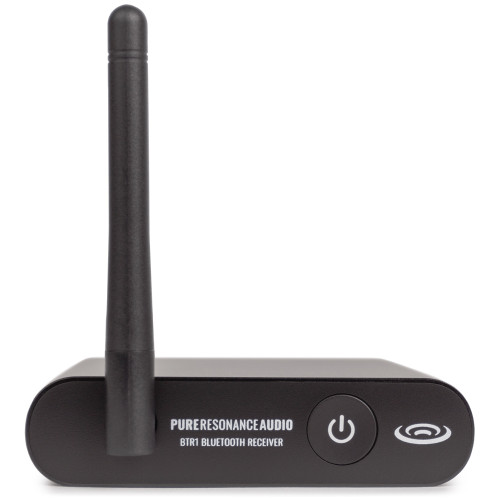

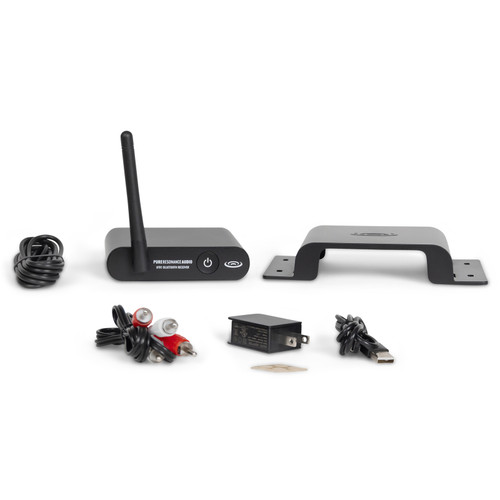

Pure Resonance Audio BTR1 Bluetooth Wireless Audio Receiver
The Pure Resonance Audio BTR1 Bluetooth receiver allows wireless audio streaming directly into the PA system from smartphones, tablets, computers, or other Bluetooth-enabled devices. Featuring Bluetooth 5.0 technology and a transmission range of up to 100 feet, the receiver delivers stable and high-quality audio playback for background music and announcements. Its compact design allows easy installation alongside the amplifier while providing convenient wireless connectivity for modern audio sources.
