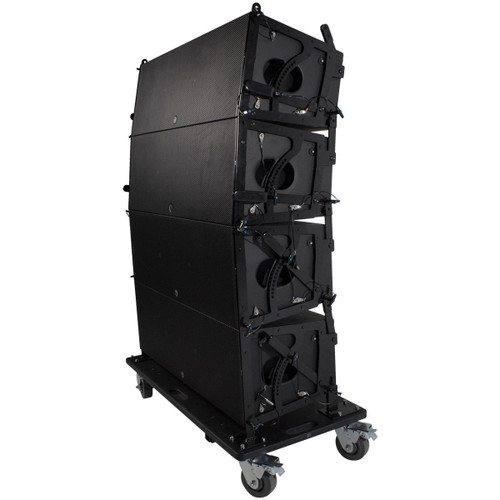

Atlas Sound AL123A-B 12" Powered Line Array Speaker (Discontinued)

By AtlasIED

Atlas Sound AL123A-B 12" Powered Line Array Speaker (Discontinued)

Name: Atlas Sound AL123A-B 12" Powered Line Array Speaker (Discontinued)
Brand: AtlasIED
SKU: ATLAS-AL123A-B
Price: 7025.99 USD
Availability: OutOfStock

Write a Review

Part #:

AL123A-B

Model #:

AL123A-B

Current Stock:

Availability: No Longer Available

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Description

The Atlas Sound AL123A-B is a powered, large format line array system. This array is highly intelligible with wide coverage and high impact. The AL123A-B cabinet is amplified with a total of 3600 Watts on board. The DSP in each cabinet is network controlled, allowing precise tuning of the array system.

Enclosures feature A-Line’s exclusive integrated patented EZAL rigging system for faster, safer and easier set up. Up to eight boxes can be individually aimed under load, while flown or stacked, by just one or two people. Made in the USA with the highest-grade components, A-Line Acoustics AL123 boxes are constructed of birch plywood with threaded fittings for attachment of speakers, LSRs, rigging and amplifiers.

Optional wheel boards 0.25 x 0.5 truck pack and fly frames are also available.

Features

3-Way Full Range Speaker System
Two 12" Low Frequency Drivers
4x 6" Midrange Drivers
Baltic Birch Cabinet Construction
EZAL™ Rigging System
Two 1.4" High Frequency Drivers
Finished in Heavy Duty Black Duracoat

Specifications

Total Power (RMS)	3600 Watts
LF Driver Power (RMS)	2400 Watts
MR Driver Power (RMS)	600 Watts
HF Driver Power (RMS)	600 Watts
Impedance LF/MR/HF	4Ω / 4Ω / 8Ω
MAX SPL	136dB
Frequency Response	70Hz - 18kHz (±3dB)
Connectors	I/O PowerCON™ and M&F XLR
Dimensions (H x W x D)	13.9" (353.1 mm) x 45.3" (1151 mm) x 16.3" (414 mm)
Weight	133 lbs (60.33 kg)
