Atlas Sound EMMA2K-B Powered Line Array Speaker System - Pair (Discontinued)

Description

Details

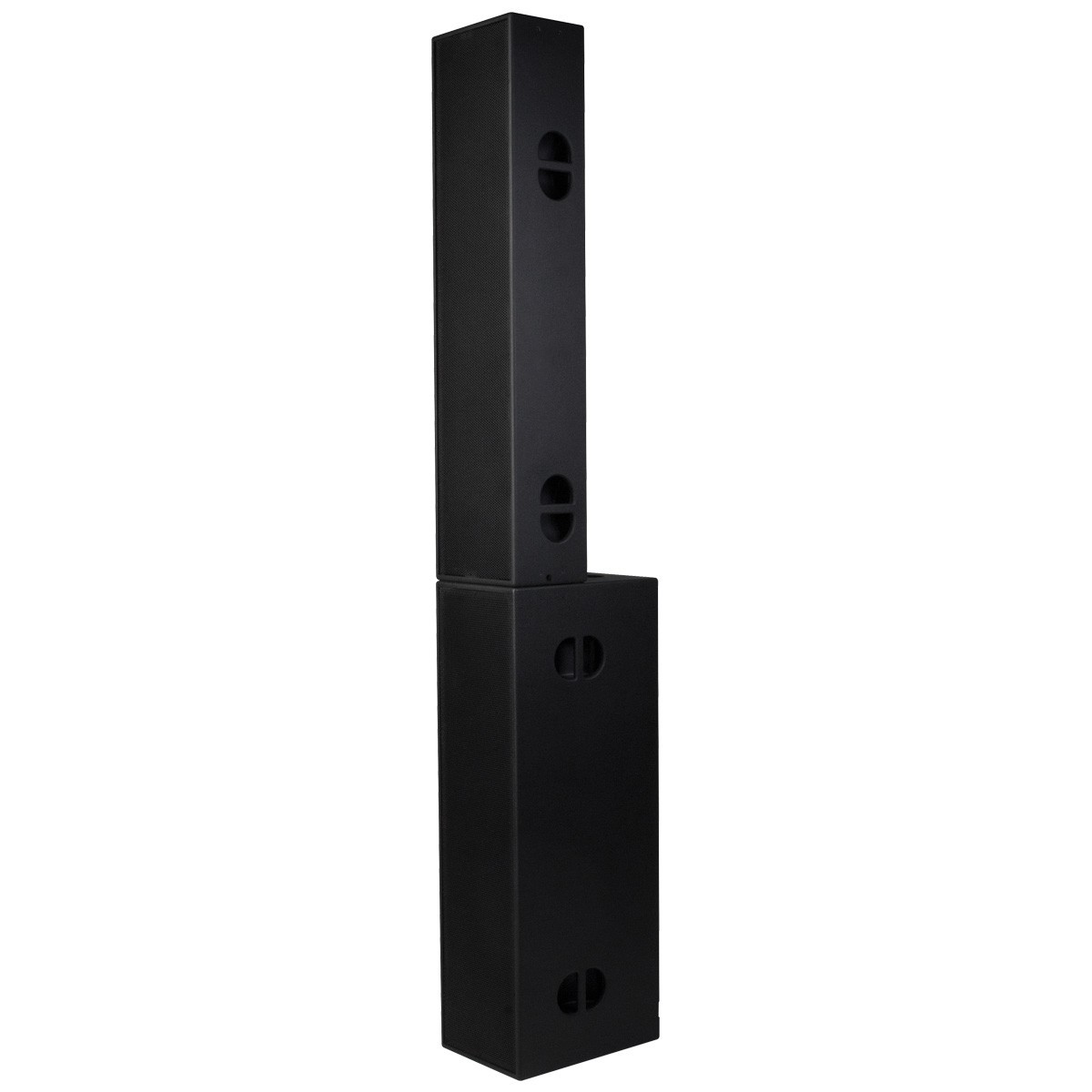

The Atlas A-Line EMMA active, modular line array system is a highly intelligible, high efficiency 3-way speaker system ideally suited for use in speech and music reproduction applications for medium to large venues like houses of worship, theaters and concert halls. The system consists of two parts: the EM806A-B, which includes eight 6.5" high frequency ribbon drivers and eight 6.5" low / mid frequency drivers and the EMW410A-B, which includes four 10" subwoofers. Each unit is powered by an integrated class D amplifier with pre‑configured DSP. Both models utilize an optimally designed Baltic birch constructed enclosure. The trim line, two cabinet design allows the units to be stacked to create a sleek, clean looking set up with minimal sightline interference.

Features

Features

EM806A-B
Eight 6.5" High Frequency Ribbon Drivers
Eight 6.5" Midrange Drivers
Integrated 1500W Class D Amplifier
EMW410A-B
Four 10" Subwoofers
Integrated 1000W Class D Amplifier
Integrated Carrying Handles for Easy Transport
Heavy Duty Duracoat Finish
M&F XLR & I/O PowerCON Connectors

Specification

EM806A-B Line Array Speaker
Total RMS Power	1500 Watts
High Frequency RMS Power	500 Watts
Midrange RMS Power	1000 Watts
Frequency Response	90Hz - 19kHz
Crossover Frequency	90Hz/125Hz - 2kHz
MAX SPL	128 dB
Horizontal Dispersion	120°
Dimensions (H x W x D)	54.6" (1386.8 mm) x 13.1" (332.7 mm) x 9.4" (238.8 mm)
Weight	105 lbs (47.63 kg)
EMW410A-B Active Modular Subwoofer
RMS Power	1000 Watts
Frequency Response	40Hz - 125Hz
Crossover Frequency	90Hz/125Hz
MAX SPL	130 dB
Horizontal Dispersion	Omni
Dimensions (H x W x D)	48.8" (1239.5 mm) x 13.1" (332.7 mm) x 19.0" (482.6 mm)
Weight	97 lbs (44 kg)
