Audio-Technica AT2050 Multi-Pattern Condenser Microphone

Description

The versatile AT2050 provides consistent, superior performance in switchable cardioid, omnidirectional and figure-of-eight polar pattern settings. Its dual large diaphragms are gold-vaporized and aged to achieve optimum characteristics over years of use. Equipped with a switchable 80 Hz high-pass filter and 10 dB pad, the microphone is ideal for studio and live sound use on vocals, piano, strings, drum overheads, guitar amps, and more.

Features

• Three switchable polar patterns: omni, cardioid, figure-of-eight
• Switchable 80 Hz high-pass filter and 10 dB pad
• Large diaphragm for smooth, natural sound and low noise
• State-of-the-art surface-mount electronics ensure compliance with A-T's stringent consistency and reliability standards
• Includes shock mount & protective pouch

Specifications

Element	Externally-Polarized (DC Bias) Condenser
Polar Patterns	Cardioid, Omnidirectional, Figure-of-Eight
Frequency Response	20 - 20,000 Hz
Low Frequency Roll-Off	80 Hz, 12 dB/Octave
Open Circuit Sensitivity	–42 dB (7.9 mV) re 1V at 1 Pa
Impedence	120 ohms
Maximum Input Sound Level	149 dB SPL, 1 kHz at 1% T.H.D.; 159 dB SPL, with 10 dB Pad (Nominal)
Noise	17 dB SPL
Dynamic Range (Typical)	132 dB, 1 kHz at Max SPL
Signal-to-Noise Ratio	77 dB, 1 kHz at 1 Pa
Phantom Power Requirements	11-52V DC, 4.7 mA Typical
Switches	Polar Selection; Flat, Roll-Off; 10 dB Pad (Nominal)
Output Connector	Integral 3-Pin XLRM-Type

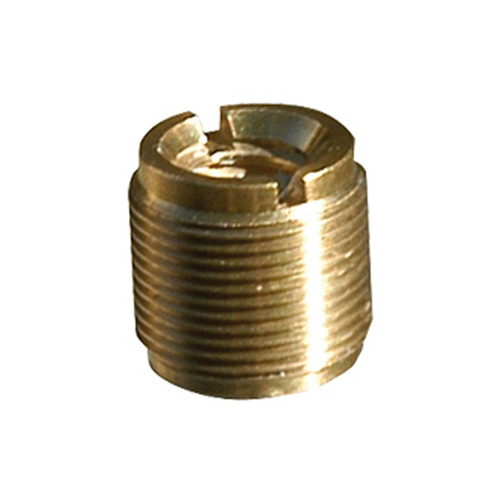

Accessories Furnished	AT8458 Shock Mount for 5/8"-27 Threaded Stands; 5/8"-27 to 3/8"-16 Threaded Adapter Soft Pouch
Case Style	R5
Dimensions (Dia x L)	2.05" (52 mm) x 6.69" (170 mm) Maximum Body Diameter
Weight	0.908 lbs (0.412 kg)

DOCUMENTS

In The Box

• (1) AT2050 Multi-Pattern Condenser Microphone

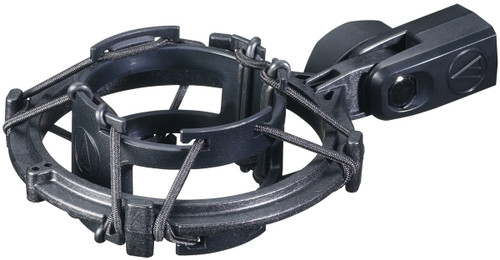

• (1) AT8458 Shock Mount with Thread

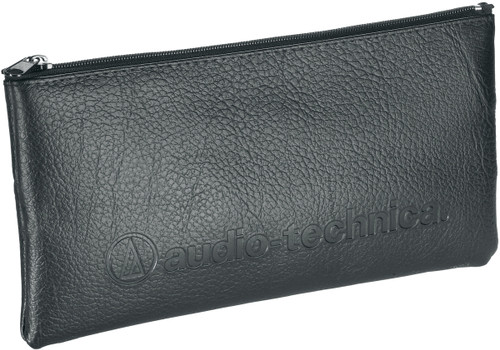

• (1) Soft Protective Pouch
