Audio-Technica AT4047MP Multi-Pattern Condenser Microphone

Description

Audio-Technica's AT4047MP delivers vintage sound in a multi-pattern design with selectable omnidirectional, cardioid, and figure-of-eight polar patterns. The microphone's transformer-coupled output and specially tuned element provide sonic characteristics reminiscent of early F.E.T. studio microphone designs. With a wide dynamic range, incredibly low self-noise and high SPL capability, this versatile microphone excels on vocals, strings, acoustic guitar, instrument ensembles, small vocal groups and voiceovers.

Features

• Three switchable polar patterns: cardioid, omnidirectional, figure-of-eight
• Engineered to meet the critical acoustic requirements of professional recording, broadcast and sound reinforcement
• Transformer-coupled output and specially tuned element provide sonic characteristics reminiscent of early F.E.T. studio microphone designs
• Exceptionally low self-noise, wide dynamic range and high SPL capability
• Dual-diaphragm capsule design maintains precise polar pattern definition across the full frequency range of the microphone
• Precision-machined, nickel-plated brass, acoustic element baffle provides enhanced element stability and optimal sensitivity
• Vintage silver-matte finish on microphone and shock mount
• Open acoustical environment of the symmetrical housing assembly minimizes unwanted internal reflections
• Custom shock mount provides superior isolation
• Integral 80 Hz high-pass filter switch and 10 dB pad switch
• Certified by the METAlliance (Music Engineering and Technology Alliance)

Specifications

Element	Externally-Polarized (DC Bias) Condenser
Polar Patterns	Cardioid, Omnidirectional, Figure-of-Eight
Frequency Response	20-18,000 Hz
Low Frequency Roll-Off	80 Hz, 12 dB/octave
Open Circuit Sensitivity	–42 dB (7.9 mV), re 1V at 1 Pa
Impedance	100 ohms
Maximum Input Sound Level	155 dB SPL, 1 kHz at 1% T.H.D 65 dB SPL, with 10 dB pad (nominal)
Noise	14 dB SPL
Dynamic Range (Typical)	141 dB, 1 kHz at Max SPL
Signal-To-Noise Ratio	80 dB, 1 kHz at 1 Pa
Phantom Power Requirements	48V DC, 3.4 mA Typical
Switches	Polar Selection Flat, Roll-Off 10 dB Pad (Nominal)
Output Connector	Integral 3-Pin XLRM-Type
Audio-Technica Case Style	R1

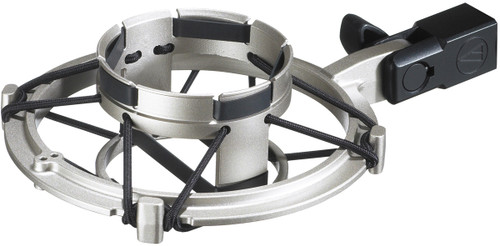

Accessories Furnished	AT8449/SV Shock Mount for 5/8"-27 Threaded Stands; Microphone Dust Cover
Dimensions (Dia x L)	2.10" (53.4 mm) x 7.40" (188.0 mm)
Weight	1.16 lbs (0.53 kg)

DOCUMENTS

In The Box

• (1) AT8449/SV Shock Mount for 5/8"-27 Threaded Stands

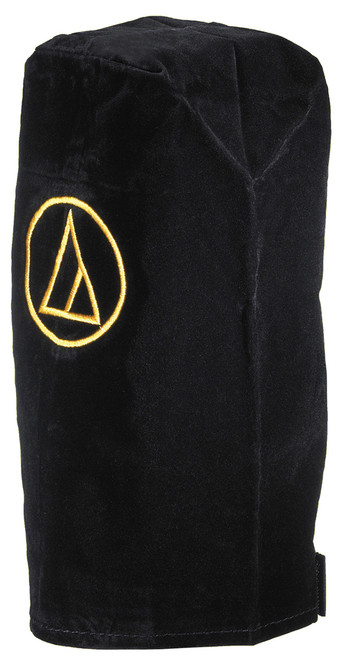

• (1) Microphone Dust Cover
• (1) Protective Carrying Case
