Audix W3BP Wireless System with Body Pack Transmitter Only (Discontinued)

Audix W3BP Wireless System with Body Pack Transmitter Only (Discontinued)

Name: Audix W3BP Wireless System with Body Pack Transmitter Only (Discontinued)
Brand: Audix Microphones
SKU: AUDIX-W3BP
Price: 579 USD
Availability: OutOfStock

Write a Review

Part #:

W3BP

Model #:

W3BP

Current Stock:

Availability: No Longer Available

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

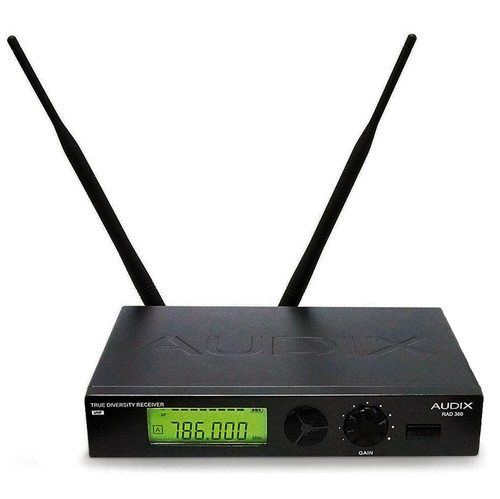

The Audix W3BP is a RAD360 wireless microphone system with body pack transmitter. It features 193 selectable frequencies, dual tuner, true diversity receivers and is designed for a wide range of professional applications.

Description

The Audix W3BP is a RAD360 Wireless System with Body Pack Transmitter. It is designed for a wide range of professional applications including live performances, fixed installations, corporate meetings, education and houses of worship.

The RAD360 features easy-to-use and easy-to-read menu driven displays in every component of the system. Both the receiver and the transmitter are synthesizer controlled via Phase Locked Loop (PLL) for stable Radio Frequency (RF) signals.

The body pack transmitter, constructed of durable ABS composite, is housed in a protective metal cradle. It may be used with lavalier, headset and specialty instrument microphones. A guitar system is also available. Mic/line input adjustments are provided as well as sensitivity/gain control.

Note: Users of this wireless must be eligible and licensed under FCC regulation Part 74.832.

Compatible Microphones:

- Headset Mics (HT2, HT5)
- Lavalier Mics (ADX5, ADX10)
- Flute (ADX10FL)
- Harmonica (need CLBv360 cable and FireBall or FireBallV)
- Guitar (need cable CBLG360)
- Saxaphone, Brass (ADX20i)

Features

Frequency Agile
Soft-key Controls
Backlit LCD Menu Driven Displays
Noise Squelch Circuitry Analyzes signal quality
Surface Acoustic Wave (S.A.W.) Filters RF resistance
Tone Key Squelch Eliminates unwanted noise
Tuned Antennas
Audio Output
RF Level Meters
Audio Meters
Battery Power Indicators
Easy to use Set and Lock Function
Sensitivity Adjustment
Interchangeable Head Assemblies
Durable Metal Housings

Specifications

General
Switchable Frequencies	193 (per system group of 24 MHz spaced .125 Hz apart)
Frequency Response	40 Hz–18 kHz (depending on capsule)
Signal To Noise Ratio	>110dB
Compander System	HDX
Pilot Tone	32.768 kHz
RAD360-BP Bodypack Transmitter
RF Power Output	50 mW Max
Spurious Emissions	Under federal regulations
Input Connector	3 pin mini-XLR
Input Controls	Mic/line switch, and 20 dB potentiometer
Battery (Not Included)	2- AA 1.5 V
Current Consumption	100 mA typical
Battery Life	Approximately 12 hours (depending on battery type and usage)
Input Impedance	Mic: 10kOhm; Line: 1MOhm
Max Sound Pressure Level	Approx. 128–140dB (depending on mic)
Dimensions	4" (104 mm) x 2.8" (71.3 mm) x 1" (27 mm)
Net Weight (without Battery)	0.450 lbs (0.204 kg) (with battery)
