Baseball Stadium Sound System with 2 Atlas Stadium Speakers, Stadium Horn, Bluetooth Mixer Amplifier and Microphone

Inside the Design

This powerful baseball field PA system with Bluetooth provides quality music reproduction with two weather resistant outdoor speakers and a long throw stadium horn for play-by-play announcements that can be clearly heard in both the bleachers and on the field, perfect for little league, softball, baseball, and other small athletic playing fields. The high-quality desktop stand and ultra clear microphone is perfect for sports announcers - no more unintelligible speech. The crowd will enjoy the clear audio from this high-performance sound system.

Key System Features:

• Easy to install and simple to operate
• High-quality, weather resistant loudspeakers and long throw paging horn
• Exceptional performance for music and sound reinforcement for announcements, play-by-plays, paging and music
• Ultra Clear handheld mic with a quiet On/Off switch and desktop stand
• 120W 7-channel mixer amplifier with Bluetooth



About the System Components

This affordable and economical baseball and softball stadium sound system includes two high-performance weather resistant Atlas Sound SM63T loudspeakers with attractive UV-resistant construction. Also included is a JBL CSS-H30 paging horn with excellent voice range, clarity and long throw capability, a Pure Resonance Audio MA120BT 120-watt 7-channel Bluetooth mixer amplifier for playing music from your smart device featuring MOH (Music on Hold) for paging. This sound system also includes our UC1S Ultra-Clear™ dynamic vocal microphone with a super heavy-duty housing and ultra-quiet On/Off switch, a Gator GFW-MIC-0601 mic stand, a 20ft microphone cable and 50ft of Aquaseal speaker wire.

Not sure if this is the right Stadium Sound System solution for you?
Call our sales team at (888) 256-4112 or click the Add to Quote button to request a customized sound system that fits your needs.

Atlas Sound SM63T-B All Weather 6.5" 2-Way Loudspeakers:

• Compact, 2-way loudspeaker systems for exceptional performance in music and sound reinforcement systems
• Weather-resistant construction for year-round indoor or outdoor use: UV-resistant talc impregnated polypropylene, injection molded, weatherproof enclosure powder coated aluminum grilles and all brass hardware inserts
• Conforms to 100HR salt spray test per ASTM B117
• Highly efficient 6.5" polypropylene woofer
• 20 mm FerroFluid™ cooled dome tweeter
• Atlas Sound POLYGUARD™ high-frequency circuit diverts damaging transient signals to protect the tweeter
• Color matched heavy-duty zinc plated and powder coated "C" bracket (included)
• All 1/4" - 20 hardware inserts allow easy integration of "off-the-shelf" security hardware
• Barrier strip input with weather resistant cover
• Screwdriver adjustable 32-watt 70.7V / 100V transformer for distributed sound applications (includes transformer bypass setting for direct coupled 8Ω operation)
• Bracket included for wall mounting
• Compatible with OMNIMOUNT™ 10.0 Series mounting systems

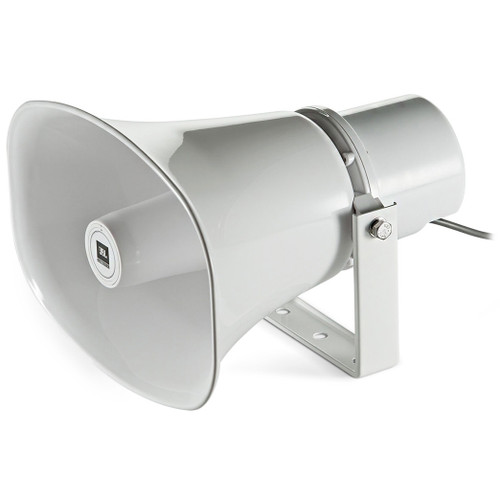

JBL CSS-H30 30 Watt Paging Horn:

• Excellent voice range clarity for announcement and paging
• High sensitivity delivers high sound levels with minimal power amplification
• Focused 50° horizontal by 70° vertical coverage for long throw capability
• Phenolic diaphragm driver for outdoor durability and high reliability
• UL-registered 30-watt multi-tap transformer, with 8 ohm direct bypass
• Built-in high-pass filter enhances reliability by protecting against low frequency damage
• Highly weather-resistant, with stainless steel bracket and hardware



Pure Resonance Audio MA120BT 7-Channel 120W Commercial Mixer Amplifier with Bluetooth:

• 7-channel powered mixer amplifier (6 inputs + Bluetooth Media Player)
• Volume Controls for Mic 1-3, Line 1-2, MP3/FM Radio, Bass, Treble and Master
• MP3 Player, FM Radio & Bluetooth (with IR remote control)
• USB and SD inputs on front panel
• Power output rating 120 Watts
• Built-in 70V/100V transformer
• Speaker outputs: 70V, 100V, 4, 8 and 16 Ohms
• Mic 1 of balanced XLR input (with phantom power)
• Mic 2-3 microphone or line switchable
• Line 1-2 input of RCA inputs
• DIP switches for Mic/Line, phantom power and microphone priority
• Unbalanced 6.3 mm phone jack input
• One RCA line output (0.775 line level 0 dBV)
• Telephone input (600 Ohm/100mV) with VOX priority and MOH (Music on Hold) (600 Ohm 1 Volt)
• LED indicators for power clip, protect signal, Mic 1-3, Line 1-2 and telephone inputs
• Short-circuit, clip, overload and high temp protection
• 24 VDC Emergency backup supply
• 115V 60 Hz & 24V DC both operation system

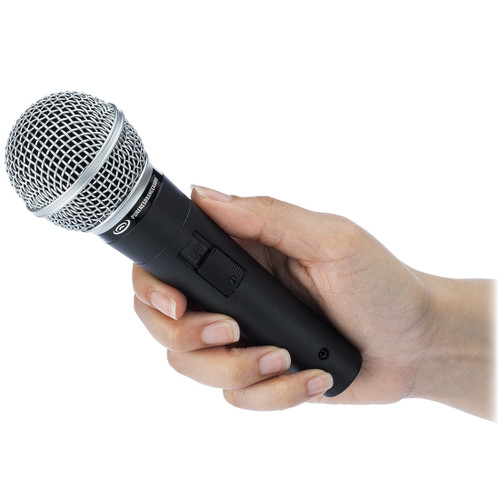

Pure Resonance Audio UC1S Ultra-Clear Dynamic Vocal Microphone with On/Off Switch:

• Super heavy-duty housing
• Built-in wind and breath "pop" noise filter
• Ultra dependable quiet switch
• Steel mesh grille
• SwitchCraft connector
• Frequency response tailored for vocals
• Uniform cardioid (unidirectional) dynamic pickup pattern isolates the main sound source and minimizes background noise
• Supplied with break-resistant stand adapter
• Frequency response: 50 to 16,000 Hz
• For outdoor and indoor events



Gator Frameworks GFW-MIC-0601 Desktop Mic Stand with Round Base and Twist Clutch:

• Desktop microphone stand with 6" weighted base
• No-slip vibration reducing base gasket
• Soft grip height adjustment twist clutch
• Min / max height: 10/15" (254/381 mm)
• Cable management included
• Heavy duty steel construction
• Fits both us and euro mic clips

• (2) Atlas Sound SM63T-B All Weather 6.5" 2-Way Loudspeakers
• (1) JBL CSS-H30 30 Watt Paging Horn
• (1) Pure Resonance Audio MA120BT 7-Channel 120W Commercial Mixer Amplifier with Bluetooth
• (1) Pure Resonance Audio UC1S Ultra-Clear Dynamic Vocal Microphone with On/Off Switch
• (1) Gator Frameworks GFW-MIC-0601 Desktop Mic Stand with Round Base and Twist Clutch

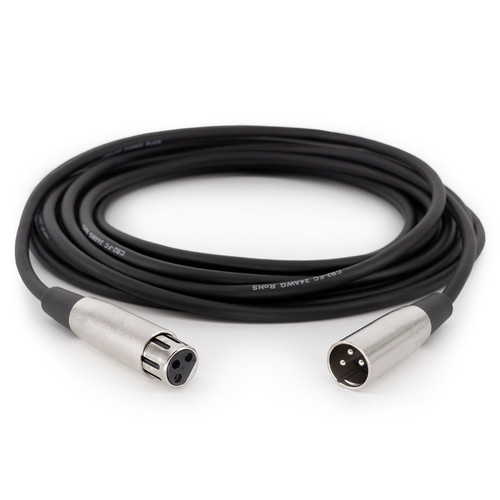

• (1) XLR to XLR Microphone Cable - 25ft
• (50') West Penn AQ227 12/2 Aquaseal Fire-Alarm Speaker Wire
