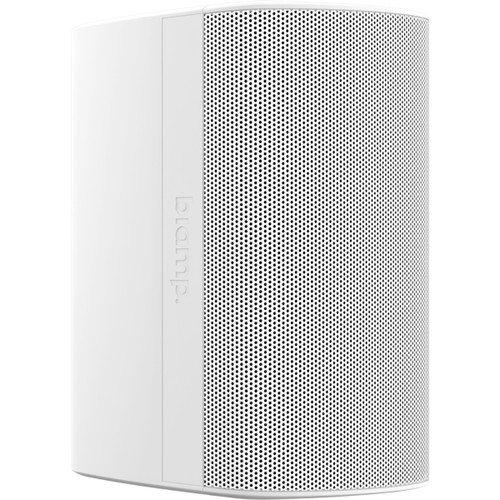

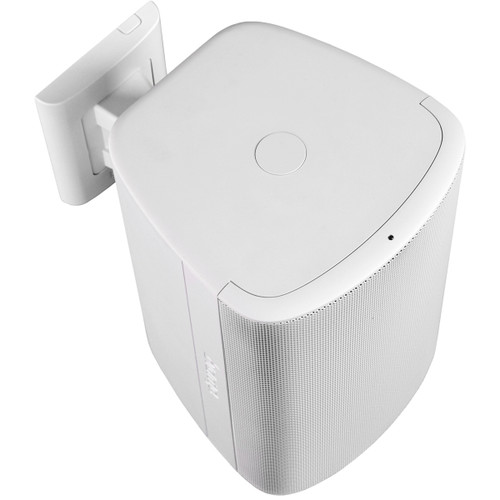

Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.The Desono DX-S5-W is a high-performance pair of 5-inch surface-mount loudspeakers designed for installations requiring superior sound quality in a compact and attractive form. Offering high efficiency, excellent speech intelligibility, and low distortion, the DX-S5-W easily outperforms many larger loudspeakers while maintaining a discreet appearance that blends into any environment.

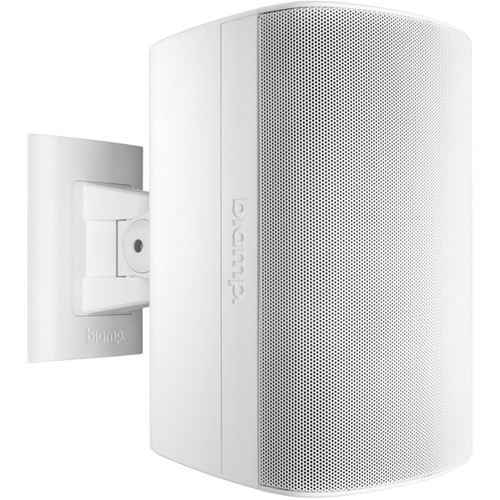

Engineered for flexibility, the DX-S5-W features Biamp’s patented ClickMount pan-tilt bracket, which allows fast, secure installation in either vertical or horizontal orientation without repositioning the bracket. The integrated power tap switch can be set before mounting, further simplifying setup. Weather-resistant construction makes the DX-S5-W ideal for both indoor and outdoor applications, including retail, hospitality, corporate, and education spaces.
With consistent voicing across the DX Series, the DX-S5-W integrates seamlessly with DX ceiling loudspeakers, ensuring uniform sound across distributed audio systems. Its robust design, secure mounting hardware, and long-term reliability make it a trusted choice for professional installations.
| Operating Mode | Single Amplified with DSP |
|---|---|
| Operating Environment | Indoor / Outdoor Direct Exposure |
| Operating Range (-10 dB) | 75 Hz to 20 kHz |
| Nominal Beamwidth (H x V) | 130° x 125° |
| Transducers | LF 1 x 5" (127 mm) HF 1 x 1" (25 mm) exit compression driver |
| Autoformer | 70V: 60W, 30W, 15W, 7.5W; 100V: 60W, 30W, 15W |
| Recommended Amplifiers | Passive: 100W - 200W into 8Ω, (28V - 40V) |
| Input Connection | Lever-actuated wire clamping 4-position terminal block with pass-through |
| Controls | Wattage / low impedance selector switch |
| Mounting Provisions | ClickMount pan-tilt bracket |
| Certifications | IP54 per IEC 60529, IEC 60068-2-5 (Solar Radiation), IEC 60068-2-11 (Salt Mist), IEC 60068-2-42 (SO2), IEC 60068-2-60 (Chlorine) |
| Dimensions (H x W x D) | 11.03" (280 mm) x 7.09" (180 mm) x 7.28" (185 mm) |
| Shipping Weight | 26.35 lbs (11.95 kg) |
