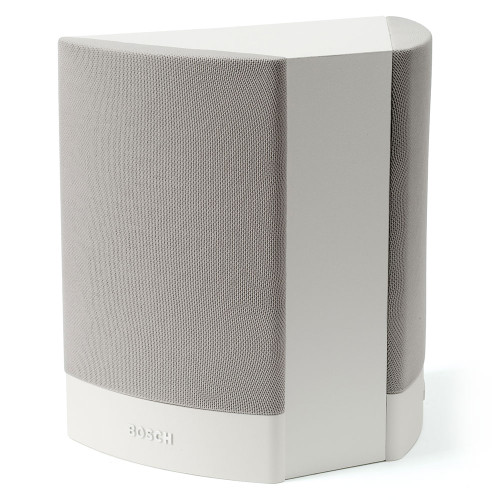

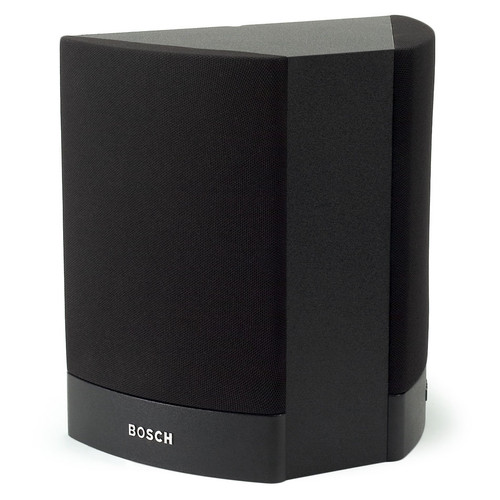

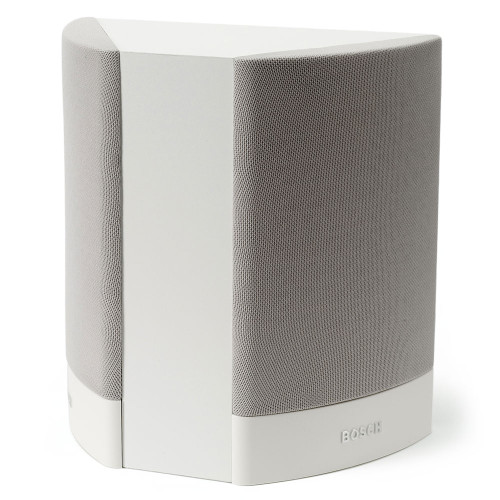

The LB1-BW12 is a 12W, cost-effective, bidirectional loudspeaker for indoor use. The baffle design creates a wide opening angle, making this loudspeaker very suitable for use in long corridors. Keyholes at the rear provide quick and easy wall mounting. The cabinet is available in black or white.
The robust, solid MDF (Medium Density Fiber board) enclosures are covered with a durable, easy-to-clean vinyl. The ABS fronts are covered with fine woven cloth in matching color. The cabinets have two dual cone loudspeaker drivers, mounted on an angled baffle, providing a wide opening angle. A convenient, easy‑to‑use, double five‑pole push‑in terminal block is present on the rear panel for on‑site wiring. This terminal block has provision for power tapping on the 70V / 100V, matching transformer in the cabinet. It allows selection of nominal full‑power, half‑power, quarter-power or eight-power radiation (in 3 dB steps). This model is intended for use in long corridors, such as in shopping arcades.
All Bosch loudspeakers are designed to withstand operating at their rated power for 100 hours in accordance with IEC 268-5 Power Handling Capacity (PHC) standards. Bosch has also developed the Simulated Acoustical Feedback Exposure (SAFE) test to demonstrate that they can withstand two times their rated power for short durations. This ensures extra reliability under extreme conditions, leading to higher customer satisfaction, longer operating life, and much less chance of failure or performance deterioration.
