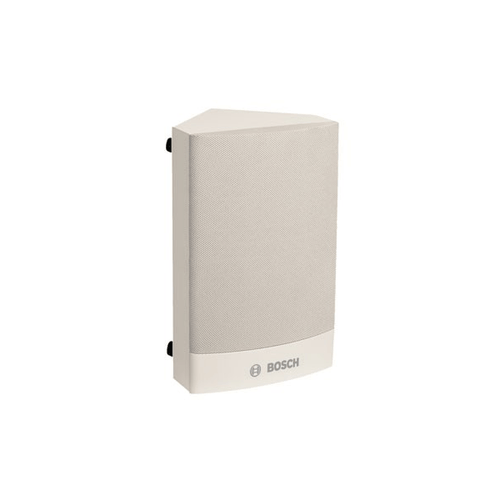

Bosch LB1-CW06 Corner Cabinet Loudspeakers (Discontinued)

The LB1-CW06 is a 6 W, general-purpose cost effective loudspeaker for indoor use. Two brackets with keyholes, fixed on one side provide quick and easy mounting in corners between two walls, or between a wall and ceiling. The cabinet is available in black or white.

The robust, solid MDF (Medium Density Fiber board) enclosures are covered with a durable, easy-to-clean vinyl in white or black. The ABS fronts are covered with fine woven cloth in matching color. The cabinet shapes allow installation in corners between walls, and between wall and ceiling. The other side of the cabinet is provided with two rubber feet for absorbing unwanted vibrations and secure mounting. A convenient easy-to-use, double five‑pole push-in terminal block is present on the side for on-site wiring. This terminal block has provision for power tapping on the 70 V / 100 V, matching transformer in the cabinet. It allows selection of nominal full-power, half-power, quarter-power or eight-power radiation (in 3 dB steps).

All Bosch loudspeakers are designed to withstand operating at their rated power for 100 hours in accordance with IEC 268-5 Power Handling Capacity (PHC) standards. Bosch has also developed the Simulated Acoustical Feedback Exposure (SAFE) test to demonstrate that they can withstand two times their rated power for short durations. This ensures extra reliability under extreme conditions, leading to higher customer satisfaction, longer operating life, and much less chance of failure or performance deterioration.

*Shipped in quantites of 6

• Good speech intelligibility and background music reproduction
• Special shape for mounting in corners
• Available in black or white
• MDF construction
• Compliancy with international installation and safety regulation
