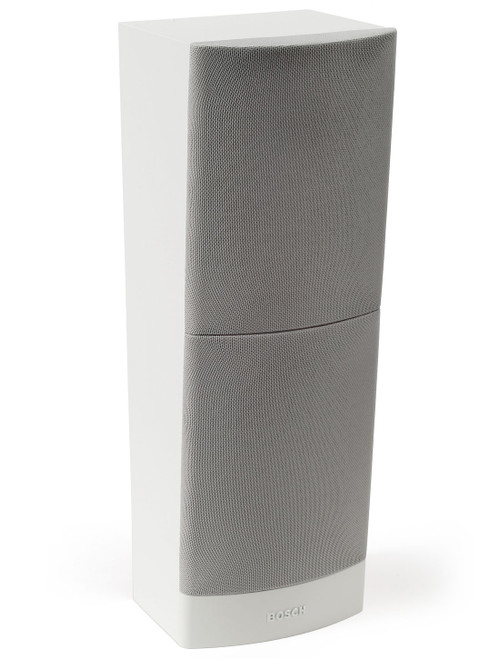

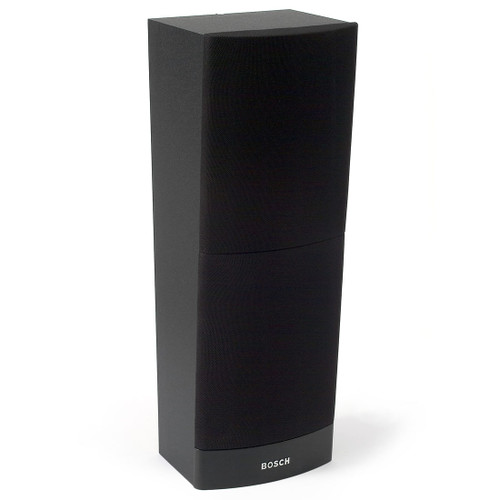

Bosch LB1-UW12 Cabinet Loudspeakers (Discontinued)

The LB1-UW12 is a 12W, general-purpose, cost- effective loudspeaker for indoor use. Keyholes at the rear provide quick and easy wall mounting. The angled front baffle results in a better sound in the listening area. The cabinet is available in black or white.

The robust, solid MDF (Medium Density Fiber board) enclosures are covered with a durable, easy-to-clean vinyl in a choice of white or black. The ABS fronts are covered with fine woven cloth in matching color. The angled front baffle results in improved high frequency reproduction in the listening area. A convenient easy-to-use, four‑pole push‑in terminal block is present on the rear panel for on-site wiring. This terminal block has provision for power tapping on the 100V, matching transformer in the cabinet. It allows selection of nominal full-power, half-power or quarter-power radiation (in 3 dB steps).

All Bosch loudspeakers are designed to withstand operating at their rated power for 100 hours in accordance with IEC 268-5 Power Handling Capacity (PHC) standards. Bosch has also developed the Simulated Acoustical Feedback Exposure (SAFE) test to demonstrate that they can withstand two times their rated power for short durations. This ensures extra reliability under extreme conditions, leading to higher customer satisfaction, longer operating life, and much less chance of failure or performance deterioration.

*Sold in quantities of 6

• Good speech intelligibility and background music reproduction
• MDF construction
• Complies with international installation and safety regulations
• Available in black or white

Data Sheet
