Bose DesignMax DM10P-SUB Pendant Subwoofer
Bose DesignMax DM10P-SUB Pendant Subwoofer Hanging

By Bose Professional

Bose Professional DesignMax DM10P-SUB 10" 70/100 Volt 300W Pendant Subwoofer - White

Write a Review
Part #:
835265-0220
Model #:
DesignMax DM10P-SUB
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL

Delivering rich low-end performance, the DesignMax subwoofer brings instantly impressive bass to any commercial sound installation. The 300-watt DM10P-SUB is a 10-inch pendant subwoofer with a 40 Hz – 125 Hz frequency range and features a recessed single-point suspension system for a sleek, attractive appearance.

Description

Bose DesignMax DM10P-SUB Pendant-Mount Hanging Subwoofer

Delivering rich low-end performance, the DesignMax subwoofers bring instantly impressive bass to any commercial sound installation. The 300-watt Bose Professional DM10P-SUB is a 10-inch pendant subwoofer with a 40–125 Hz frequency range and has a recessed single-point suspension system for a sleek, attractive appearance and is available in black or white.

Features
  • Complete any commercial sound installation with 16 DesignMax loudspeakers to mix and match, including in-ceiling, surface-mount, and pendant form factors, subwoofers, high-SPL compression-driver models, compact low-profile models, and outdoor-rated options
  • Choose from three DesignMax subwoofer models — the 180-watt in-ceiling DM8C-SUB, the 300-watt surface-mounted DM10SSUB, and the sleek 300-watt DM10P-SUB pendant subwoofer
  • Deliver rich bass performance with custom Bose drivers; for optimal performance, use select Bose DSPs and amplifiers to enable Bose loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
  • Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
  • Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier
  • Provide an open, attractive aesthetic with pendant loudspeakers featuring a recessed single-point suspension system that keeps hardware out of sight and can be used to hold and hide a service loop for easy access

Specifications
Frequency Response (-3 dB) 46 – 108 Hz
Frequency Range (-10 dB) 40 – 125 Hz
Nominal Coverage Angle Omnidirectional below 200 Hz
Power Handling, Long-Term Continuous Bose extended-life cycle test: 250W
AES transducer test: 300W
Power Handling, Peak Bose extended-life cycle test: 1000W
AES transducer test: 1200W
Sensitivity (SPL/1W @ 1 m) Bose extended-life cycle test: 85dB
AES transducer test: 85dB
Calculated Maximum SPL @ 1 m Bose extended-life cycle test: 109dB
AES transducer test: 110dB
Calculated Maximum SPL @ 1 m, Peak Bose extended-life cycle test: 115dB
AES transducer test: 116dB
Loudspeaker EQ Not required, Bose EQ voicing, and SmartBass processing available
Recommended Crossover 80 – 200 Hz (requires active crossover in DSP)
Transformer Taps 70V: 20, 40, 80, 150W, bypass
100V: 40, 80, 150W, bypass
Drivers Low Frequency: 1 x 10-inch woofer (133 mm)
Nominal Impedance 8Ω (transformer bypass)
Enclosure Material Engineered-plastics
Grille Perforated steel, powder-coated finish
Logo Rotatable, removable
Color White: Bose Arctic White, similar to RAL 9003, paintable
Environmental Indoor only
Safety Agency UL-1480A, S5591/UL Listed, NFPA70 & NFPA90-A, CE compliant, UL 2239 for suspension cable
Operating Temperature Range 0 °C to 50 °C (32 °F to 122 °F)
Connectors Euroblock 6-pin connector with loop-through, mounted on top. Accepts 18 AWG (0.8 mm2) to 14 AWG (2.5 mm2) size wire
Suspension/Mounting Each DM10P-SUB has one (1) suspension attachment point and one (1) safety cable attachment point. Included is one (1) 4.5 meter (15 foot) Gripple adjustable suspension cable
Optional Accessories Threaded Rod Adapter, Conduit Adapter
Dimensions (Enclosure Dia x D) 15.7" (400 mm) x 15.1" (383 mm)
Net Weight 19.7 lbs (8.9 kg)
Shipping Weight 27.89 lbs (12.65 kg)

DOCUMENTS

Related Products

Bose DesignMax DM6PE Pendant Loudspeaker

Bose Professional DesignMax DM6PE 6.5" 70/100 Volt 400W IP55 Rated Outdoor Pendant Loudspeakers - White Pair

Bose DesignMax DM6PE IP55 Rated Outdoor Pendant-Mount Hanging Speaker With a coaxial two-way design, the 125-watt DesignMax DM6PE loudspeaker offers rich lows and clear, intelligible highs — along...
MSRP: $999.00
$799.00

Usually arrives in 5-9 business days.

MSRP: $999.00
$799.00
Add to Cart The item has been added

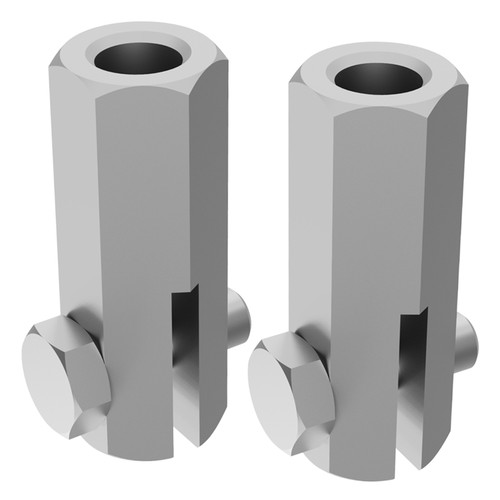

DesignMax Pendant Threaded Rod Adapters Bose DesignMax Pendant Threaded Rod Adapter
