Bose Professional RoomMatch Utility RMU108 8" Small Format Sound Reinforcement Loudspeaker - Black (Discontinued)

Bose Professional RoomMatch Utility RMU108 8" Small Format Sound Reinforcement Loudspeaker - Black (Discontinued)

Name: Bose Professional RoomMatch Utility RMU108 8" Small Format Sound Reinforcement Loudspeaker - Black (Discontinued)
Brand: Bose Professional
SKU: BOSE-638349-0110

Write a Review

Part #:

638349-0110

Model #:

RoomMatch Utility RMU108

Current Stock:

Availability: No Longer Available

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Description

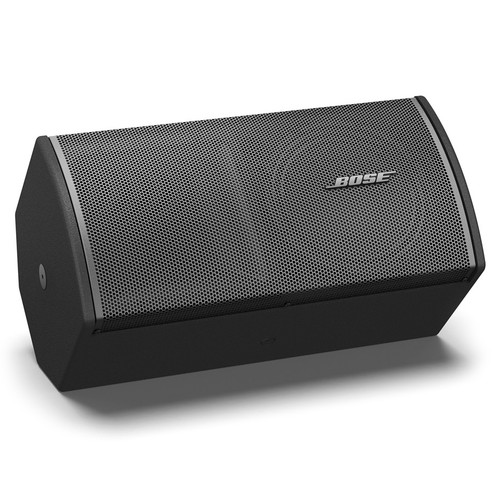

Bose RoomMatch Utility RMU108 Small-Format Sound Reinforcement Loudspeaker
for Under-Balcony and Zone Fill, Stage-Front Fill and Vocal-Range Floor Monitor

The Bose RoomMatch Utility RMU108 small-format sound reinforcement loudspeaker is intended for use in high-quality foreground music, under-balcony, zone fill, and vocal-range floor monitor applications. The design features a single Bose® EMB2 compression driver to provide mid/high frequency voicing similar to that of RoomMatch full-range array modules and all RoomMatch Utility models. A single 8-inch woofer provides full-range output and a multi-angle enclosure with rotatable high-frequency waveguide increases mounting flexibility.

Applications:

Under-balcony and zone fill
High-quality foreground music
Stage-front fill
Vocal-range floor monitor

Features

Award-winning RoomMatch sound – now in smaller, 2-way, point-source designs for high-level foreground music, under-balcony, zone-fill, and vocal-range floor monitor applications
Bose EMB2 compression driver – for lower distortion and improved vocal clarity compared to conventional foreground/fill models; also provides consistent mid/high sonic character compared to that of RoomMatch full-range and other RoomMatch Utility models
90° x 60° constant-directivity high-frequency horn – gives wide, even coverage and may be rotated in enclosure
1 x Bose LF8 8-inch woofers – with 2.0-inch long-excursion voice coil extends response to 80 Hz for lowest vocal range
80 Hz – 16 kHz frequency response and 121 dB maximum peak SPL – deliver the performance required for most demanding applications
Flexible mounting with included U-bracket – rear enclosure panel also includes 4 x M8 threaded inserts in 5.0” x 2.75” (127mm x 70mm) pattern to accept third-party accessory mounting brackets

Specifications

Frequency Response (+/-3 dB)	90 Hz - 16 kHz
Frequency Range (-10 dB)	80 Hz - 16 kHz
Recommended High-Pass Protection Filter	80 Hz with minimum 12-dB / octave filter
Nominal Coverage Pattern (H x V)	90° x 60° (rotatable high-frequency horn)
Crossover Type	Passive (1.5 kHz crossover frequency)
Power Handling (Long-Term Continuous)	Bose extended-lifecycle test / AES transducer test 200 W / 250 W
Power Handling (Peak)	Bose extended-lifecycle test: 800W AES transducer test: 1000W
Sensitivity (SPL / 1 W @ 1 m)	Bose extended-lifecycle test: 91 dB AES transducer test: 91 dB
Calculated Maximum SPL @ 1 m	Bose extended-lifecycle test: 114 dB AES transducer test: 115 dB
Calculated Maximum SPL @ 1 m, peak	Bose extended-lifecycle test: 120 dB AES transducer test: 121 dB
Transducers
Low Frequency	1 x Bose LF8 high-excursion 8-inch woofers (2-inch voice coil)
High Frequency	1 x Bose EMB2 extended-midband high-frequency compression driver (2-inch voice coil)
Nominal Impedance	8 Ω
Physical
Finish	Two-part spray polyurethane coating, black
Grille	18-gauge (1.2 mm) perforated steel, powder-coated finish, black
Environmental	Indoor use only
Connectors	Indoor use only
Suspension / Mounting	2 x M8 threaded inserts (1 each side) for U-bracket 4 x M8 threaded inserts on rear surface (127 x 70 mm, 4-bolt pattern), 2 x M8 threaded inserts on bottom for stand adapter
Dimensions (H x W x D)	9.3" (236 mm) x 18.5" (470 mm) x 10.5" (267 mm)
Weight	21 lbs (9.5 kg)
Weight (with U-bracket)	26 lbs (11.8 kg)
