CHAUVET DJ Intimidator Spot 355 IRC LED Moving Head Spot (Discontinued)

Description

Details

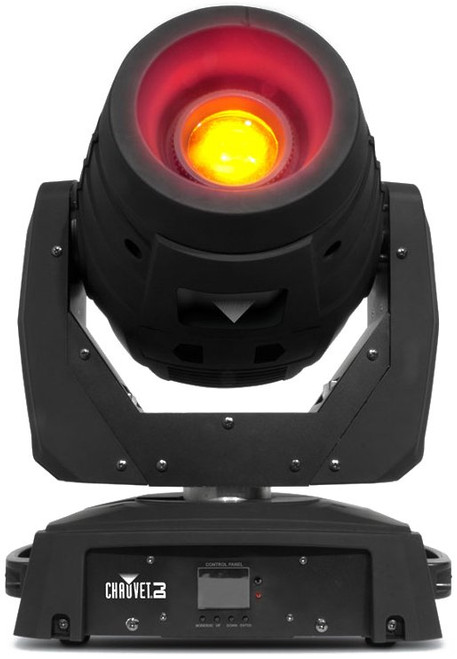

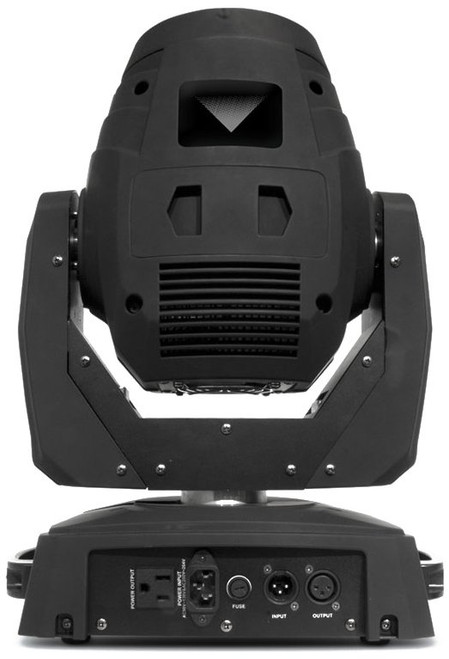

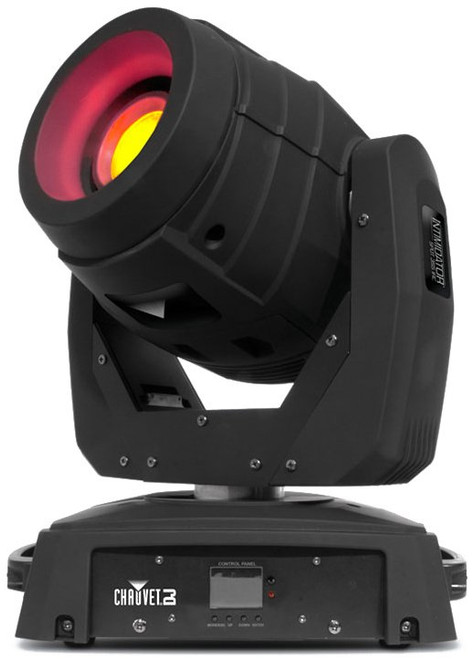

The CHAUVET DJ Intimidator Spot 355 IRC is a feature-packed moving head spot fitted with a 90W LED. The rotating 3-facet prism can split the beam to expand the coverage area while the manual zoom can increase the throw distance. Other features include an easy-access gobo door that makes it simple to change gobos for customized looks and a Totem mode that keeps beams focused on the dance floor. Up to four fixtures can be linked to create eye-catching, synchronized shows in automated or sound mode. Set, save, and recall one scene directly from the full-color LCD display. Generate a synchronized show in master/slave mode with easy-to-access, built-in automated programs.

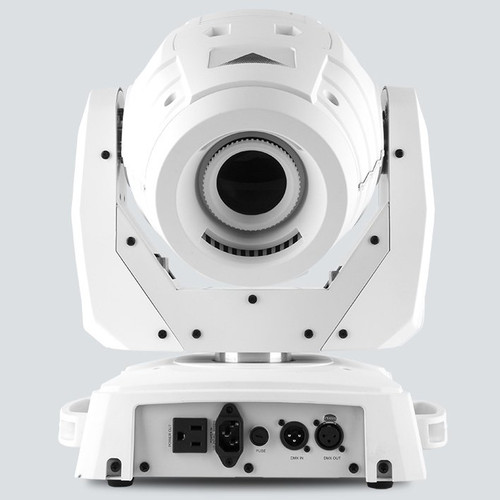

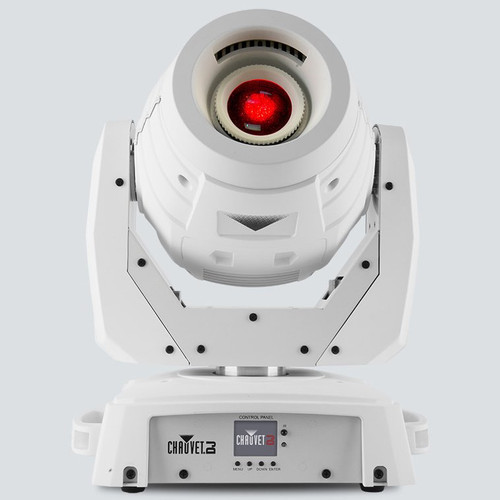

Wireless (non-DMX) control is possible using the optional IRC-6 remote. Multiple units can be power linked to save time running cables and extension cords. Travels safely in the optional flight case Intimidator Road Case S35X or CHS-50 VIP Gear Bag. Available in black or white.

Features

Features

Feature-packed moving head spot fitted with a 90W LED to enhance any event or application
Beams always remain on the dance floor using the built-in, innovative Totem mode
Set, save, and recall 1 scene manually, directly from the full-color LCD display
Link up to 4 fixtures to create eye-catching, synchronized shows in Automated or Sound mode
Convenient, wireless non-DMX control using the optional IRC-6 remote
Split the beam and cover a larger area with the rotating 3-facet prism
Project crisp gobos from nearly any distance with the motorized focus
Quickly and easily change gobos using the easy-access gobo door
Throw light farther by decreasing the beam angle 5° using the manual zoom
Save time running cables and extension cords by power linking multiple units
Generate a synchronized show in Master/Slave mode with easy-to-access, built-in automated programs

Specification

DMX Channels	8 or 14
DMX Connectors	3-pin XLR
Pan and Tilt	540° / 240°
Pan and Tilt Ranges	540°, 360°, 180° pan/240°, 180°, 90° tilt
Colors	8 + white, split colors, continuous scroll at variable speeds
Gobos	7 + open (5 metal + 2 glass), rotating, interchangeable, indexing, continuous scroll at variable speeds
Light Source	1 LED (white) 90W (24.2 A), 50,000 hours life expectancy
Strobe Rate	0 to 15.2 Hz
PWM Frequency	1.20 kHz
Illuminance	(12°): 21,810 lux @ 2 m (17°): 9,400 lux @ 2 m
Power Linking	4 units @ 120 V; 7 units @ 230 V
Input Voltage	100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current	186W, 1.7 A @ 120 V, 60 Hz 179W, 1 A @ 230 V, 50 Hz
Gobo Size	24 mm outside, 20 mm image, 1.1 mm max thickness
Zoom Angle	Manual: 12° to 17°
Approvals	CE
Series	Intimidator
Primary Use	DJ/Mobile, Bands/Stages, Events, Clubs, Party
Prism	3-facet round, static, bidirectional rotation at variable speeds
Dimensions (H x W x L)	15.4" (392 mm) x 13.4" (340 mm) x 10.6" (268 mm)
Weight	24.6 lbs (11.2 kg)
