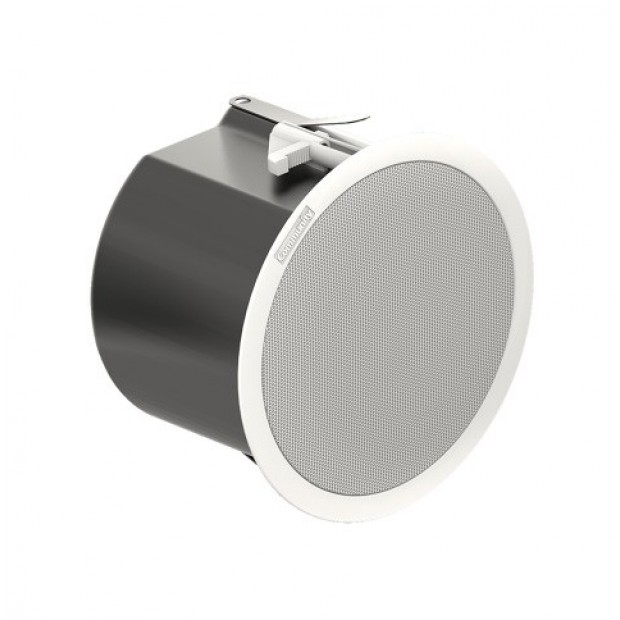

The Community C6 6.5 inch Two Way In-Ceiling Loudspeaker has a more focused dispersion and a greater low frequency extension than the smaller C4. It contains a proprietary Tru-Phase waveguide that produces a consistently wide conical polar response up to 16 kHz.

Description

The C6 6.5 inch Two Way In-Ceiling Loudspeaker has a more focused dispersion and a greater low frequency extension than the smaller C4. It contains a proprietary Tru-Phase waveguide that produces a consistently wide conical polar response up to 16 kHz. The C6 features a genuine coaxial design using separate magnets for the LF and HF drivers for reduced distortion and high sensitivity, thereby permitting up to 3 dB greater output level while requiring up to half the amplification power of competing products. The C SERIES ceiling loudspeakers are all ETL listed, and have similar sensitivity and output capabilities.

Features

High intelligibility with exceptional uniform coverage
Consistent, wide dispersion up to 16 kHz
True coaxial loudspeakers with HF compression drivers
Tru-Phase high-frequency waveguide
Spring loaded Drop-Stop installation assistant tabs support the back can on the included rails simplify installation
Uniquely designed tile bridge support rails prevent ceiling tile sagging
External loop-through Euroblock connectors
Rear cover with integrated cable clamp (strain relief) and optional conduit knockout
Face-mounted adjustable tap position selector switch
Selectable 8 ohm or 70V/100V operation

Specifications

Operating Range	70 Hz - 13.5 kHz (-10 dB)
Frequency Response	115 Hz - 12.5 kHz (-3 dB)
Max Input Ratings (8 ohm)	60W continuous, 150W program 21.9 volts RMS, 43.8 volts momentary peak
Transformer Taps	70V: 30W, 15W, 7.5W, 3.75W, and 8 ohm selectable 100V: 30W, 15W, 7.5W, and 8 ohm selectable
500 Hz	2nd Harmonic : 0.33%, 3rd Harmonic : 0.55%
2 kHz	2nd Harmonic : 1.11%, 3rd Harmonic : 0.80%
8 kHz	2nd Harmonic : 2.49%, 3rd Harmonic : 0.21%
500 Hz	2nd Harmonic : 0.25%, 3rd Harmonic : 0.06%
2 kHz	2nd Harmonic : 0.67%, 3rd Harmonic : 0.23%
8 kHz	2nd Harmonic : 0.30%, 3rd Harmonic : 0.06%
Sensitivity (1W/1m)	91 dB SPL (125 Hz to 12.5 kHz 1/3 octave bands) 91 dB SPL (250 Hz to 4 kHz speech range)
Maximum Output	8Ω: 109 dB SPL / 115 dB SPL (peak) 70V: 106 dB SPL / 112 dB SPL (peak) 100V: 106 dB SPL / 112 dB SPL (peak)
Nominal Impedance	8 ohms
Minimum Impedance	7 ohms @ 10 kHz
Nominal Coverage	120º conical (1 kHz to 6 kHz ±65°), 120° conical (500 Hz to 6 kHz ±65°)
Axial Q / DI	4.9/6.9, 500 Hz to 6 kHz
Crossover Frequency	2 kHz
Recommended Signal Processing	100 Hz, at 24 dB per octave high pass filter
Drivers	LF 1 x 6.5" cone, HF 1 x 3/4" exit compression driver
Driver Protection	Self-resetting solid state circuit breaker
Input Connection	4-pole Euroblock connector with two pair of non-interrupt parallel connections
Controls	Front-face wattage / low impedance selector switch
Enclosure	Corrosion-resistant zinc plated steel
Finish	White or black
Mounting/Rigging Provisions	2 ABS mounting clamps with 1.75" grip range
Grille	Powder coated steel with safety line, white or black finish, paintable
Baffle	Reflex loaded UL 94V-0 rated ABS
Safety Features	2 x safety hang points
Required Accessories	Electronic high pass filter
Supplied Accessories	Tile support bridge rails, grille, paint mask, cut-out template, flat screwdriver
Cutout Diameter	8.86" (225 mm)
Dimensions (Dia x D)	9.80" (248.9 mm) x 6.49" (164.8 mm)
Net Weight	7.1 lbs (3.2 kg)
