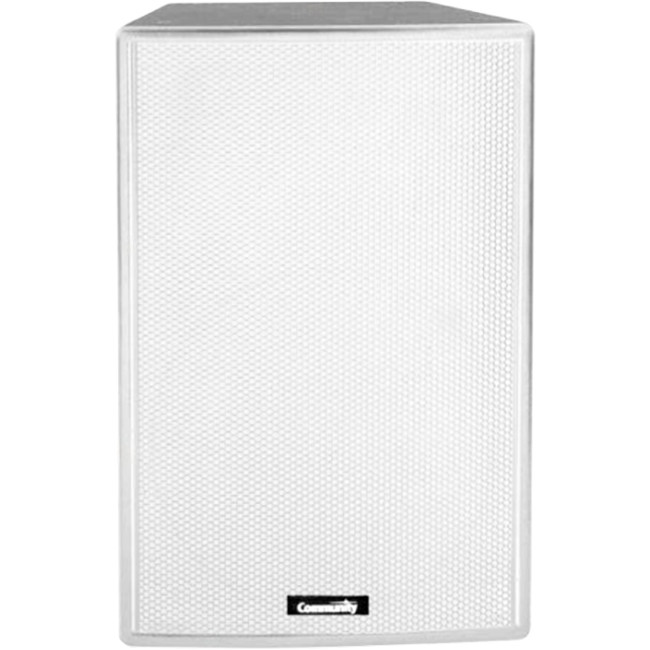

The V2-1296W is a compact yet powerful 12-inch, two-way, full-range loudspeaker designed for a wide range of fixed installation applications. Finished in white, it is ideal for venues such as houses of worship, multipurpose auditoriums, clubs, and theaters where discreet integration with architectural aesthetics is important.
With its 90° x 60° dispersion pattern, the V2-1296W provides broad, even coverage, making it particularly effective in rooms that are wider than they are deep. Its trapezoidal enclosure allows clustering with additional units to create powerful, high-output arrays, while M10 threaded rigging points and multiple bracket options provide versatile mounting flexibility.
Equipped with Dyna-Tech driver protection circuitry, a ferrofluid-treated HF driver, and Carbon Ring Cone Technology for enhanced LF response, the V2-1296W delivers tight, punchy bass, low distortion, and clear intelligible sound reproduction. It includes both terminal strip and NL4-compatible connectors for straightforward system integration.
Optimized for use with the Community ALC404D Amplified Loudspeaker Controller (with support for higher-powered ALC models as well), the V2-1296W ensures reliable performance and system protection. With its balance of power, precision, and aesthetics, the V2-1296W is an excellent solution for professional installations.
| Operating Range | 60 Hz to 18 kHz (-10 dB) |
|---|---|
| Frequency Response | 90 Hz to 16 kHz (±3 dB) |
| Max Input Ratings | 200W continuous, 500W program 40 volts RMS, 80 volts momentary peak |
| Sensitivity (1W/1m) | 98 dB (100 Hz to 12.5 kHz) free space |
| Maximum Output | 121 dB SPL / 127 dB SPL (peak) |
| Nominal Impedance | 8 ohms |
| Minimum Impedance | 6.2 ohms @ 160 Hz |
| Nominal –6 dB Beamwidth | 90° H x 60° V (in vertical position) |
| Crossover Frequency | 1.3 kHz |
| Recommended Signal Processing | 60 Hz, 24 dB/octave Butterworth high pass filter |
| Drivers | LF 1 x 12" cone HF 1 x 1" |
| Driver Protection | DYNA-TECH protection circuitry |
| Input Connection | NL4-compatible locking connector with terminal strip in parallel |
| Enclosure | Trapezoidal (22.5° included angle) 18 mm, 11-ply cross-laminated birch |
| Mounting/Rigging Provisions | 13 x M10 threaded rigging fittings 4 x M8 threaded fittings for third-party suspension products |
| Finish | Catalyzed polyester two-part paint, white |
| Grille | Powder coated steel, white finish |
| Dimensions (H x W x D) | 23.9" (608 mm) x 15.4" (390 mm) x 14.3" (362 mm) |
| Weight | 38.4 lbs (17.4 kg) |
| Shipping Weight | 48.4 lbs (21.95 kg) |
