This auditorium line array sound system features four TOA HX-7 variable dispersion speakers with hi-frequency drivers that improve output, power handling and provide enhanced vocal intelligibility. HX-7's power handling and distance coverage are increased when stacked together vertically. The two TOA FB-150 15" compact subwoofers, designed for use in conjunction with HX-7s, are ideal for reproducing dynamic low-frequency sound for both permanent and temporary installations. The smooth-operating Yamaha TF3 digital mixing console provides ample opportunity for creativity, its fluid TouchFlow Operation allows for effortless speed and freedom in responding to your onstage music. The astonishing level of refinement and sound quality you'll achieve in your mix is remarkably easy. This suspended line array speaker sound system with a digital 24-channel mixer is perfect for auditorium sound reinforcement.

Sound System Features:

• HX-7's wavefront control technology is ideal for reproducing clear sound in spaces with long reverberation times or high background noise
• Hi-frequency drivers improve output, power handling, and provides enhanced intelligibility
• FB-150 subs are ideal for reproducing dynamic low-frequency sound for both permanent and temporary installations
• DBR10 monitors are capable of delivering a maximum SPL of 129dB from its highly portable compact enclosure
• The PX8 power amplifier combines intelligent processing with high output power
• The TF3 mixer's fluid TouchFlow Operation lets you respond to the music onstage with effortless speed and freedom
• Tio1608-D's 16 high-quality mic preamps are controllable from right your console

About the System Components

This Pro Acoustics designed sound system includes four 750W TOA HX-7 variable dispersion speakers, two TOA FB-150 15" compact subwoofers, two 700W Yamaha DBR10 10" powered loudspeakers, three Yamaha PX8 2 x 1050W stereo power amplifiers with flexible onboard PEQ, crossover, filters, delay, and limiter functions, a Yamaha TF3 24-channel digital mixing console, a Yamaha Tio1608-D Dante equipped I/O rack with 16 microphone/line inputs and 8 line outputs, two TOA HY-PF7 rigging frames for FB-150 and HX-7, two TOA HY-CN7B-WP speaker connection bracket kits, a Gator GR-STUDIO-8U 19" studio rack, six 3' CBI MLN-3 XLR microphone cables, two 50' CBI MLN-50 XLR microphone cables, and 250' of West Penn 227 12/2 non-plenum speaker wire.

Not sure if this is the right Auditorium Sound System solution for you?
Call our sales team at (888) 256-4112 or click the Add to Quote button to request a customized sound system that fits your needs.

TOA HX-7 Variable Dispersion Speakers:

• 4 cell configuration each incorporating:
• (2) 5" Low-frequency drivers
• (1) Center-mounted, waveguide-loaded, 1"-exit compression driver
• Flexible vertical angle adjustment between 0° and 45° (60° with second HX-7 and optional adapter)
• Power handling: 750W Continuous Program @ 8 Ohms
• 100dB sensitivity (1W @ 1m)
• Optional hardware for stand, wall, ceiling and flown installations
• Black or White and weather-proof (WP) versions available



TOA FB-150 15" Subwoofers:

• Continuous pink noise: 200W
• Continuous program: 600W
• Impedance: 8 ohms



Yamaha DBR10 10" 2-Way 700W Powered Loudspeakers:

• 700W class D power
• Lightweight enclosure
• Broad coverage
• FIR-X tuning for excellent sound quality with high resolution and a smooth frequency response
• D-Contour optimizes the DBR10 for main speaker or floor monitor use
• Onboard mixer lets you select either a direct output or a mixed output
• Comprehensive inputs for mixer, musical instrument, or media players
• Amplifier and power supply design provides powerful output from a compact speaker
• DSP-controlled protection functionality promotes optimum reliability

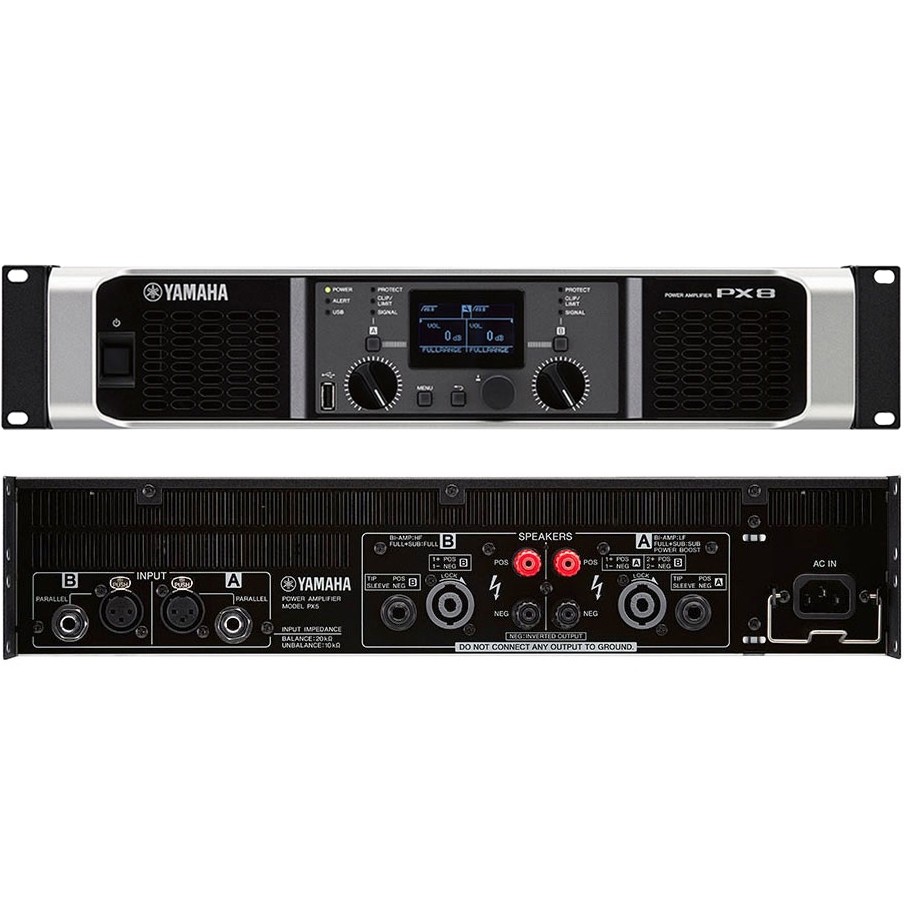

Yamaha PX8 2 x 1050W Stereo Power Amplifiers:

• 2x 800W at 8Ω
• 2x 1050W at 4Ω
• Newly developed Class-D amplifier engine with a custom LSI
• Flexible onboard PEQ, crossover, filters, delay, and limiter functions
• Yamaha Speaker presets
• Utilities for safe and secure operation

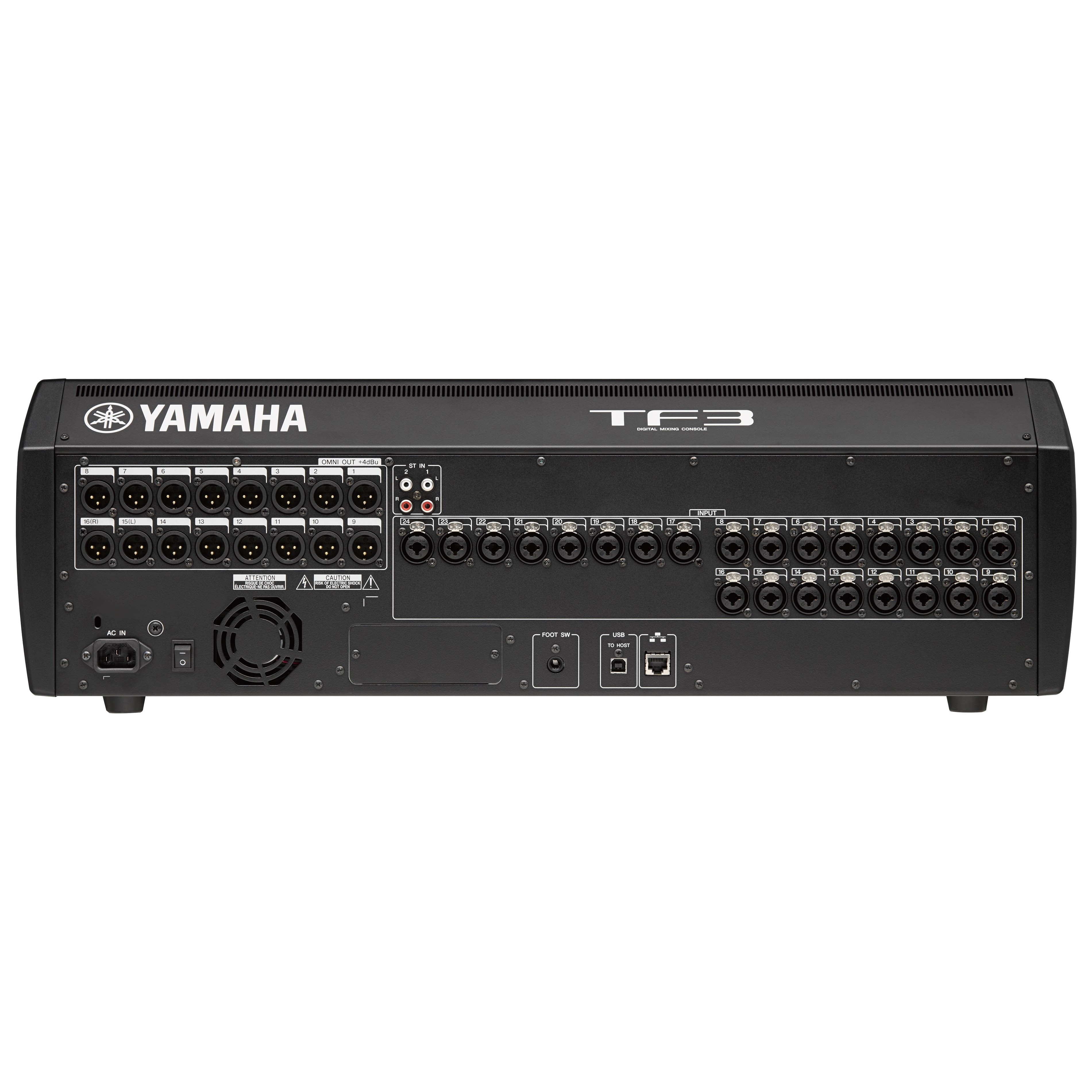

Yamaha TF3 24 Channel Digital Mixing Console:

• 25 motor faders (24 channels + 1 master)
• 48 input mixing channels (40 mono + 2 stereo + 2 return)
• 20 Aux (8 mono + 6 stereo) + Stereo + Sub buses
• 8 DCA groups with Roll-out
• 24 analog XLR/TRS combo mic/line inputs + 2 analog RCA pin stereo line inputs
• 16 analog XLR outputs
• 34 x 34 digital record/playback channels via USB 2.0 + 2 x 2 via a USB storage device
• 1 expansion slot for NY64-D audio interface card



Yamaha Tio1608-D Dante Equipped I/O Rack:

• Digital stage box for Yamaha TF series consoles
• 16 high-quality mic preamps are controllable from your console
• Connect up to 3 simultaneously for 48 inputs and 24 outputs
• Requires NY64-D Dante interface card (sold separately)
• Connects to TF series consoles via standard Cat 5e LAN cable (sold separately)

• (4) TOA HX-7 75 Hz - 20 kHz Variable Dispersion 750W Speakers
• (2) TOA FB-150 15" Subwoofers - Black
• (2) Yamaha DBR10 10" 2-Way 700W Powered Loudspeakers
• (1) Yamaha TF3 24 Channel Digital Mixing Console
• (3) Yamaha PX8 2 x 1050W Stereo Power Amplifiers
• (1) Yamaha Tio1608-D Dante Equipped I/O Rack
• (1) Gator GR-STUDIO-8U 19" Studio Rack
• (2) TOA HY-PF7 Rigging Frames for FB-150 and HX-7 - Black
• (2) TOA HY-CN7B-WP Speaker Connection Brackets - Black
• (1) CBI Ultimate CAT5E Heavy Duty 100% Shielded 4 Pair Neutrik Ethercon NE8MC Cable - 100ft
• (1) West Penn 227 12/2 Non-Plenum Audio Speaker Wire - 250ft

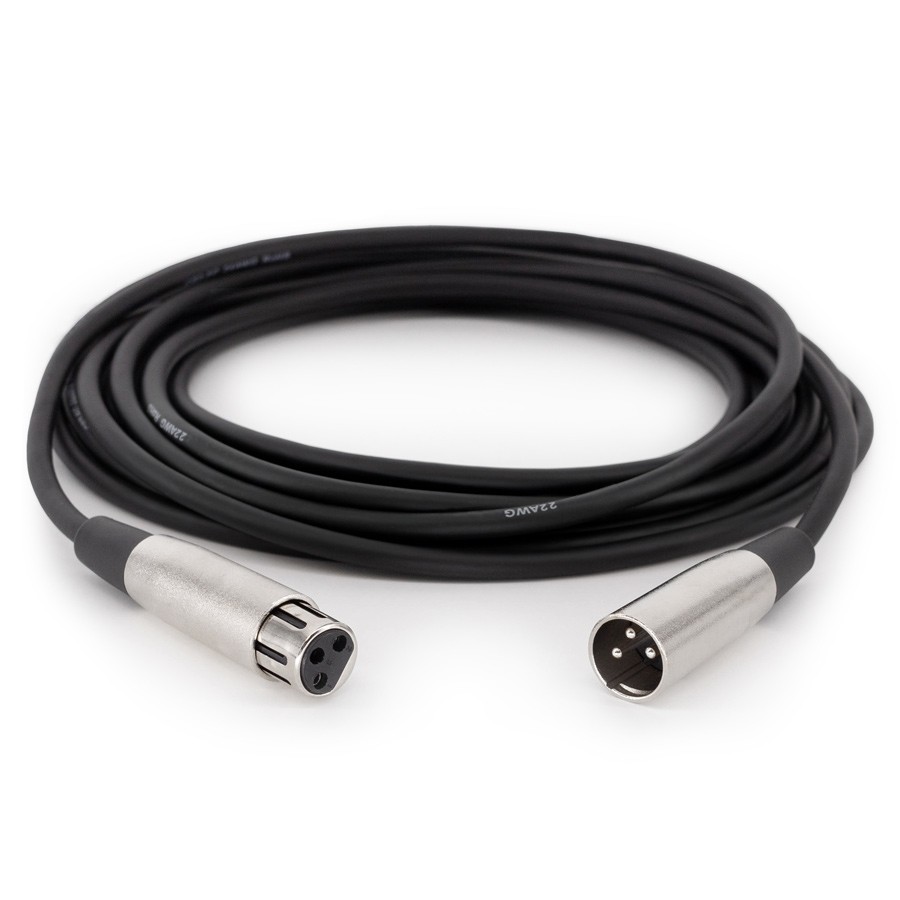

• (6) CBI MLN-3 XLR Microphone Cables - 3ft
• (2) CBI MLN-50 XLR Microphone Cables - 50ft
