Inside the Design

This conference audio system with a video camera features a Pure Resonance Audio VCA8 vector ceiling speaker array that provides 360° of incredible audio coverage, a Pure Resonance Audio MA120BT 120W mixer amplifier with built-in Bluetooth, a PTZOptics PT12X-USB-GY-G2 12x zoom camera with 3.0 USB, an ART USBMIX6 microphone, instrument, and line mixer/computer audio interface for your computer that converts analog signals from a variety of audio sources to digital audio and eight MIPRO gooseneck microphones perfect for video conferencing.

Sound System Features:

• 360° x 180° Coverage: The speakers' pyramid design fits into standard 2'x2' or 2'x4' ceiling tile grid, providing 360° of hemispheric sound
• Easy to Install: It takes just minutes to install. Simply take out one ceiling tile and lay-in the VCA8 into any standard 2' x 2' drop ceiling tile grid system
• Bluetooth Streaming: The MA120BT mixer amplifier supports playback from Bluetooth-enabled devices such as PCs, tablets or mobile phones and has inputs for microphones, CD/DVD players, projectors, laptops, computers, and other devices
• Six-Channel USB Mixer: An incredibly versatile mic/line mixer that also acts as an audio interface for your Mac or PC
• PTZ Camera: 1080p camera with 12X optical zoom for capturing HD images at long distances and supports USB 3.0, HDMI, and IP streaming
• Discussion Microphones: Uni-directional condenser gooseneck microphones that provide clear and natural vocal audio for conference and meeting rooms


About the System Components

This audio system for video conferences includes a Pure Resonance Audio VCA8 120W vector ceiling speaker array, a Pure Resonance Audio MA120BT 7-channel 120W commercial mixer amplifier with Bluetooth, an ART USBMix6 6-channel USB mixer, a PTZOptics PT12X-USB-GY-G2 12X zoom 1080p USB 3.0 camera with a PT-CM-1-BK universal ceiling mount, eight MIPRO MM-202 cardioid condenser gooseneck microphones with eight MIPRO BC-100 wireless boundary microphones and gooseneck base and eight MIPRO ACT-70TC UHF rechargeable miniature bodypack transmitters that fit underneath the gooseneck base. Also included are two MIPRO ACT-74 wideband quad-channel UHF true diversity receivers, four MIPRO MP-80 two-slot charging stations for ACT rechargeable transmitters, an ART PB4X4 PRO USB power distribution system with 2 USB charging ports, a DBX AFS2 advanced feedback suppression processor, four 3' XLR patch cables, two 3' 1/4" male TRS to female XLR cables and 100' of 16/2 non-plenum audio speaker wire.

Not sure if this is the right Conference Room Sound System solution for you?
Call our sales team at (888) 256-4112 or click the Add to Quote button to request a customized sound system that fits your needs.

Pure Resonance Audio VCA8 Vector Ceiling Speaker Array:

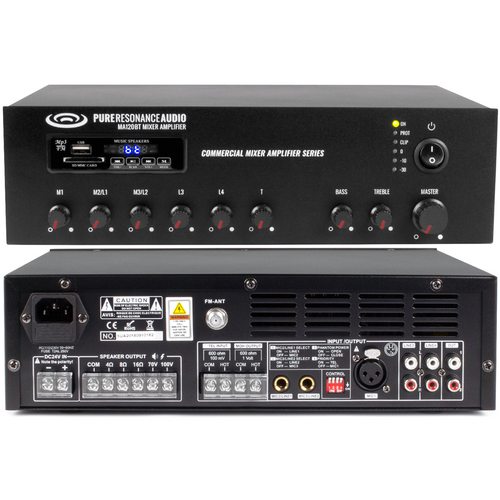

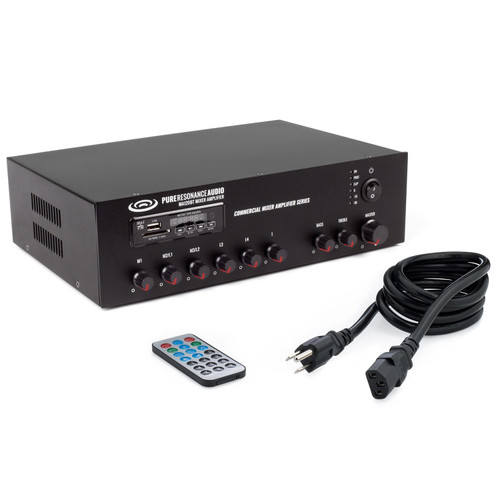

Pure Resonance Audio MA120BT 7-Channel 120W Bluetooth Mixer Amplifier:

• 7-channel powered mixer amplifier (6 inputs + Bluetooth Media Player)
• Volume Controls for Mic 1-3, Line 1-2, MP3/FM Radio, Bass, Treble and Master
• MP3 Player, FM Radio & Bluetooth (with IR remote control)
• USB and SD inputs on front panel
• Power output rating 120 Watts
• Built-in 70V/100V transformer
• Speaker outputs: 70V, 100V, 4, 8 and 16 Ohms
• Mic 1 of balanced XLR input (with phantom power)
• Mic 2-3 microphone or line switchable
• Line 1-2 input of RCA inputs
• DIP switches for Mic/Line, phantom power and microphone priority
• Unbalanced 6.3 mm phone jack input
• One RCA line output (0.775 line level 0 dBV)
• Telephone input (600 Ohm/100mV) with VOX priority and MOH (Music on Hold) (600 Ohm 1 Volt)
• LED indicators for power clip, protect signal, Mic 1-3, Line 1-2 and telephone inputs
• Short-circuit, clip, overload and high temp protection
• 24 VDC Emergency backup supply
• 115V 60 Hz & 24V DC both operation system

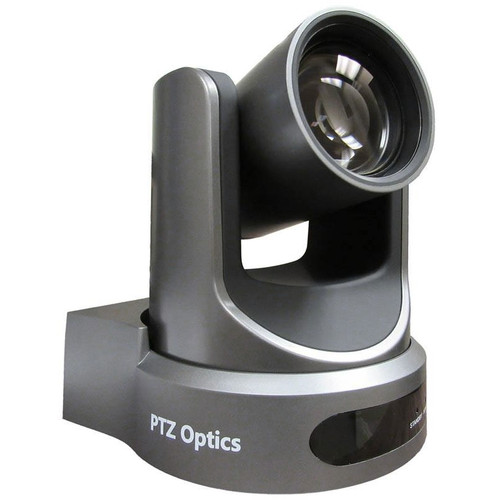

PTZOptics PT12X-USB-GY-G2 12X Zoom 1080p USB 3.0 Camera:

• 72.5 degree wide-angle lens
• High performance in low light scenarios with Wide Dynamic Range
• Full 1920x1080p HD Resolutions up to 60 frames per second
• 2D and 3D noise reduction with our latest "low noise CMOS sensor"
• UVC 1.5 (USB), RS232 & RS485 (Serial), and IP (LAN/WAN) control
• H.264, H.265, & MJPEG Streaming over RJ-45 LAN port
• HDMI, USB 3.0, & IP streaming (all 3 simultaneously)
• RTMP & RTSP IP streaming
• Photobooth capable

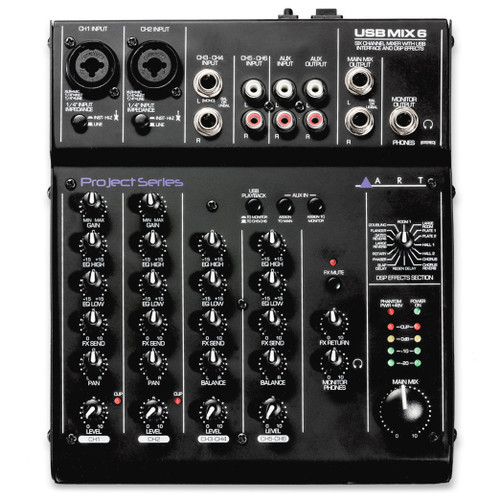

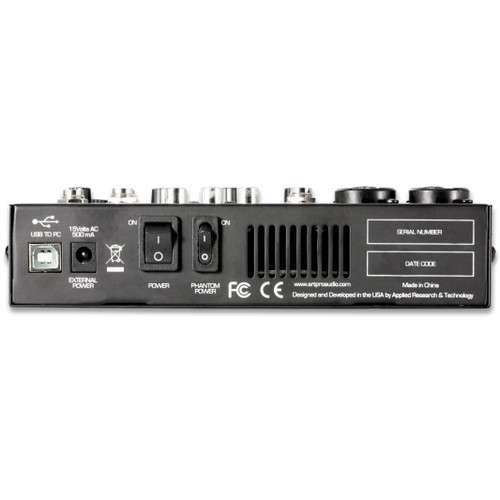

ART USBMix6 6-Channel USB Mixer:

• High performance low noise design
• Six discrete inputs (2 x mic / 2 x stereo line level)
• Switchable +48v phantom power (CH1 and CH2)
• High and Low EQ on each input channel
• Integrated stereo multi-FX with adjustable sends and returns
• Stereo LED metering
• Independent level controls for main and headphone/monitor outputs
• Integrated class compliant plug-and-play USB audio for Mac and PC

• (1) Pure Resonance Audio VCA8 120W Vector Ceiling Speaker Array
• (1) Pure Resonance Audio MA120BT 7-Channel 120W Commercial Mixer Amplifier with Bluetooth
• (1) ART USBMix6 6-Channel USB Mixer
• (1) PTZOptics PT12X-USB-GY-G2 12X Zoom 1080p USB 3.0 Camera
• (1) PTZOptics PT-CM-1-BK Universal Ceiling Mount
• (8) MIPRO MM-202 Cardioid Condenser Gooseneck Microphones

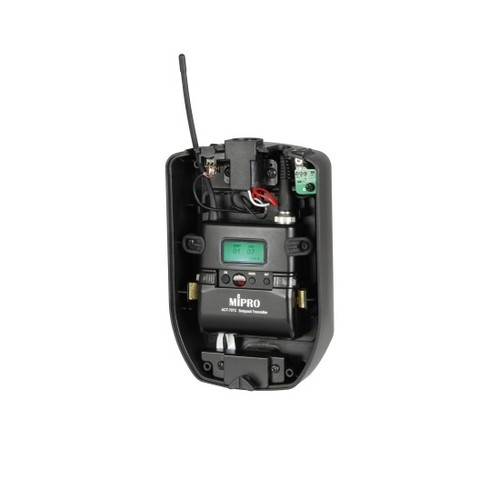

• (8) MIPRO BC-100 Wireless Boundary Microphones and Gooseneck Base

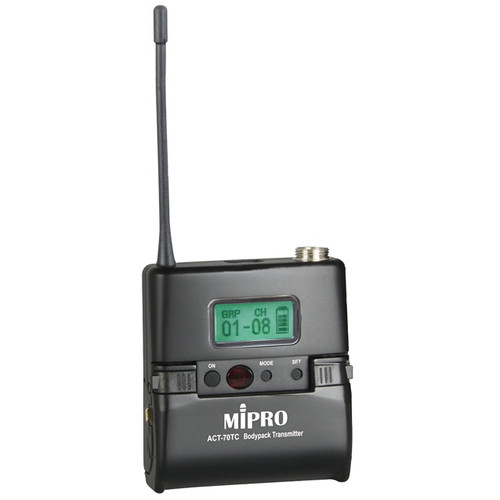

• (8) MIPRO ACT-70TC UHF Rechargeable Miniature Bodypack Transmitters

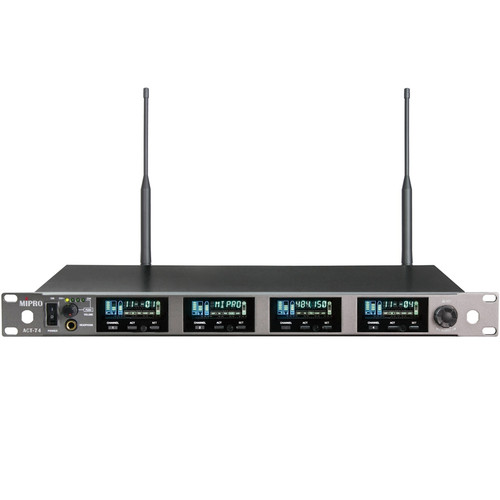

• (2) MIPRO ACT-74 Wideband Quad-Channel UHF True Diversity Receivers

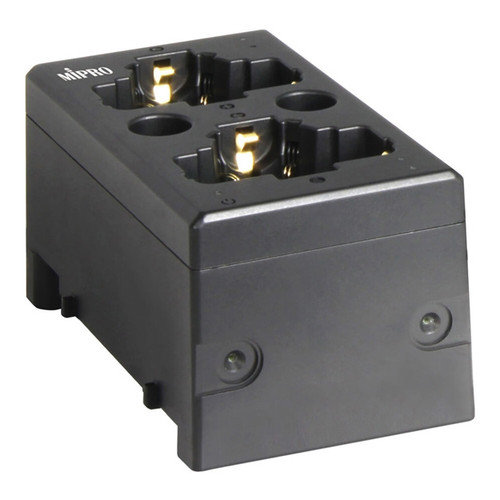

• (4) MIPRO MP-80 Two-Slot Charging Stations for ACT Rechargeable Transmitters

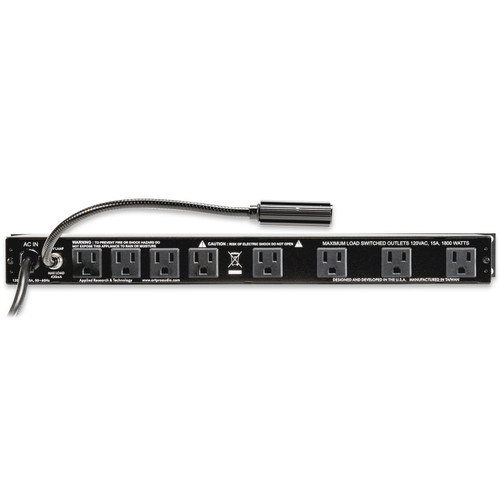

• (1) ART PB4X4 PRO USB Power Distribution System with 2 USB Charging Ports

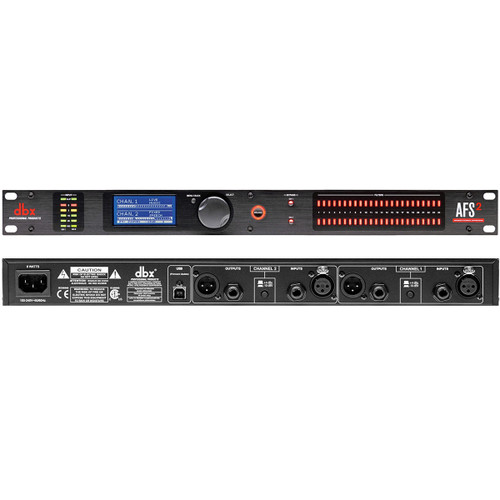

• (1) DBX AFS2 Advanced Feedback Suppression Processor

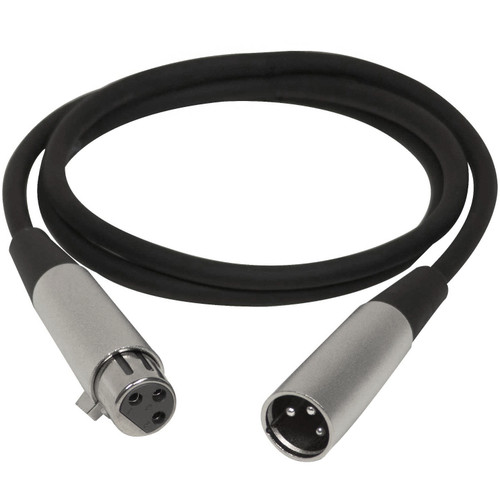

• (4) CBI MLN-3 XLR Patch Cables - 3ft
• (2) CBI BLB-3 1/4" Male TRS to Female XLR Cables- 3ft
• (100') West Penn 225 16/2 Non-Plenum Audio Speaker Wire
