Details

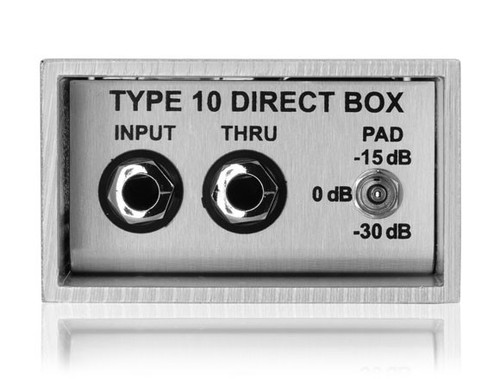

Type 10 DI box is the ideal counterpart to our classic Type 85, combining the exceptional ruggedness and versatility of the Type 85 with an advanced design that sets a new standard for pure performance.
Most direct box designs must make difficult tradeoffs with your sound: ultra-low distortion can only be attained by increasing input noise; true ground isolation means high phase deviation or signal attenuation. The Type 10 takes a radically new approach, with an analog circuit that tunes itself to deliver your sound with the lowest distortion, lowest noise, and highest accuracy of any direct box. The result is a clean, precise sound that is completely faithful to the original.
- Features
Features
- The exceptional ruggedness and versatility
- ultra-low distortion
- True ground isolation
- With the lowest distortion, lowest noise, and highest accuracy of any direct box
- The Type 10 achieves the highest SNR, lowest phase deviation, and lowest distortion of any DI
- The Type 10 maintains exceptionally low THD and IMD across the entire audio band, and for a wide range of input voltages
- Specification
Frequency Response 10 Hz – 50 kHz (+/- 1 dB) Deviation from Linear Phase +2° (30 Hz), 0° (100 Hz – 20 kHz) Noise (shorted input, BW = 22 Hz – 20 kHz) 1.8 μVrms (-115 dBVrms) Power Options 48V Phantom (1.5 mA), 9VBattery (4.8 mA, 130 hrs. on a typical alkaline) Input Protection 220 Vrms and 20,000 V static discharges Transformer Isolation Voltage > 500 V from instrument ground to XLR output pin 1 Padding Settings 0 dB, -15 dB, -30 dB RF Filtering 1.5 MHz (input), 60 kHz (output) low pass filters Maximum Input Level (1% THD) 6 Vpp (0 dB pad) 33 Vpp (-15 dB pad) 190 Vpp (-30 dB pad) (Equal to 1,100 Watts into 4 Ohms) Input Resistance 10 MΩ (0 dB pad), 10 kΩ (-15, -30 dB pad) Input Capacitance 240 pF (equal to 3 ft of low-capacitance guitar cable) Output Polarity Pin 2 positive Dimensions 1.75 x 3 x 6 in (45 x 77 x 152 mm) Weight 1.30 lbs (0.59 kg) - Reviews
