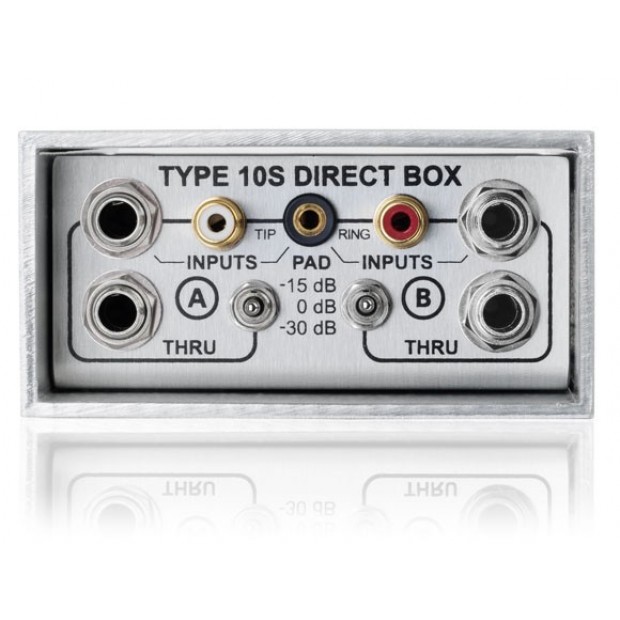

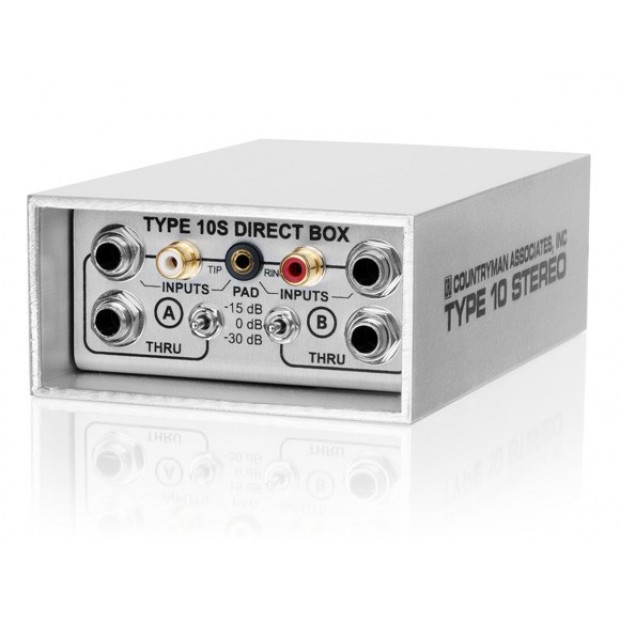

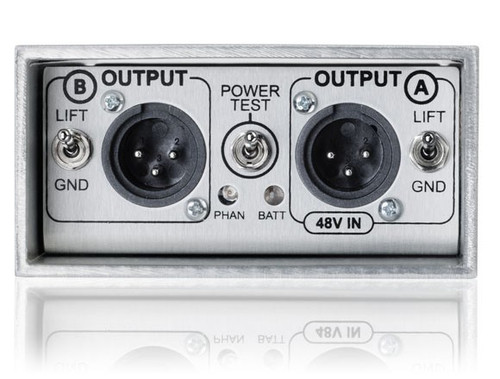

The Type 10S is a two-channel version of the Type 10 direct box, delivering industry-leading technical performance with new features to meet the unique needs of stereo and two-channel users.
| Frequency Response | 10 Hz – 50 kHz (+/- 1 dB) |
|---|---|
| Deviation from Linear Phase | +2° (30 Hz), 0° (100 Hz – 20 kHz) |
| Noise (shorted input, BW = 22 Hz – 20 kHz) | 1.8 μVrms (-115 dBVrms) |
| Power Options | 48V Phantom (1.5 mA), 9VBattery (4.8 mA, 130 hrs. on a typical alkaline) |
| Input Protection | 220 Vrms and 20,000 V staticdischarges |
| Transformer Isolation Voltage | > 500 V frominstrument ground to XLR output pin 1 |
| Padding Settings | 0 dB, -15 dB, -30 dB |
| RF Filtering | 1.5 MHz (input), 60 kHz (output) lowpassfilters |
| Maximum Input Level (1% THD) | 5 Vpp (0 dB pad) 28 Vpp (-15 dB pad) 158 Vpp (-30 dB pad) |
| Input Resistance | 10 MΩ (0 dB pad), 10 kΩ (-15, -30 dB pad) |
| Input Capacitance | 240 pF (equal to 3 ft of low-capacitance guitarcable) |
| Dimensions | 2" (51 mm) x 3" (102 mm) x 6.25" (159 mm) |
| Weight | 1.95 lbs (1.30 kg) |
