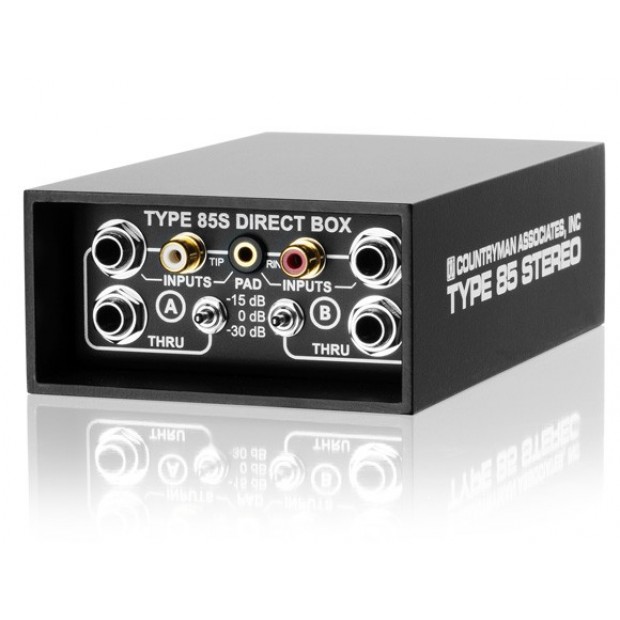

The Type 85S is a two-channel version of the classic Type 85 FET direct box. With several input connector options, a huge dynamic range, and three pad settings, the Type 85S is an excellent choice for a wide variety of stereo or two-channel applications.
| Frequency Response | 20 Hz to 20 kHz (+/- 1 dB) |
|---|---|
| Noise (Shorted Input, BW = 22 HZ TO 20 KHZ) | 0.63 uVrms (-122 dBVrms) |
| Distortion (1 VPP IN) | THD (1 kHz): < 0.018% IMD (10 kHz/60 Hz, 4:1): < 0.08% |
| Cross-Talk Rejection | > 105 dB (20 Hz to 20 kHz) |
| Power Options | 48 V Phantom (1.6 mA) 9 V Battery |
| Input Protection | 220 Vrms and 20,000 V static discharges |
| Transformer Isolation Voltage | > 500 V from instrument ground to XLR output pin 1 |
| Gain Options | 0 dB pad: -10 dB -15 dB pad: -25 dB -30 dB pad: -40 dB |
| RF Filtering | Input: 250 kHz low-pass filter Output: 30 kHz low-pass filter |
| Maximum Input Level (1% THD) | 0 dB pad: 5 Vpp -15 dB pad: 28 Vpp -30 dB pad: 158 Vpp (Equal to 800 Watts into 4 Ohms) |
| Input Resistance | 0 dB pad: 10 MOhm -15, -30 dB pad: 10 kOhm RCA and 1/8" inputs: 20 kOhms |
| Input Capacitance | 160 pF (equal to 2 ft of low-capacitance guitar cable) |
| Output Polarity | Pin 2 positive (Note: the one-channel Type 85 is Pin 3 positive) |
| Dimensions (H x W x D) | 2" (45 mm) x 4" (77 mm) x 6.25" (159 mm) |
| Weight | 1.94 lbs (.88 kg) |
