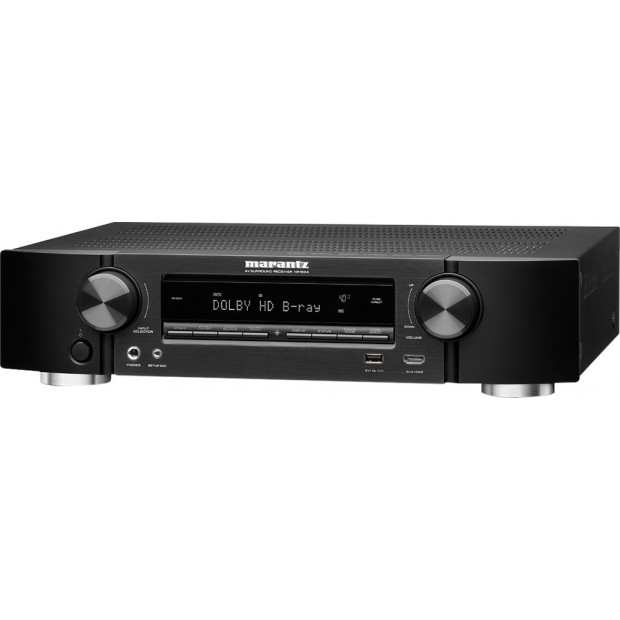

Denon Marantz Professional NR1604P Slimline AV Surround Home Theater Receiver

Home /
Denon Marantz Professional NR1604P Slimline AV Surround Home Theater Receiver (Discontinued)

Description

Details

The Denon Marantz Professional NR1604P Slimline AV Surround Receiver is a versatile 7-channel home theater receiver with network capabilities in a slim-line body that delivers spacious, realistic surround sound from a wide variety of sources. This receiver features support for next-generation TV displays capable of displaying 4K Ultra HD video. Along with 4K Ultra HD and 3D pass-through the NR1604 also features video upscaling technology to 4K Ultra HD. The network functions of the NR1604 let you enjoy the music library of your iPhone®, iPod touch® and iPad® using AirPlay®, and a wide variety of content such as music streaming from Pandora, Spotify, and SiriusXM. With the network functions you can also use your Android or iOS device to operate the NR1604 via the available Marantz Remote App. In addition, with the Multi Zone functionality you can even output music from the main room to a different room such as a kitchen or bedroom via an additional pair of speakers.

Features

Features

Slim-Line 7.1-Channel Surround AV Receiver
50W @ 8 ohms (70W @ 6 ohms)
7 HDMI inputs (1 on front the front panel), 1 HDMI output
1080p & 4K Ultra HD (3840 x 2160) video upconversion
Networking ready: AirPlay, stream internet radio, Pandora, Sirius XM, Spotify, as well as music and photos over the network
Zone 2 output (separate stereo audio in 2nd room)
DLNA 1.5 certified
IP Control
3RU removable rack kit included

Specification

Audio Section
Power Amplifier
Front	50W + 50W; 70W + 70W
Center	50W; 70W
Surround	50W + 50W; 70W + 70W
Analog
Input Sensitivity/Input Impedance	130 mV/47 kΩ
Frequency Response	10 Hz – 100 kHz — +1, –3 dB (DIRECT mode)
S/N	98 dB (IHF–A weighted, DIRECT mode)
Video Section
Standard Video Connectors
Input/Output Level and Impedance	1 Vp-p, 75 Ω
Frequency Response	5 Hz – 10 MHz — 0, –3 dB
Color Component Video Connector
Input/Output Level and Impedance	Y signal — 1 Vp-p, 75 Ω,PB/CB signal - 0.7 Vp-p,75 Ω,PR/CR signal - 0.7 Vp-p
Frequency Response	5 Hz – 60 MHz — 0, –3 dB
Tuner Section
Receiving Range	FM: 87.5 MHz – 107.9 MHz, AM: 520 kHz-1710 kHz
Usable Sensitivity	FM: 1.2 μV (12.8 dBf), AM: 18 μV
S/N	Mono 70 dB, Stereo 67 dB
Total Harmonic Distortion (at 1 kHz)	Mono 0.7 %, Stereo 1.0 %
Power Supply	AC 120 V, 60 Hz
Power Consumption	220W, 0.2W (Standby), 0.5W (CEC standby)
Dimensions (H x W x D)	4.14” (105 mm) x 17.33” (440 mm) x 14.45” (367 mm)
Weight	18.52 lbs (8.4 kg)
