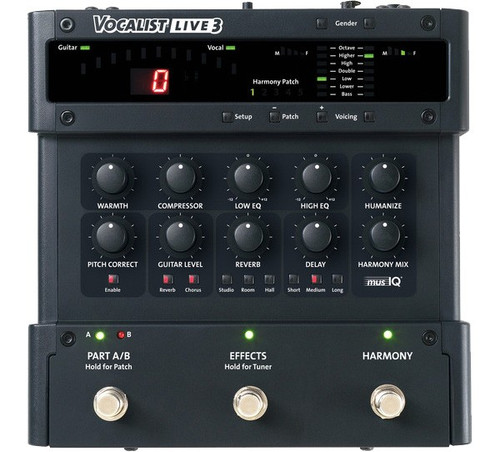

DigiTech Live 3 Vocal Effects Processor (Discontinued)

Part # VLHM-U
Model # Live 3

Want to really connect with an audience and capture their attention? Let the Vocalist® Live 3 triple your voice with warm, natural-sounding harmonies.


Description

Details

Want to really connect with an audience and capture their attention? Let the Vocalist® Live 3 triple your voice with warm, natural-sounding harmonies. The Live 3 automatically follows your vocals and chord progression using patented musIQ® technology so you don't have to program a song's key or key changes. Just step on the footswitch while you're playing to fill the room with pitch-perfect backup vocals. You can even have the harmonies sound male or female and increase their human factor for an organic, realistic sound.

The Live 3 also keeps your song right on target with built-in pitch correction and a variety of useful and intuitive effects like warmth, compression, a noise gate and a two-band EQ. Add in reverb, delay and a built-in tuner and you've got an indispensable tool that will have you turning heads and inspiring applause like never before.

Features

Features

  • 2 voices of fully automatic harmony added to your voice for 3-part harmony. Just play naturally on your guitar and musIQ® technology will ensure that the harmony voices are always musically correct.
  • Gender controls for each harmony voice allow you to alter the character of the harmony voices.
  • Humanize control to adjust the style of the harmony voices from loose to tight.
  • Five Harmony Patches to save harmony settings, each with an A part and a B part to make on-stage harmony changes easy.
  • Real-time Chromatic Pitch Correction.
  • Vocal Pre Effects: Warmth (tube preamp), Compressor, two-band.
  • EQ, Low Cut and Noise Gate.
  • Reverb with three different room sizes.
  • Delay with five delay settings.
  • Built-in guitar chorus effect.
  • Ability to mix the guitar and vocal signals to provide the acoustic guitar player with an easy way to connect straight to the PA or a powered speaker.
  • Low noise microphone preamp.
  • 48V phantom power.
  • Guitar Ground Lift to eliminate any noise hum issues that may arise.
  • Built-in Guitar Tuner.
  • Balanced XLR stereo outputs.
  • Balanced Line Input for post processing recording applications.
  • 24-bit, 44.1 kHz audio quality.
Specification
Mic Preamp ConnectorXLR balanced
Mic Preamp Input Sensitivity@ -3dBFS: -35 dBu to +0 dBu
Mic Preamp Equivalent Input Noise (EIN)-126 dBu, 20 Hz - 20 kHz (A-Weighted)
Mic Preamp Input Impedance6 kΩ Balanced
Line Input Connector1/4" TRS balanced / unbalanced
Line Input Sensitivity@ -3dBFS: -20 dBu to +15 dBu
Line Input Impedance23 kΩ balanced, 13 kΩ unbalanced
Guitar Input/Thru Connectors1/4" unbalanced
Guitar Input/Thru Impedance1 MOhm (input), 1 kOhms (thru)
Output ConnectorsXLR balanced
Output Level@ 0dBFS: -5.6 dBu
Output Impedance200 Ω pseudo-balanced
Dynamic Range106 dB, 20 Hz - 20 kHz (A-Weighted)
THD+ Noise @ Min gain: 0.007% @ 1 kHz
Frequency Response@ Max gain: -3 dB @ 30 Hz and 21 kHz
A/D Converter24 bits/44.1kHz
D/A Converter24 bits/44.1kHz
Power Supply (US and Canada)120 VAC, 60 Hz Adapter: PS0913B - 120
Power Supply9VAC, 1.3 A
Power Consumption8.1 watts
Dimensions8.25″ (L) x 8.25″ (W) x 2.5″ (H) / 210 mm(L) x 210mm(W) x 63.5mm(H)
Unit Weight4.2 lbs (1.9 kg)
