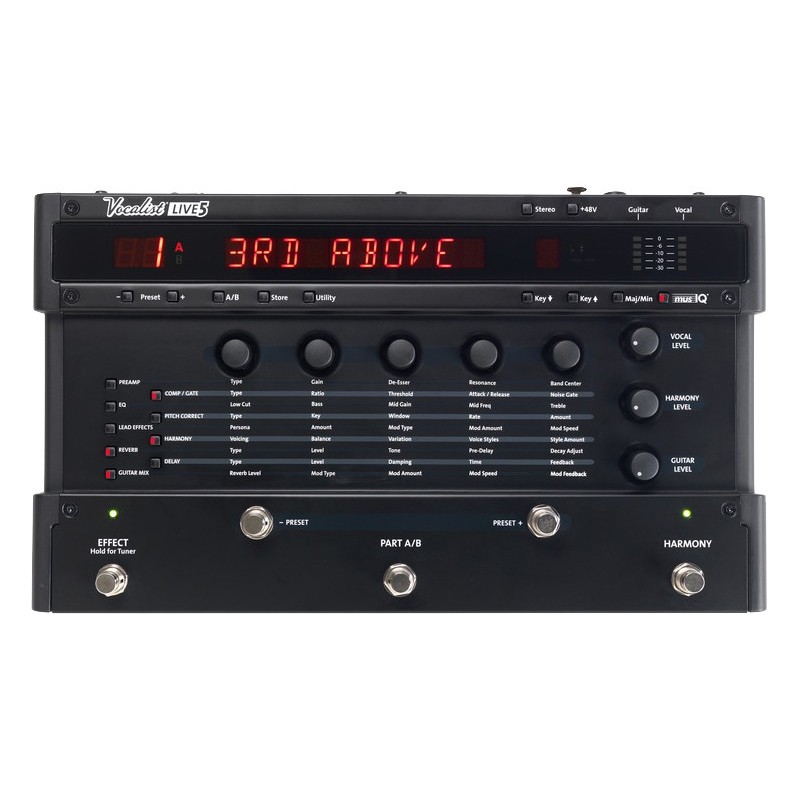

DigiTech Live 5 Vocal Effects Processor (Discontinued)

Part # LIVE 5
Model # Live 5

Want to really connect with an audience and capture their attention? Let the Vocalist® Live 5 adds up to four additional warm, natural-sounding harmonies to your lead vocals.


Description

Details

Want to really connect with an audience and capture their attention? Let the Vocalist® Live 5 adds up to four additional warm, natural-sounding harmonies to your lead vocals. The Live 5 automatically follows your vocals and chord progression using patented musIQ® technology so you don't have to program a song's key or key changes. Just step on the footswitch while you're playing to fill the room with pitch-perfect backup vocals. You can even have the harmonies sound male or female and increase their human factor for an organic, realistic sound.

The Live 5 also keeps your song right on target with built-in pitch correction and a variety of useful and intuitive effects like warmth, compression, a noise gate and a two-band EQ. Add in reverb, delay and a built-in tuner and you've got an indispensable tool that will have you turning heads and inspiring applause like never before.

Features

Features

  • Automatically follows your guitar chords to generate the correct vocal harmonies using musIQ.
  • Add up to 4 additional voices of harmony.
  • Gender control allows you to give the harmonies a male and/or female voice.
  • Humanize adjusts the natural sound of the harmonies from loose to tight.
  • Adjustable/Natural sounding, real-time pitch correction.
  • Add different kinds of vocal effects from radio, delay, distortion and more.
  • Staggered button footswitch layout.
  • 5 metal vacuum switches .
  • Sturdy and durable black metal chassis.
  • Bright, easy-to-read LED display.
  • 100 Presets.
  • A/B Patch per preset.
  • A/B Patch footswitch.
  • Built-in Guitar Tuner.
Specification
Mic Preamp ConnectorXLR balanced
Mic Preamp Input Impedance1.3k Ohms balanced
Mic Preamp max input level, gain at max–27dBu (–12.5dBu in limit)
Mic Preamp max input level, gain at min–1.5dBu
Guitar Input/Thru Connectors1/4" unbalanced
Guitar Input/Thru Impedance3M Ohms unbalanced
Guitar Input/Thru Max input level3.4 Vrms
Line Input Connector1/4" unbalanced TS connector
Line Input Impedance12k Ohms unbalanced
Line Input max input, gain at max–8dBu (+5.5dBu in limit)
Line Input max input, gain at min+18.5dBu
Aux Input Connector3.5mm unbalanced stereo TRS connector
Aux Input Impedance33k Ohms unbalanced
Frequency ResponseLine Level Inputs and Outputs: +0, –3dB 30Hz to 20kHz
THDLine-Level Inputs to Line-Level Outputs < 0.03%, Input Level at max, 0dBu 1kHz tone
A/D Converter24 bits/44.1kHz
D/A Converter24 bits/44.1kHz

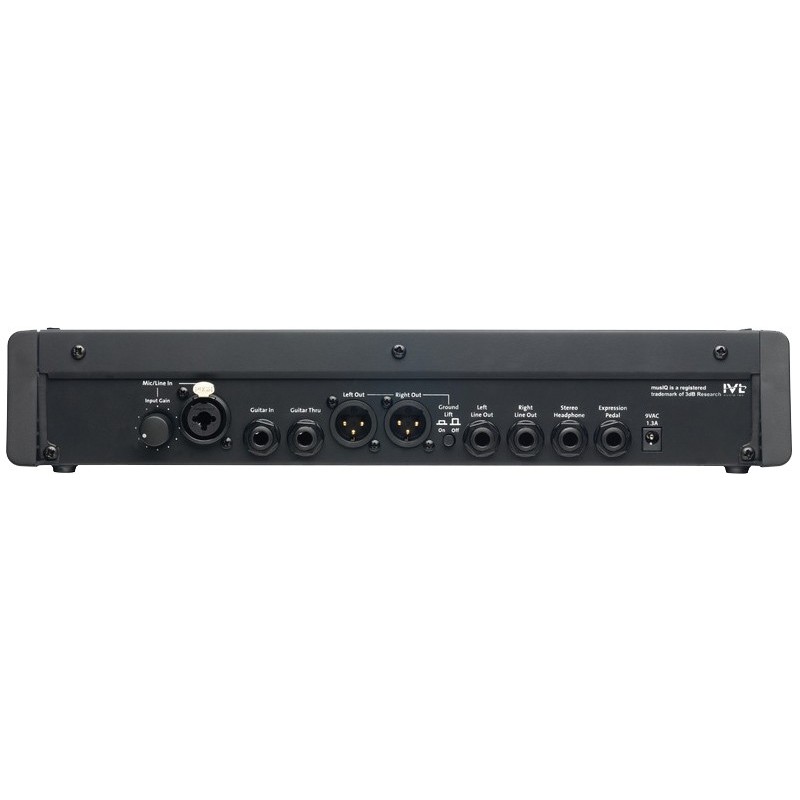

Output Connectors1/4" balanced/unbalanced TRS, XLR balanced
Output Levelmax level: +19.9dBu balanced, +13.9dBu unbalanced
Output Impedance1560 Ohms balanced, 780 Ohms unbalanced
Dynamic Range>102dB, A-weighted
Headphone Connector3.5mm unbalanced stereo TRS connector
Headphone LevelMax level: +12.6dBu
Headphone Impedance10 Ohms
DSP SectionAll signal processing takes place at 44.1KHz sample rates, native
Power Supply (US and Canada)120 VAC, 60 Hz Adapter: PS0913B - 120
Operating Temperature32-104 degrees F, (0-40 C)
Dimensions8.25” (L) x 14.18” (W) x 2.08” (H)
Unit WeightApproximately 3.3 lbs (1.49 kg)
