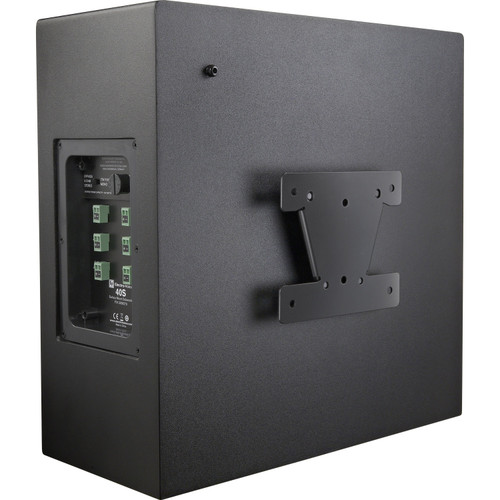

High-performance EV-engineered 8" transducer with a high-efficiency multi-mode audio crossover network. Compact, high-density wood enclosure with port for extended bass response, secure snapon speaker grille, and quick-mount slide-on bracket system.
Easy-access signal connections with phoenix-style connectors for quick wiring, user-friendly mode selector for stereo or mono operation, and easy-tap selector dial (supports 4/8 ohm inputs or up to 100W / 70/100V audio connections).
| Bracket Adjustment Range | Fixed |
|---|---|
| Coverage, Music | Omnidirectional |
| Coverage, Voice | Omnidirectional |
| Impedance | Dual 8 ohm / mono 4 Ω |
| Included Accessories | Wall bracket; hex wrench |
| Maximum SPL | 114 dB |
| Power Handling (Continuous / Peak) | 200W |
| Transducer | 200 mm (7.87") |
| Transformer Taps (Transformer Version Only) | 100W, 50W, 25W |
| Frequency Response (-10 dB) | 180 Hz - 20 k Hz |
| Sensitivity 1 W/1 m | 88 dB |
| Connector Type | Phoenix (2-pin) |
| Enclosure Material | Wood (MDF) |
| Dimensions (H x W x D) | 15.7" (400 mm) x 15.7" (400 mm) x 9" (230 mm) |
| Net Weight | 26.57 lbs (12.05 kg) |
