Electro-Voice EVID-EC6.2E 6.5" EVAC 2-Way In-Ceiling Speakers - White Pair

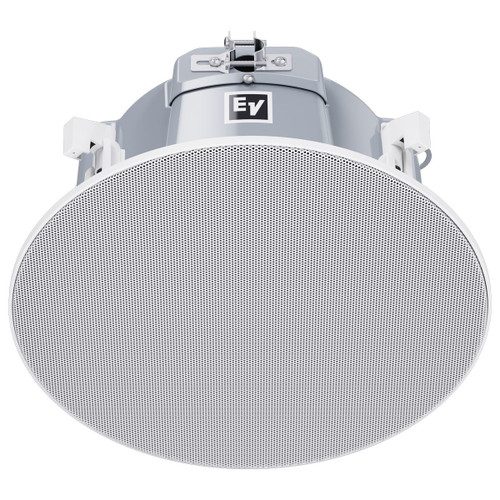

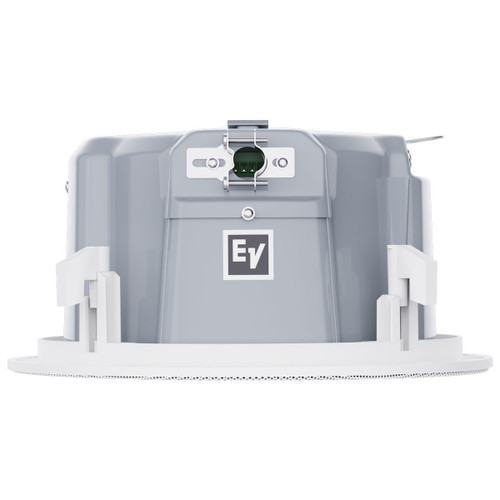

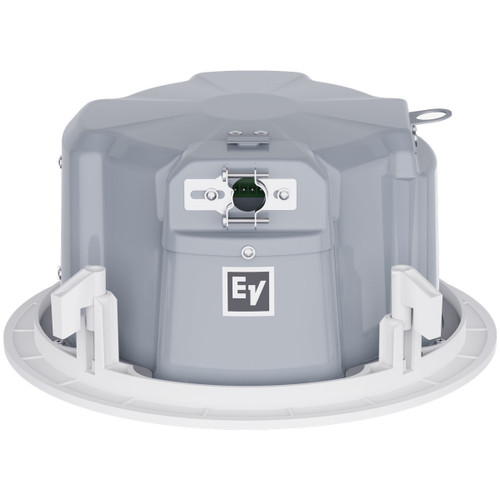

The Electro-Voice EVID-EC6.2E is a complete 6.5-inch coaxial two-way loudspeaker that offers excellent sound quality and outstanding reliability with first-class aesthetics. The EVID-EC6.2E utilizes a transformer that offers a selection of 1.88 (70-V only), 3.75, 7.5, 15 or 30 watts delivered to the loudspeaker system using either 70-V or 100-V lines, or 8-ohm bypass. Selection is via a convenient switch on the front baffle. The perforated grille is finished in semi-gloss white powder-coated enamel. The baffle is constructed from UL 94V-0 rated ABS. The rear enclosure is constructed from heavy gauge coated steel. The low-profile enclosure makes it easy to mount in very tight spaces. A side terminal-cover provides access to a 4-pin terminal block that allows direct connection to the speaker with 12-gauge and 3.3 sq. mm of wire and provides pass through to additional speakers.

A mounting ring and a tile bridge are included for safe suspension of the EVID-EC6.2E ceiling systems in a drop ceiling that uses mineral wool, or other fiber-based ceiling tiles.

The wide range of EVID ceiling speakers has been designed to work together as a complete system in a variety of different ceiling constructions, and to be used in combination with other EVID surface-mount and in-wall speakers.

Features

Features

Bezel-less design with easy-attach grille
Front baffle wattage tap adjustment
Includes tile rail and C-Ring for easy installation
UL 1480, UL 1480A, EN54-24:2008, UL 2043, CAN/ULC 541:2023, CSA C22.2 No. 205, and IEC 62368-1 certified

Specification

Frequency Range (-10 dB)	85 Hz - 20,000 Hz
Maximum Continuous SPL	107 dB
Maximum Peak SPL	113 dB
Sensitivity	92 dB SPL 1 W, 1 m
Coverage Angle Conical	110°
Power Handling	Continuous: 30W Peak: 120W
Long-Term Power Handling	Continuous: 30W Peak: 120W
Nominal Impedance	8 Ω
Recommended High Pass	70 Hz
Transformer Taps	70V: 30 W, 15 W, 7.5 W, 3.75 W, 1.88 W 100V: 30 W, 15 W, 7.5 W, 3.75 W
LF Driver	6.5"
HF Driver	1"
Material	Steel
Grille Material	Powder Coated Steel
Color	RAL 9003 Signal white
Connector Type	4-pin Euroblock Input + Pass through
Wire Size	12 AWG (maximum)
Wire Diameter	3.3 sq. mm (maximum)
Mounting Cutout	10.7" (272 mm)
Mounting Depth	5.9" (149 mm)
Ceiling Thickness	0.5 - 1.5" (12.5 - 38 mm)
Safety Agency Ratings	UL 1480, UL 1480A, EN54-24:2008, safe for use in airhandling spaces per UL 2043, CAN/ ULC 541:2023, CSA C22.2 No. 205 certified, IEC 62368-1
IP Rating	IP34
Dimensions (Dia x D)	12.1" (307.2 mm) x 6.1" (153.8 mm)
Weight (ea)	6.2 lbs (2.8 kg)
