Inside the Design
This high school football stadium sound system provides high-quality audio providing music and paging with 4 outdoor speakers for football fields up to 4 zones with the multizone Bluetooth mixer amplifier. Each Pure Resonance Audio S10 speaker provides superior voice and music reproduction with wide 90° x 90° coverage. Use the AtlasIED wireless handheld microphone with a range of 330ft for football games as well as the PTT1 desktop push-to-talk microphone that provides excellent performance and reliability, ideal for paging and announcements from the pressbox.
Sound System Features:
- Highly weatherproof IP66 rated baseball stadium speakers with 200W of continuous power handling and 90° x 90° dispersion
- Provides ideal coverage of more than 3000 sq. ft. and up to 650ft for direct speech from each speaker
- A heavy-duty wall mounting bracket is included with each speaker for a quick, safe, and secure installation
- The RZMA240BT is equipped with built-in MP3, FM tuner, and Bluetooth
- RZMA240BT features matrix technology, letting you route up to 5 separate inputs to 4 distinct zones
- Versatile wireless Atlas Sound handheld microphone system offers quality sound and dependable performance
- The PTT1 push-to-talk tabletop microphone is ideal for paging, announcements, and general public address applications
About the System Components

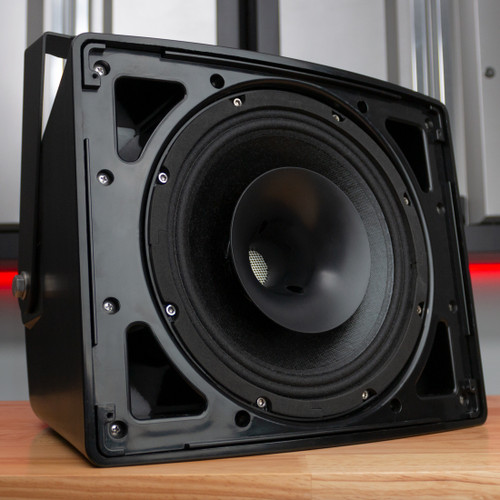

Pure Resonance Audio S10 10" Loudspeakers
The Pure Resonance Audio S10 10" compact two-way coaxial full-range all-weather outdoor stadium loudspeaker offers superior voice and music reproduction with a wide 90° x 90° coverage angle from a durable construction. IP66 rated for long-lasting reliability in harsh environmental conditions, this highly weatherproof speaker is dust-tight and protected against direct high-pressure water. With a fiber-reinforced plastic and metal enclosure, and a built-in 200W 70V/100V multi-tap transformer with an 8-ohm bypass, the S10 is specially engineered for installation in outdoor commercial environments with the included wall mount bracket for easy mounting.

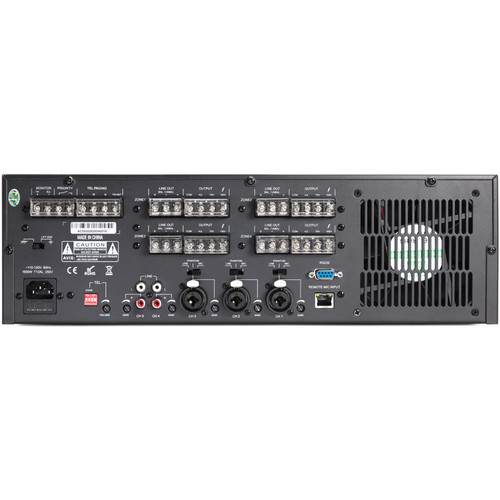

Pure Resonance Audio RZMA240BT 4 Zone 240W Bluetooth Mixer Amplifier
Powerful and feature-packed, the Pure Resonance Audio RZMA240BT is a 4 zone commercial mixer amplifier equipped with built-in MP3, FM tuner, and Bluetooth. Featuring 4 x 240-watt output capability at 4 ohms, 70 and 100 volts, this multi-zone mixer amplifier is full of power. It is designed with advanced matrix technology that allows four-zone selectable inputs to be assigned to a zone, or across multiple zones with the push of a button. A monitor channel provides a 1-watt 8-ohm output for a control room monitor speaker. A convenient IR remote is available for volume and source control, and remote microphones can be daisy-chained via Cat5 for zone paging.

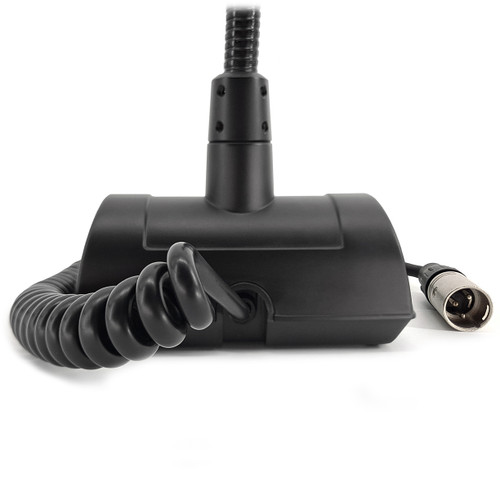

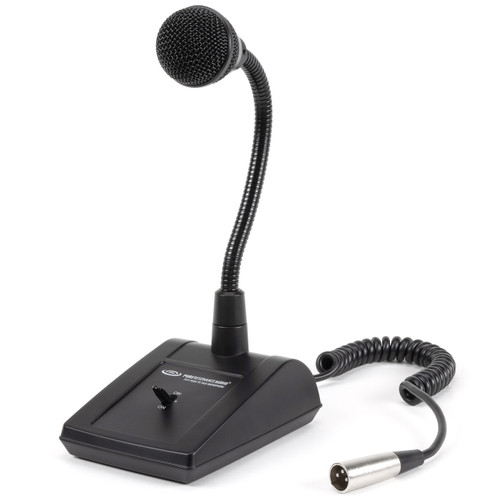

PURE RESONANCE AUDIO PTT1 PUSH-TO-TALK PAGING MICROPHONE

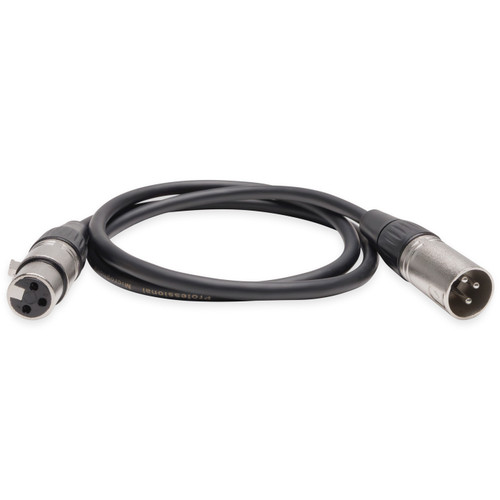

The Pure Resonance Audio PTT1 desktop push-to-talk microphone provides excellent performance and reliability, ideal for paging, announcements, general public address, and communication applications. The PTT1 features a uni-directional dynamic gooseneck microphone, table-stand, dual momentary locking switch, 5-foot cable, and three-pin male XLR connector. The durable gooseneck and metal table-stand ensure the PTT1 push-to-talk paging microphone can withstand even the toughest daily use in a baseball PA system.

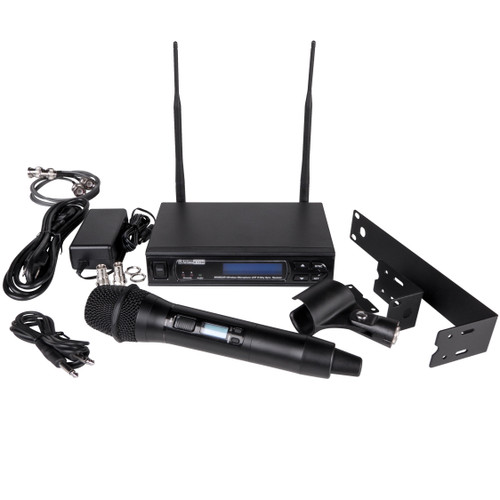

Atlas Sound MW100-HH Wireless Microphone Kit with Handheld Microphone
The AtlasIED MW100-HH is a complete wireless microphone kit, the MWHHM handheld wireless microphone transmitter can be used with either two standard alkaline or rechargeable NiMH AA batteries. The MWHHM can provide up to 16 hours of usage when using rechargeable NiMH batteries. This kit includes a wireless receiver (MWRCVR) and wireless transmitter (MWHHM) as well as the necessary antennas, cables, and power supply for proper functionality in a high school football stadium sound system.
