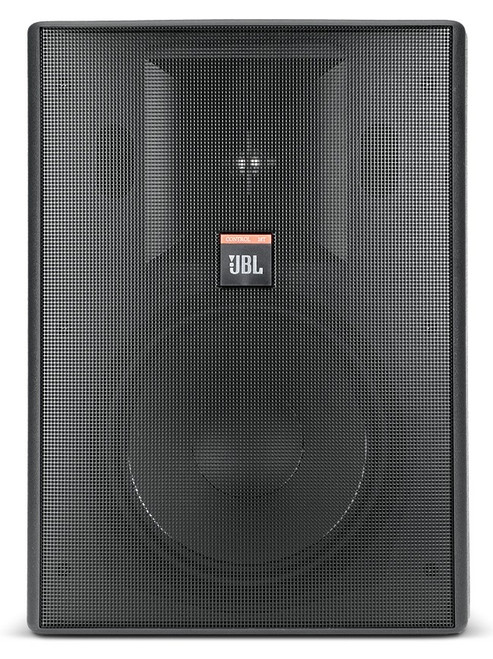

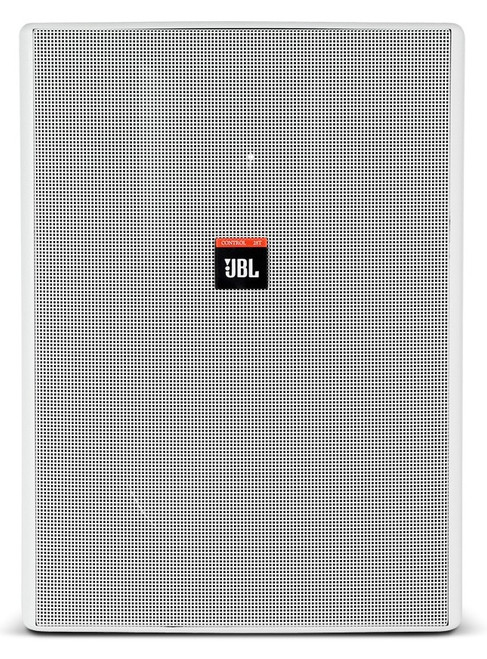

JBL Control 28 8 Inch 2 Way Vented Indoor/Outdoor Speaker - Pair (Discontinued)

Part # Control 28
Model # Control 28

The JBL Control 28 offers a rich sonic character making it a perfect choice for applications where foreground/background music and paging are required.

Description

Details

The JBL Control 28 is the largest of JBL Professional’s Control Contractor Series indoor/outdoor loudspeakers. Its rich sonic character makes the Control 28 a perfect choice for restaurants, health clubs, under balcony, outdoor theme & water parks, or other applications where foreground/ background music and paging are required.

The unique and global patent pending InvisiBall mounting hardware is included in each system and makes short work of permanent installation. The InvisiBall mounting method adds the benefit of vertical rotation of up to 37° off-axis and horizontal rotation of up to 44° off-axis. Because InvisiBall adjustments are made through a hidden access behind the logo badge, the grille never needs to be removed and there exists a high degree of theft deterrence as well.

The Control 28 readily accepts a variety of paints and finishes to match any decor. Weather resistance is maximized by coating the woofer cone in polypropylene and terminating its circumference in JBL’s WeatherEdge, a seamless, rubberized extension of the woofer surround that provides added protection to critical transducer elements. The polycarbonate tweeter diaphragm is reinforced with a thin film of titanium for added rigidity and endurance against sun, salt and moisture. Zinc plated grilles resist rusting in the harshest conditions.
Features

Features

  • Components: 8” Polypropylene coated woofer; 1” Titanium coated horn loaded tweeter
  • Built-in InvisiBall patented mounting hardware
  • Weather resistant enclosure and transducers
  • Readily paintable
  • 90° x 90° high frequency horn
  • Overload Protection Circuitry
  • Sensitivity: 92 dB SPL, 1W, 1m
Specification
Frequency Range (-10 dB)60 Hz to 16 kHz
Continuous ProgramPower Capacity175 Watts
Sensitivity92 dB SPL, 1W, 1m
Directivity Factor (Q)7.5
Directivity Index (DI)8.8
Nominal Impedance8 ohms
Crossover Frequency2.8 kHz
LF Driver8" Polypropylene cone w/WeatherEdge
HF Driver1" Titanium coated polycarbonate
Enclosure MaterialHIPS (High Impact Polystyrene)
Overload ProtectionFull-Range power limiting to protect network and transducers
TerminationSpring terminals, accepts banana plug
Included AccessoriesInvisiball Assembly 6 mm x 180 mm hex key
EnvironmentalConforms to Mil Spec 810 for humidity, salt spray, temperature & UV.IEC 529 IP-34 splashproof rating
Dimensions15" (380 mm) x 11" (280 mm) x 8.6" (220 mm)
Net Weight (ea)12 lbs (5.5 kg)
Shipping Weight (pair)25 lbs (11 kg)
