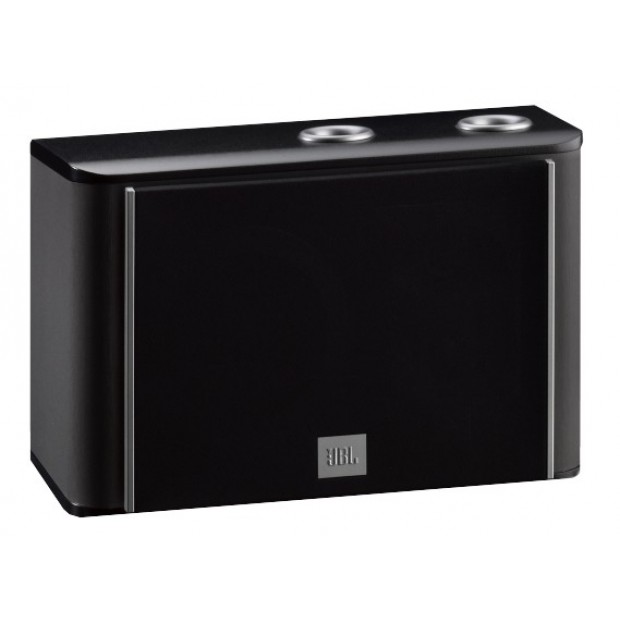

JBL ES10 4 inch Bookshelf Speaker (Discontinued)

Part # ES10
Model # ES10

The ES10 bookshelf/wall-mount speaker delivers accurate performance – with dramatically reduced distortion for incredibly realistic sound – thanks to its PolyPlas™ woofer and titanium-laminate tweeter.

Description

Details

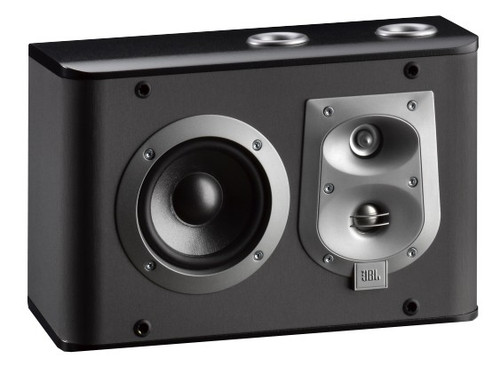

 The ES10 bookshelf/wall-mount speaker delivers accurate performance – with dramatically reduced distortion for incredibly realistic sound – thanks to its PolyPlas™ woofer and titanium-laminate tweeter. The 4" woofer delivers clean, accurate bass response, and the ultrahigh-frequency driver extends response out to 40kHz, making the ES10 perfect for the latest high-definition recordings and broadcasts. The tweeter is mounted in our proprietary Elliptical Oblate Spheroidal™ (EOS) waveguide for improved high-frequency dispersion anywhere in the listening room.

 The slim and wall-mountable 5-1/2"-deep enclosure complements the latest flat-panel televisions, and also makes the ES10 the perfect surround-channel solution. Available in a black or cherry finish with a black grille.

Features

Features

  • 3-Way 100mm (4") wall-mount surround satellite/bookshelf loudspeaker.
  • Elegant cabinet design with slender profile combining wood-like and textured high-quality vinyl.
  • Ultra-High-Frequency (UHF) drivers capable of 40kHz for higher highs.
  • Cellulose-fiber cones reinforced with a polymer-coating for uniform pistonic motion, no internal resonance and, tighter and more precise bass.
  • EOS waveguides evenly disperse high frequencies delivering more precise imaging over a wider listening area.
  • Thin yet extremely rigid titanium laminate dome tweeters ensuring accurate, undistorted high-frequency response.
  • Bass-reflex port offers tighter bass by extending deep bass response and eliminates unwanted turbulence.
  • Wall-mountable.
  • Available in a black or cherry finish with a black grille.
Specification
Maximum Recommended Amplifier Power100 Watts
Power Handling (Continuous/Peak)50 Watts/200 Watts
Impedance8 Ohms nominal
Sensitivity (2.83V/1m)86dB
Frequency Response (–3dB)65Hz –40kHz
Crossover Frequency3000Hz - 24dB/octave;9000Hz - 18dB/octave
High-Frequency Transducer3/4" (19mm) Titanium-laminate dome, shielded, EOS waveguide
Ultrahigh-Frequency Driver3/4" (19mm) Polyester-film, ring-radiator, shielded, EOS waveguide
Low-Frequency Transducer4" (100mm) PolyPlas™, shielded, EOS waveguide
Dimensions (H x W x D)7-7/8" x 12" x 5-1/2" (201mm x 305mm x 140mm)
Weight per Speaker8.8 lbs (4 kg)
