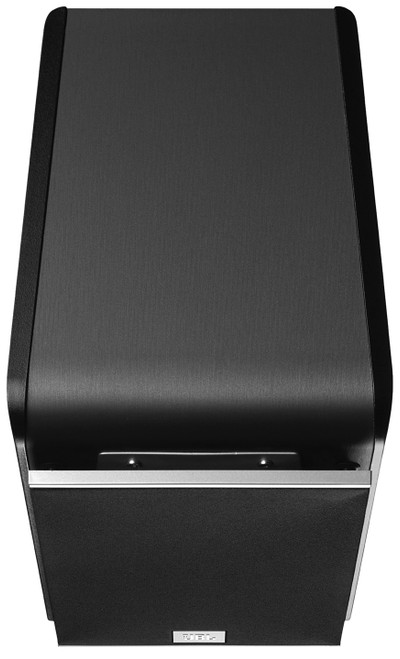

JBL ES30 6 inch Bookshelf Speaker - Pair (Discontinued)

Description

Details

With innovative technologies derived directly from JBL® Professional equipment, the JBL ES30BK delivers powerful, accurate audio performance and brings legendary JBL sound from concert stages, recording studios and movie theaters home. You get 280W of peak power handling and hyper-realistic, deep, resonant bass – no unwanted distortion or boominess – from the proprietary JBL 6-inch PolyPlas™low- frequency transducer. UHF drivers are capable of 40kHz and produce high-end nuances. EOS waveguides disperse high frequencies to make any seat the best one in the house.

Features

Features

Proprietary JBL® 6" PolyPlas™ transducers
Elliptical Oblate Spheroidal™ (EOS) Waveguide
Dual 3/4” dome tweeters, pure titanium design
3-way speaker configuration
Straight-Line Signal Path (SSP)
Computer-optimized bass reflex port
Outstanding audio output
Accurate frequency response
Bi-wiring capabilities
Magnetically shielded

Specification

Frequency Response (±3dB)	50Hz – 40kHz
Maximum Recommended Amplifier Power	150W
Power Handling (Continuous/Peak)	70W/280W
Sensitivity (2.83V/1m)	88dB
Nominal Impedance	8 Ohms
Crossover Frequencies	3000Hz – 24dB/Octave 9000Hz – 18dB/Octave
Low-Frequency Transducer	6" (170 mm) PolyPlas™, shielded
High-Frequency Transducer	3/4" (19 mm) Titanium-laminate dome, shielded; EOS waveguide
Ultrahigh-Frequency Driver	3/4" (19 mm) Polyester-film ring radiator, shielded; EOS waveguide
Dimensions (H x W x D)	15.25" (387 mm) x 8.75" (223 mm) x 13" (330 mm)
Weight	19.6 lbs (8.9 kg)
Shipping Weight (Pair)	50 lbs (22.68 kg)
