Community V2-28B Dual 8-Inch 2-Way Full-Range Loudspeaker 90° x 70° Dispersion

Home /
Live Sound Equipment /
Community V2-28B Dual 8" 2-Way Full-Range Loudspeaker 90° x 70° Dispersion - Black

Description

Details

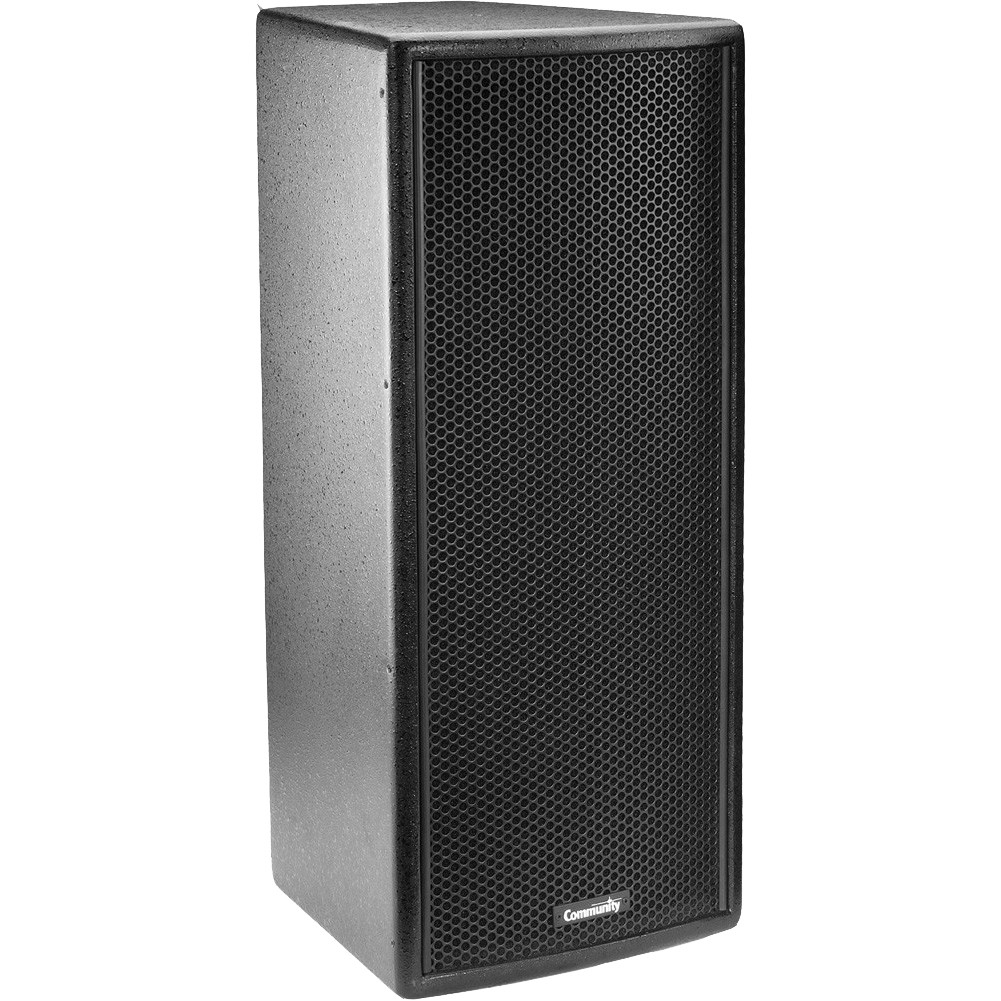

Community V2-28B Dual 8-inch Black Full-Range Loudspeaker

The V2-28B in black is a high-performance dual 8" two-way full-range loudspeaker designed for distributed and delay sound systems. Ideal for cafes, restaurants, shopping centers, airports, and other commercial installations, it delivers extended low-frequency and midrange output compared to its sister model, the V2-8. When paired with a subwoofer like the V2-212S, the V2-28B produces broad-spectrum, high-fidelity sound that belies its compact size.

For ancillary delay applications in auditoria, theaters, and houses of worship, the V2-28B ensures consistent coverage from front to rear of the room. Its 90° H x 70° V dispersion pattern, combined with frequency-shaded woofers and a constant-directivity rotatable square horn, provides smooth, controlled sound. The user-rotatable horn allows optimal performance in either vertical or horizontal mounting, while the included yoke bracket with 10° and 20° vertical standoffs provides flexible wall or ceiling installation options.

Built for reliability, the black V2-28B features Dyna-Tech driver protection circuitry, ferrofluid-treated HF drivers, and Carbon Ring Cone Technology for increased piston area and excursion capability. With terminal strip and NL4-compatible connectors, multiple mounting options, and a durable black finish, this loudspeaker is perfect for distributed systems, delay fill, or supplemental PA applications. Fully compatible with Community ALC404D controllers, higher-power ALC models may also be safely used.

Features

Features

Dual 8" two-way full-range loudspeaker in black
90° H x 70° V coverage in vertical orientation
Constant-directivity rotatable square horn for flexible dispersion
Frequency-shaded woofers for smooth vertical pattern control
Dyna-Tech driver protection circuitry for reliable operation
Ferrofluid-treated HF driver for improved heat dissipation
Carbon Ring Cone Technology increases LF piston area and excursion
Terminal strip and NL4-compatible connectors for flexible wiring
Yoke bracket included with 10° and 20° vertical standoffs for wall or ceiling mounting
5-year warranty

Specification

Operating Range	60 Hz to 18 kHz (-10 dB)
Frequency Response	90 Hz to 16 kHz (±3 dB)
Max Input Ratings	300W continuous, 750W program 34.6 volts RMS, 69.2 volts momentary peak
Sensitivity (1W/1m)	94 dB (100 Hz to 12.5 kHz) free space
Maximum Output	119 dB SPL / 125 dB SPL (peak)
Nominal Impedance	4 ohms
Minimum Impedance	3.4 ohms @ 200 Hz
Nominal –6 dB Beamwidth	90° H x 70° V (in vertical position)
Crossover Frequency	1.3 kHz
Recommended Signal Processing	70 Hz, 24 dB/octave Butterworth high pass filter
Drivers	LF 2 x 8" cone HF 1 x 1"
Driver Protection	DYNA-TECH protection circuitry
Input Connection	NL4-compatible locking connector with terminal strip in parallel
Enclosure	Trapezoidal (22.5° included angle) 18 mm, 11-ply cross-laminated birch
Mounting/RiggingProvisions	9 x M6 threaded rigging fittings 4 x M6 threaded fittings for V-HSS 4 x M8 for third-party suspension products
Finish	Catalyzed polyester two-part paint, black
Grille	Powder coated steel, black finish
Dimensions (H x W x D)	25.5" (649 mm) x 11.3" (287 mm) x 11.7" (298 mm)
Weight (incl. Bracket)	36.7 lbs (16.7 kg)
Shipping Weight	46.7 lbs (21.18 kg)
