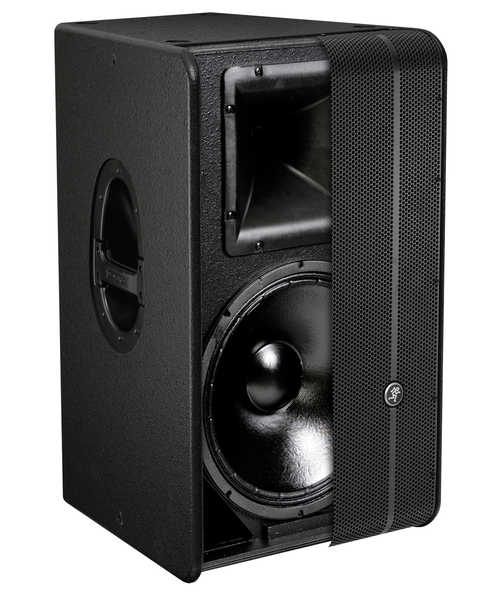

Mackie HD1521 2 Way 15 inch Powered Loudspeaker (Discontinued)
Part # 0032628-00
Model # HD1521

The Mackie HD1521 2 Way 15 inch Powered Loudspeaker represents the first step into portable high-definition live sound, providing precise, articulate full-range sound at the high-output levels demanded of modern PA systems.

Need Quantity Pricing?

We provide quantity discounts for contractors & installers, schools, government, and military buyers on select brands and products.

Talk To An Engineer

Description

Details

The HD1521 Powered Loudspeaker represents the first step into portable high-definition live sound, providing precise, articulate full-range sound at the high-output levels demanded of modern PA systems. Two Class-D Fast Recovery™ amplifiers efficiently drive 1600 Watts of total system power, providing maximum output with minimal distortion. True high-definition sound is possible thanks to an arsenal of technological innovations including our patented acoustic correction processing that was previously only available on high-end stadium touring systems. This complex processing, along with a phase-coherent electronic crossover and transducer time-alignment provide unparalleled acoustic accuracy that has to be heard to be believed.

The 15” neodymium woofer and heat-treated titanium compression driver are custom designed by the award winning engineering team at EAW, delivering the ultimate in both quality and performance. A user-adjustable 3-band contour EQ is built into the loudspeaker and features a sweepable mid frequency for precise tonal shaping.

All of these high-end components are housed in a rugged, all-wood enclosure that not only protects, but allows for multiple mounting options including flying and pole mounting. The HD1521 brings high-definition sound to the world of portable PA systems.
Features

Features

  • 15" 2-way High-Definition Powered Loudspeaker System
  • 1600W of efficient Class-D Fast Recovery™ amplification
    • LF amp: 700W RMS/1400W peak
    • HF amp: 100W RMS/200W peak
  • Custom designed transducers by EAW
    • 15” neodymium woofer with 3” voice coil
    • 1.75” compression driver with heat-treated titanium diaphragm
  • High-definition audio processing includes:
    • Revolutionary patented acoustic correction
    • Transducer time alignment and phase correction
    • Precision 2-way crossover
  • User-adjustable 3-band contour EQ with sweepable mid-frequency
  • Ultra-compact and lightweight
  • Integrated limiting and protection circuitry
  • Rugged all wood cabinet (15 mm birch plywood)
  • 12 integrated fly points for horizontal and vertical rigging using M10 threaded eyebolts
  • Stand/pole mountable
Specification
Acoustic Performance
Frequency Response (-3 dB)50 Hz-18 kHz
Frequency Range (-10 dB)40 Hz-20 kHz
Horizonal Coverage (-6 dB)80° averaged
2 kHz to 10 kHz
Vertical Coverage (-6 dB)50° averaged
2 kHz to 10 kHz
Directivity Factor; Q (DI)14.0 (11.4), averaged
2 kHz to 10 kHz
Max SPL Peak (Calculated)135 dB @ 1 m
Max SPL Peak (Measured)125 dB @ 1 m
Crossover Point1200 Hz
Input / Output
Input TypeFemale XLR, balanced differential
Input Impedance11kΩ balanced
Loop Out TypeMale XLR, balanced differential
Equalization
Low Shelving±3 dB @ 80 Hz (6 dB/octave)
Mid Peaking±3 dB, 100 Hz to 8 kHz, Q=1.5
High Shelving±3 dB @ 12 kHz (6 dB/octave)
Low-Frequency Power Amplifier
Rated Power700W RMS
1400W Peak
Rated THD< 0.03%
CoolingConvection Extrusion
DesignClass D
High-Frequency Power Amplifier
Rated Power100W RMS
200W Peak
Rated THD< 0.03%
CoolingConvection Extrusion
DesignClass D
Low-Frequency Transducer
Diameter15" (381 mm)
Voice Coil Diameter3" (76 mm)
Diaphragm MaterialPaper
Magnet MaterialNeodymium
High-Frequency Transducer
Voice Coil Diameter1.75" (44 mm)
Horn Entry Diameter1" (25 mm)
Diaphragm MaterialHeat treated titanium
Line Input Power
Power100 - 120 VAC, 50 - 60 Hz, 1050W
Recommended Amperage Service9 amps
AC Connector3-pin IEC 250 VAC
Construction Features
Basic DesignTrapezoidal, 20° included angle
Material15 mm exterior grade premium birch plywood
FinishHigh durability black paint
HandlesOne on each side
GrillePowder coated galvanized steel
Display LEDsPower ON, EQ ON, Sig/Limit
Thermal protection, Front Power Light ON
Fly PointsTwelve M10 x 1.5 mm
Dimensions (H x W x D)
Product30" (762 mm) x 18.3" (464 mm) x 18.8" (478 mm)
Shipping33" (838 mm) x 21" (533 mm) x 22" (559 mm)
Weight
Net80 lbs (36.3 kg)
Shipping89 lbs (40.4 kg)
