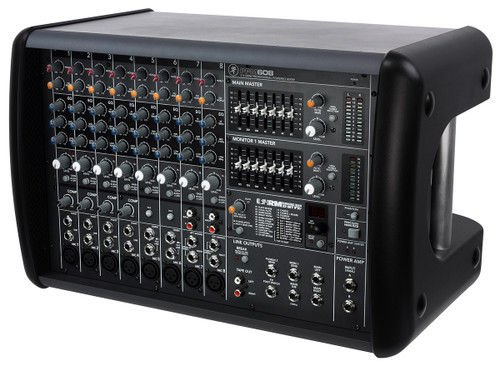

Mackie PPM608 8-Channel Professional Powered Mixer (Discontinued)

By Mackie

Mackie PPM608 8-Channel Professional Powered Mixer (Discontinued)

Name: Mackie PPM608 8-Channel Professional Powered Mixer (Discontinued)
Brand: Mackie
SKU: MACKIE-0026939-00
Price: 799.99 USD
Availability: OutOfStock

Write a Review

Part #:

0026939-00

Model #:

PPM608

Current Stock:

Availability: No Longer Available

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The Mackie PPM608 is a powerful mixer designed to meet the needs of almost any small to medium-sized club, meeting room, sanctuary, or outdoor gathering.

Description

The PPM608 features 500W + 500W peak Class-D, Fast Recovery™ power amplifiers, six mono mic/line channels and two stereo mic/line/RCA channels, each with 3-band Perkins EQ.

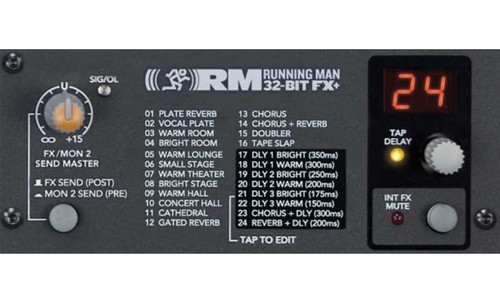

The PPM608 is equipped with a 32-bit RMFX+™ processor featuring 24 effects with tap delay, dual 7-band graphic EQ (one for mains, one for monitors) and dedicated in-line compressors on the first four channels. Each mono channel has a premium Mackie mic preamp, a low/high gain switch, one Mon send and one FX/Mon send and a Channel Insert jack for connecting an external processor.

There are built-in DIs on channels five and six for direct connection of guitars or bass, a 1/4-inch stereo footswitch jack for muting effects and a subwoofer output. Other features include +48V phantom power, stereo tape output, stereo 12-segment LED meters and TRS stereo output jacks. Despite its large channel count, the PPM608 is ultra-light. Plus, it’s a Mackie which means it is “Built-Like-A-Tank” and will survive years of abuse.

Features

8 premium Mackie mic preamps with 48V phantom power and TRS inserts (ch 1-6)
500W + 500W Mackie designed Class-D power amplifiers
Dual 7-Band graphic EQ
Rugged metal handles built into the sides of the mixer case
Full-featured 8-channel, 1000W, ultra-light Professional Powered Mixer with onboard 32-bit digital RMFX+™ processor
Mackie's 3-band active channel EQ (80hz, 2.5kHz, 12kHz)
2 stereo inputs with dual RCA and dual 1/4" line inputs for flexible connectivity
Precision Passive EQ for enhanced clarity and LF response with Mackie passive loudspeakers

Specifications

Mic Input	XLR balanced
Line Mono Input	1/4" TRS balanced
Line Stereo Input	1/4" TRS unbalanced
Preamp Main Outputs	1/4" TRS balanced
Monitor Outputs	1/4" TRS balanced
Inserts	1/4" TRS unbalanced
Loudspeaker Outputs	1/4" TS and Neutrik Speakon
Power Consumption	120 VAC, 50/60 Hz,680 watts
Main Mix Level Down	–95 dBu (all channel levels down)
Main Mix Level 0 dB	–86 dBu (all channel levels down)
Main Mix Level 0 dB	–77 dBu (all channel levels 0 dB)
Mic Mono Input	45 dB high gain 25 dB low gain
Line Mono Inputs	20 dB high gain 0 dB low gain
Line Stereo Inputs	0 dB
Peak Output Power @ 4 ohms	2 x 500W peak
Recommended Load Impedance	4 – 8 Ω per side
Dimensions (H x W x D)	12.3" (314 mm) x 19.3" (490 mm) x 11.4" (290 mm)
Weight	24.8 lbs (11.2 kg)
Shipping Weight	30.6 lbs (13.9 kg)
