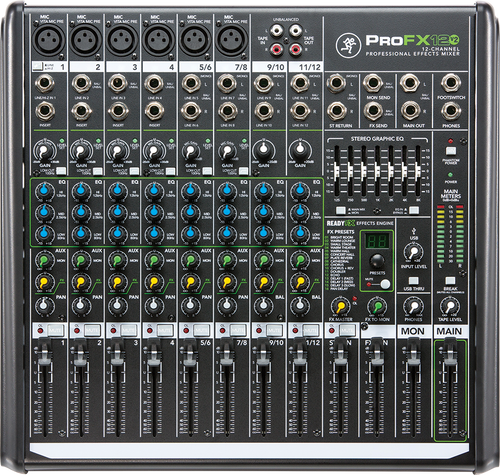

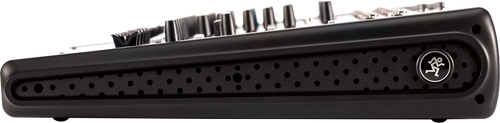

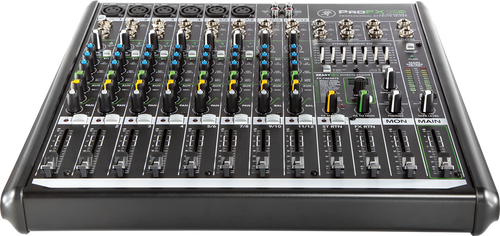

Mackie ProFX12v2 12 Channel Professional Effects Mixer with USB

Home /
Mackie ProFX12v2 12 Channel Professional Effects Mixer with USB (Discontinued)

Description

Details

The Mackie ProFX12v2 12-channel effects mixer provides a comprehensive live sound solution ideal for applications like band rehearsals or smaller performances. Delivering unmatched sound quality, ProFX12v2 features all-new Mackie Vita™ preamps, which are virtually noiseless and designed specifically for the highly-dynamic world of live sound. ProFX12v2 also includes the immensely powerful new ReadyFX™ effect engine, harnessing floating-point DSP to deliver 16 rich effects that elevate any performance. A no-compromise live sound toolkit includes a room-shaping GEQ, flexible I/O and a built-in USB interface for hassle-free recording/playback. With a rugged steel chassis and unmatched sonic performance, ProFX12v2 is truly the life of your live mix.

Features

Features

4 extremely low-noise Mackie Vita™ mic preamps designed to add life to any input
All-new ReadyFX™ effects engine with 16 great-sounding effects like reverbs, delays and choruses
7-band graphic EQ for tuning mains or monitors
Built-in USB interface to record the show or provide music playback
Aux output perfect for driving a monitor mix
3 stereo channels plus extra stereo return for external effects or stereo playback devices
60 mm faders for input channels, return and main/monitor masters
3-band EQ (80Hz, 2.5kHz and 12kHz) on all channels
Directly connect guitar, bass and other instruments via Hi-Z input
Insert, 100Hz low-cut filter and 48V phantom power on all mic channels
Stereo RCA tape I/O with input level control
Headphone output with separate level control
Balanced XLR and balanced/unbalanced 1/4-inch main outputs
FX mute with remote control via footswitch
Break switch mutes all channels for music playback between sets
Built-in USB recording interface with simple setup via Mac or PC
Great for live recording and perfect for home studios
Stream playback music for live or studio applications
Includes user-friendly Tracktion® recording software
Legendary Mackie “Built-Like-A-Tank” design
Solid steel chassis protects your investment
Tough ABS side protection
Robust internal multi-voltage power supply

Specification

Noise Characteristics
Mic In to Insert Send Out (Max Gain)	–125 dBu
All Outputs, Master Levels Unity, All Channel Levels Off	–80 dBu
Frequency Response
Mic Input to Any Output	20 Hz to 30 kHz (gain at unity, +0 dB / –1 dB)
Distortion (THD+N)
Mic In to Main Out	<0.03% (+4 dBu output)
Attenuation and Crosstalk
Adjacent Inputs @ 1 kHz	–90 dB
Inputs to Outputs @ 1 kHz	–80 dB
Fader Off @ 1 kHz	–75 dB
Mute Switch / Break Switch Mute @ 1 kHz	–90 dB
Common Mode Rejection Ratio (CMRR)
Mic In to Main Out	70 dB (max gain, 1 kHz)
Maximum Levels
All Inputs	+22 dBu
Main Out XLR	+28 dBu
All Other Outputs	+22 dBu
Impedances
Mic In	3.8 kΩ
Channel Insert Return	10 kΩ
All Other Inputs	≥ 20 kΩ
Tape Output	1 kΩ
Phones Output	25 Ω
All Other Outputs	120 Ω Unbalanced, 240 Ω Balanced
Equalization
Low	±15 dB @ 80 Hz
Mid	±15 dB @ 2.5 kHz
High	±15 dB @ 12 kHz
Low Cut Filter	18 dB/octave @ 100 Hz
Dimensions (H x W x D)
Product	3.6" (91 mm) x 14.6" (370 mm) x 14.1" (358 mm)
Shipping	7" (178 mm) x 18.8" (478 mm) x 18" (457 mm)
Weight
Net	9 lbs (4.1 kg)
Shipping	12 lbs (5.4 kg)
