Multi-Floor Medical Facility Sound Masking System with 200 Ceiling Speakers, Sound Masking Generator and Volume Controls for up to 50,000SF

Inside the Design

This sound masking, background music, and paging system includes 200 Pure Resonance Audio C3 3" micro ceiling speakers, the RMA500BT 500W rack-mount mixer amplifier, the SMG1 sound masking generator, and five VC100W 100W volume controls for a comprehensive, plug-and-play solution. Designed for multi-floor healthcare facilities, medical research centers, pharmaceutical companies, and more, this system enhances speech privacy, reduces distractions, and creates a comfortable atmosphere with high-quality background audio. It seamlessly integrates sound masking, paging, and music distribution while ensuring reliable operation with long-duty-cycle cooling features.

Sound System Features:

• This complete sound masking, background music, and paging system creates a comfortable, focused environment with seamless control and high-quality audio distribution, ideal for multi-floor healthcare facilities, research centers, and more
• The C3 micro ceiling speakers offer a compact, low-profile design with Easy-Mounting threaded rings for quick installation while delivering exceptional sound quality across up to 50,000 SF
• The RMA500BT 500W rack-mount mixer amplifier provides versatile control over sound masking, background music, and paging, with Bluetooth connectivity, multiple input options, and a forced air-cooling fan for extended operation
• The SMG1 sound masking generator delivers adjustable white, pink, and brown noise, allowing for customizable speech privacy and distraction reduction across diverse commercial environments
• The VC100W 100W Decora-style volume controls offer precise, localized adjustment of speaker levels for sound masking, background music, and paging across different rooms or zones

About the System Components

Pure Resonance Audio C3 Micro Ceiling Speakers

Designed for drop tile ceilings and featuring a sleek, intelligent design, the Pure Resonance Audio C3 3" micro ceiling speaker is compact and discreet. With an ultra-thin flat bezel and Easy-Mounting threaded mounting rings, the C3 blends seamlessly into ceiling tiles while providing excellent sound quality. Suitable for low to medium volume applications such as sound masking, background music, and paging in healthcare, corporate, and commercial environments. 70V and 8-ohm options offer flexible installation across diverse spaces.

Pure Resonance Audio RMA500BT Mixer Amplifier

The Pure Resonance Audio RMA500BT is a 500W rack-mount commercial mixer amplifier with Bluetooth connectivity, providing a simple-to-use yet powerful solution for sound masking, background music, and paging. This 5-channel amplifier supports 4 ohm and 70V speaker systems and includes multiple input options for microphones, media players, and emergency alerts. Equipped with a forced air-cooling system for high-demand applications, the RMA500BT ensures reliable performance over extended periods, making it ideal for medical, research, and corporate facilities.

Pure Resonance Audio SMG1 Sound Masking Generator

The Pure Resonance Audio SMG1 is a versatile sound masking generator that produces customizable sound masking to enhance speech privacy and reduce distractions. Offering adjustable white, brown, and pink noise options, the SMG1 integrates easily with commercial audio systems to create a more focused, comfortable environment in medical centers, offices, call centers, and other sensitive areas. Its compact, user-friendly design allows for simple setup and operation.

Pure Resonance Audio VC100W 100W DECORA 70V VOLUME CONTROL

The VC100W 100W white decora style 70V volume control is part of Pure Resonance Audio's family of speaker attenuators built to control volume for 25V/70V/100V sound systems. The VC100W features a durable plastic decora wall plate with a white finish and matching knob. This decora remote volume control provides excellent frequency response, low insertion loss, and reliable performance. The clean white decora style will fit in perfectly with decora wall plates for existing light switches and electrical outlets in your space.

System & Component Videos

Pure Resonance Audio C3 3" Micro Ceiling Speaker with Easy-Mounting Ring

• Compact and lightweight
• Smallest possible footprint while maintaining powerful quality sound
• Intelligent, stylish design that seamlessly blends into the ceiling
• Power tap transformer switch for selectable 8 ohm or 70V/100V operation for commercial applications
• Tap settings:
• 70V: 8 ohm, 1.5W, 3W, 5W
• 100V: 8 ohm, 3W, 6W, 10W
• Quick & easy installation with threaded mounting ring
• Perfect for background music in offices, retail stores, restaurants, hotels, foyers, and auxiliary spaces



Pure Resonance Audio RMA500BT 5-Channel 500W Bluetooth Rack Mount Mixer Amplifier

• 1 RU chassis, high-efficiency, and lightweight design
• MP3 media player supports USB, SD, Bluetooth and FM tuner
• Supports 1 emergency channel input, 2 AUX inputs, and 4 MIC inputs
• Bass and treble tone controls
• Level, overload, and protection light indicators provide short circuit, overload, and overheating protection
• Advanced high-performance power amplifier circuit
• 4-16Ω/70V speaker output
• 500W rated output power
• Forced air-cooling fan from front to back, starts up in a uniform speed rotation and then speeds up when the temperature increases to meet long working hours
• Remote control



Pure Resonance Audio SMG1 Sound Masking Generator

• Adjustable tone control to produce white, brown, or pink noise for customized environments
• Compact and lightweight design fits easily into any commercial setting
• Durable build for long-lasting, reliable operation
• Plug-and-play setup with mounting bracket, dual RCA, and ⅛" TRS outputs
• Enhances privacy for conversations and sensitive information
• Improves focus and reduces distractions to support productivity in workplaces

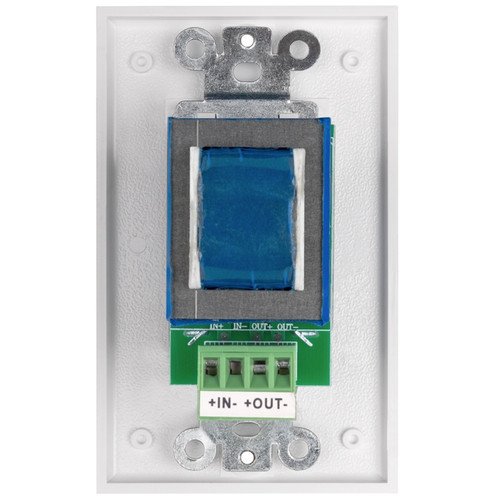

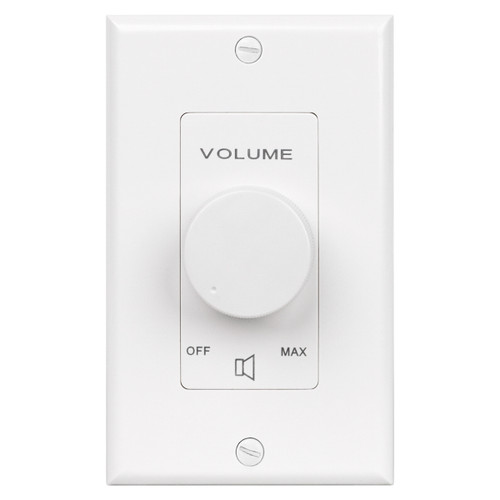

Pure Resonance Audio VC100W 100W Decora 70V Commercial Volume Control - White:

• Stylish appearance - Decora-style design includes a white plastic plate with matching knob
• Flexible - The VC100W is perfect for use with a 25V, 70V, or 100V speakers and distributed audio systems
• High-quality adjustment - Volume control attenuator provides excellent frequency response, low insertion loss, and reliable performance
• Smooth volume adjustment - Easily adjust to your desired volume level. No stop between maximum and off position to prevent switch damage
• Versatile - Provides high-quality audio level adjustment of single or multiple speaker lines
• Detachable euroblock connector - Removable phoenix-style terminal block with in-out throughputs accommodates up to 14G speaker wire

• (200) Pure Resonance Audio C3 3" Micro Ceiling Speakers with Easy-Mounting Ring
• (1) Pure Resonance Audio RMA500BT 5-Channel 500W Commercial Rack Mount Mixer Amplifier with Bluetooth 4 Ohm/70V
• (1) Pure Resonance Audio SMG1 Sound Masking Generator
• (5) Pure Resonance Audio VC100W 100W Decora 70V Commercial Volume Controls - White

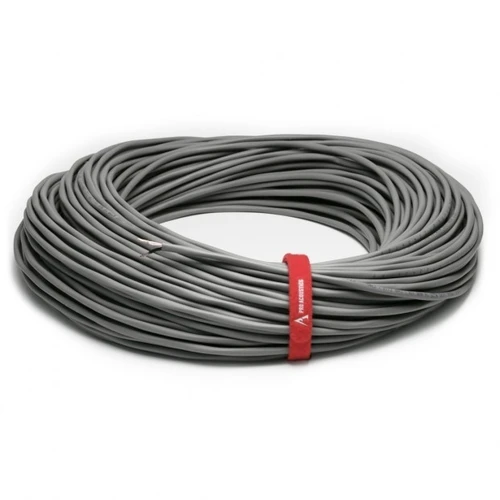

• (4000') West Penn 25226B 14/2 Plenum Speaker Wire
