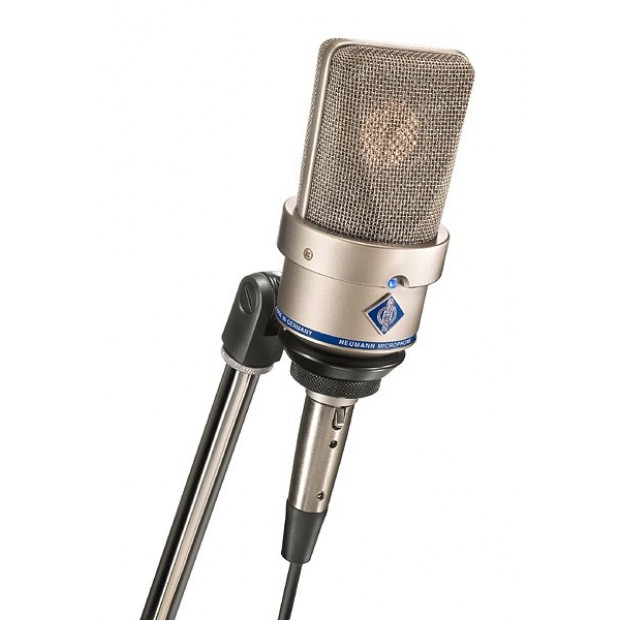

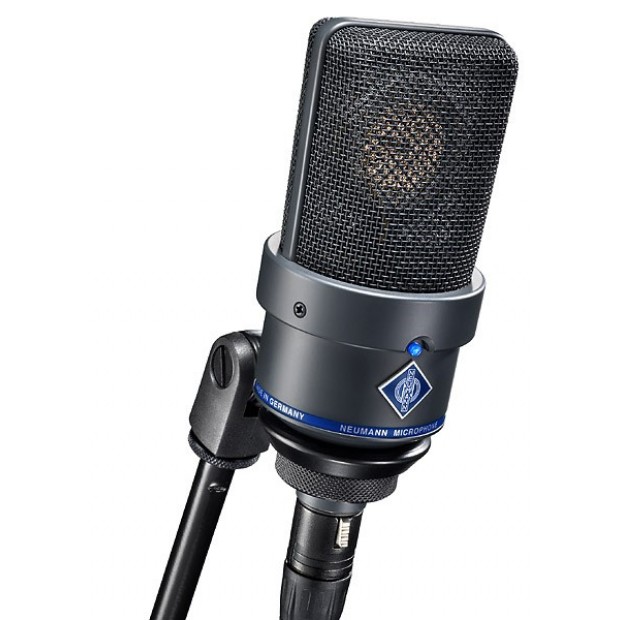

Neumann TLM 103 D Digital Studio Microphone (Discontinued)

Part # 008603
Model # TLM 103 D
Pure Neumann sound in the digital domain, for use with AES/EBU, AES 42 or S/PDIF. For many years the analog version of the TLM 103 D has played an important role for ambitious home recording and project studios.
Description

Details

This microphone has made the Neumann sound available to a broad spectrum of demanding audio engineers and musicians. The TLM 103 D provides all of the sound features of its analog counterpart, in addition to the advantages of digital circuit technology described above.

Features

Features

  • Large diaphragm cardioid microphone.

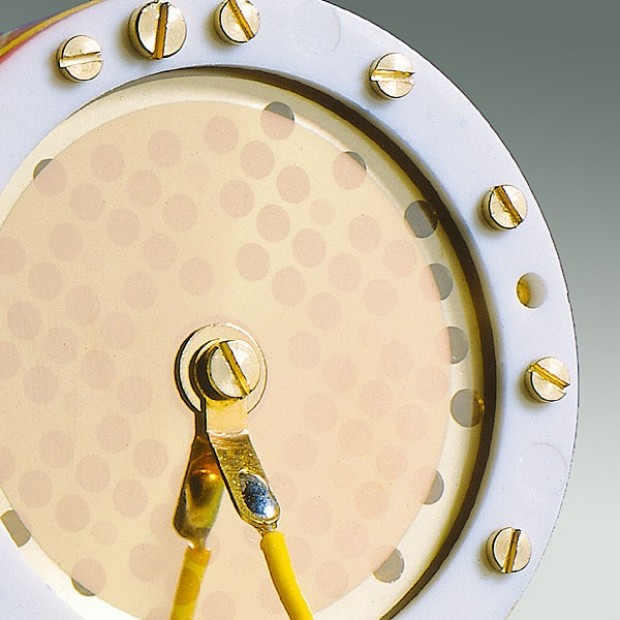

  • Pressure gradient transducer with with one-diaphragm capsule.

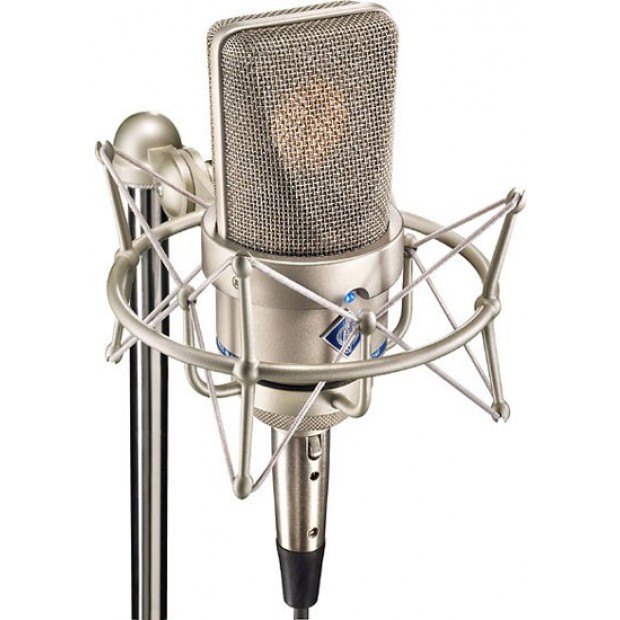

  • Includes swivel mount.
  • The legendary Neumann sound in the digital realm.
  • Pure Neumann capsule sound.
  • The satisfaction of recording the uncolored original, with no "bottlenecks" between the capsule and the recording system.
  • The guarantee of having one of the best A/D converters available.
  • Anti-clipping processing ensures handling safety, and reduces stress.
  • Reduced time requirements and personnel costs, particularly due to faster post production processing.
  • Lower investment costs, since separate A/D converters and preamps are no longer needed. This also means space and weight savings.
Specification
Acoustic transducerPressure gradient transducer
Directional characteristicCardioid
Frequency response20 Hz to 20 kHz
Free-field sensitivity–39 dBFS
Equivalent noise level, CCIR17.5 dB
Equivalent noise level, A-weighted7 dB-A
Signal-to-noise ratio, CCIR76.5 dB
Signal-to-noise ratio, A-weighted87 dB
Maximum SPL at 0 dBFS134 dBSPL
Dynamic range, A-weighted127 dB
Sampling rate48 kHz
Gain10 dB (variable with DMI-2)
Supply voltage range+6 V to +10.5 V
Current consumptionMax. 150 mA
Diameter60 mm
Length132 mm
Weight1.10 lbs (0.50 kg)
