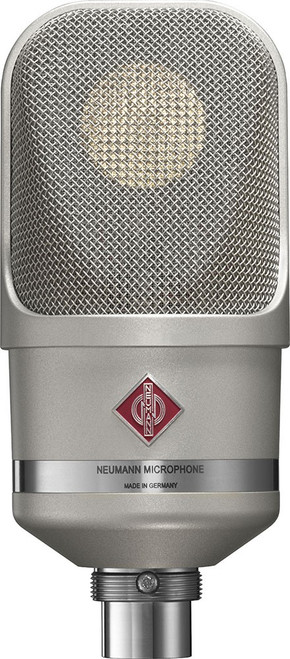

Neumann TLM 107 Studio Microphone

Part #:
008666
Model #:
TLM 107
MSRP: $1,899.00
$1,595.00
Availability:

Special Order (Return conditions apply)

Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Adding to cart… The item has been added
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL
The Neumann TLM 107 is a studio microphone. It provides sound without any coloration. Featuring equally impressive level stability and low self-noise, it captures everything from the softest whisper to thundering drums.

Description

Classic proportions combined with attractive styling and fresh ideas – the TLM 107 perfectly embodies the Neumann philosophy: Innovation based on tradition. Far from evoking vintage or retro nostalgia, the standard-setting TLM 107 represents an impressive, modern studio microphone. Its extensive performance spectrum and high-precision reproduction, very close to the original, make the TLM 107 universally applicable, opening up previously unknown design freedom possibilities in mixing and post-production.

The newly developed sound transducer, which was designed especially for this microphone, is impressive with its outstanding impulse fidelity. The great consistency of the five polar patterns, omnidirectional, cardioid and figure-8, with the intermediate patterns wide-angle cardioid and hypercardioid, is also unusual for a large-diaphragm capsule. The TLM 107 provides optimal sound not only for the cardioid setting; it also ensures maximum precision over the entire frequency range for all of the other directional characteristics. The sound always remains balanced, with an almost linear reproduction up to 8 kHz, and a slight boost in the highest frequencies that lends presence and freshness to the voice. Here particular attention has been paid to the natural reproduction of speech sounds, especially the critical “s” sound. The grille is acoustically optimized for low sensitivity to pop sounds. In addition, the sound transducer is edge-terminated, with both diaphragms at ground voltage. Specifically, this ensures considerably reduced sensitivity to dust and humidity.

Features

  • For studio, broadcasting and demanding home recording applications.
  • No-Compromise Sound Design.
  • Innovative Operating Concept.

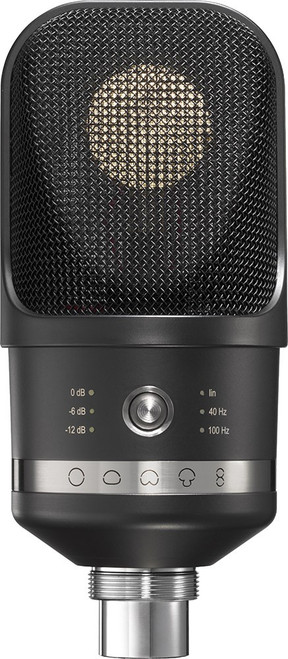

  • Available in the colors matte nickel and black.

Specifications

Acoustical operating principle Pressure gradient transducer

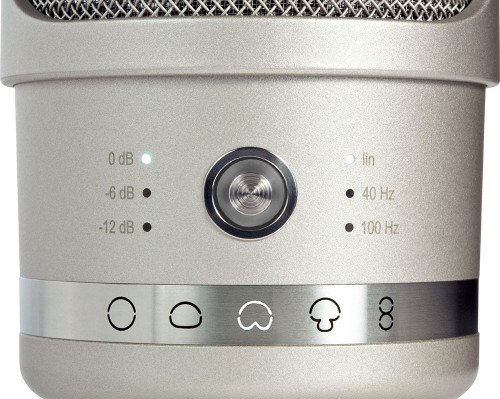

Directional pattern Omnidirectional, wide angle cardioid, cardioid, hypercardioid, figure-8
Frequency range 20 Hz - 20 kHz
Sensitivity at 1 kHz into 1 kohm 11 mV/Pa
Rated impedance 50 ohms
Rated load impedance 1 kohms
Equivalent noise level, CCIR 22 dB
Equivalent noise level, A-weighted 10 dB-A
Signal-to-noise ratio, CCIR (rel. 94 dB SPL) 72 dB
Signal-to-noise ratio, A-weighted (rel. 94 dB SPL) 84 dB
Maximum SPL for THD 0.5% 141 dB
with preattenuation -6 dB 147 dB
with preattenuation -12 dB 153 dB
Max. output voltage for THD < 0.5 % 10 dBu
Power Supply (IEC 61938) P48
Current consumption 3.2 mA
Required connector XLR 3 F
Diameter 64 mm
Length 145 mm
Weight 2.51 lbs (1.14 kg)
