NEXO P8-I 8" 2-Way Full-Range High-Output Fixed Installation Point Source Speaker with 100° x 100° Coverage - Black

Part #:
P8-I
Model #:
P8-I
MSRP: $1,999.99
$1,999.00
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Adding to cart… The item has been added
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL
The NEXO P8-I is a compact 8" 2-way coaxial installation point source speaker delivering up to 129 dB peak SPL with wide 100° x 100° coverage. Designed for permanent installs, it features passive operation, IP54-rated cable input, and a durable black enclosure.

Description

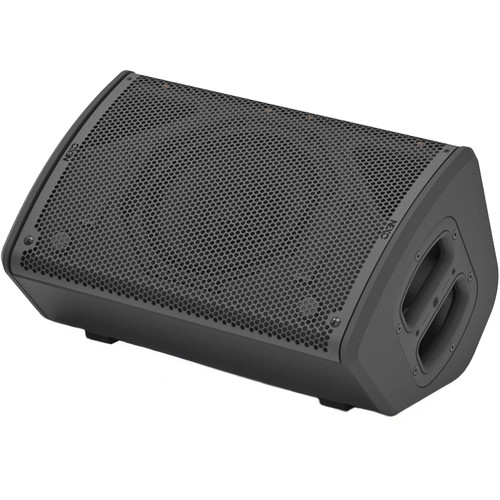

NEXO P8-I 8-Inch 2-Way Black Installed Point Source Speaker

The P8-I is a high-output fixed-installation point source loudspeaker designed for applications requiring compact size, wide coverage, and exceptional sound quality. Built around a custom coaxial 8" neodymium LF driver paired with a 1.5" diaphragm HF driver, the P8-I delivers smooth, coherent audio with up to 129 dB peak SPL, making it ideal for hospitality venues, houses of worship, retail spaces, and performance environments.

Optimized for permanent installation, the P8-I operates in passive mode and features a sealed cable-gland input with a 2-core audio cable to ensure an IP54 protection rating. The enclosure is constructed from custom 15 mm bent birch and poplar plywood, finished in durable black structural paint for a discreet and professional appearance. Dual computer-optimized shaped bass ports provide controlled low-frequency response with ultra-low distortion, while an advanced LF cooling system ensures reliable performance over long operating periods.

The P8-I incorporates NEXO's modular directivity system and is supplied with a wide 100° x 100° horn for even audience coverage. Optional rotatable 110° x 60° magnetic horns allow coverage to precisely adapt to room geometry, with dedicated NXAMP presets ensuring consistent tonal balance and phase alignment. Universal rigging points and a comprehensive range of installation accessories make the P8-I a versatile and reliable solution for high-performance fixed sound reinforcement.

Features

  • 8" 2-way full-range fixed installation point source speaker
  • Compact design with up to 129 dB peak SPL
  • Coaxial neodymium LF driver with 1.5" diaphragm HF driver
  • Wide 100° x 100° coverage with optional 110° x 60° horn
  • Passive-only operation optimized for permanent installs
  • IP54-rated cable-gland input with 2-core audio cable
  • Lightweight 15 mm bent birch and poplar plywood enclosure
  • Dual ultra-low distortion shaped bass ports
  • Advanced LF cooling system for high power handling
  • Durable black structural paint finish

Specifications

Frequency Response (-6 dB) 66 Hz - 20 kHz
Peak SPL (1m) 129 dB
Operating Voltage 40 Vrms (105V peak)
Coverage/HF Dispersion 100° x 100° (Standard), 110° x 60° (Optional Horn)
Crossover Frequency 66 Hz - 85 Hz - 120 Hz
Nominal Impedance
Components LF: 1x 8" - 8Ω; HF: 1x 1.5" - 8Ω - Neodymium driver
Material Baltic birch/Poplar plywood
Finish Black structural paint
Front Finish Black acoustic fabric fitted front steel front grille
Fittings Threated inserts on the back and on both sides for connection of mounting accessories
Connector Cable gland, supplied with a fixed cable 2 x 1.5 mm section, length 4 m
Dimensions (H x W x D) 16.7" (423 mm) x 10.9" (276 mm) x 9.8" (250 mm)
Weight 26.5 lbs (12 kg)
